502494 Series

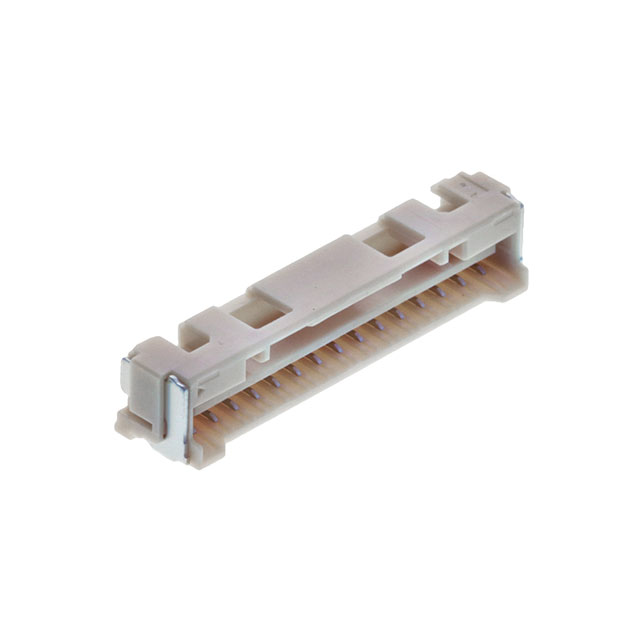

2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Right-Angle, 15 Circuits
Manufacturer: Molex
Catalog
2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Right-Angle, 15 Circuits
Beta
⌘K
2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Right-Angle, 15 Circuits
2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Right-Angle, 15 Circuits
2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Right-Angle, 15 Circuits
| Part | Termination | Insulation Height | Insulation Height | Fastening Type | Applications | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions Loaded | Contact Type | Connector Type | Contact Finish - Post | Material Flammability Rating | Mounting Type | Pitch - Mating [x] | Pitch - Mating [x] | Style | Features | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Solder | 0.27 " | 6.86 mm | Latch Holder | Automotive General Purpose Industrial Lighting Medical | 6 | 1 çm | 39.4 çin | 1 | Resin | 1 µm | 39.4 µin | -40 °C | 105 ░C | Copper Alloy | All | Forked | Receptacle | Tin | UL94 V-0 | Surface Mount Right Angle | 0.079 in | 2 mm | Board to Cable/Wire | Pick and Place Solder Retention | Natural |

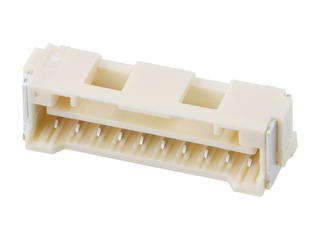

 Molex | Solder | 0.27 " | 6.86 mm | Latch Holder | Automotive General Purpose Industrial Lighting Medical | 10 | 1 çm | 39.4 çin | 1 | Resin | 1 µm | 39.4 µin | -40 °C | 105 ░C | Copper Alloy | All | Forked | Receptacle | Tin | UL94 V-0 | Surface Mount Right Angle | 0.079 in | 2 mm | Board to Cable/Wire | Pick and Place Solder Retention | Natural |
 Molex | Solder | 0.27 " | 6.86 mm | Latch Holder | Automotive General Purpose Industrial Lighting Medical | 15 | 1 çm | 39.4 çin | 1 | Resin | 1 µm | 39.4 µin | -40 °C | 105 ░C | Copper Alloy | All | Forked | Receptacle | Tin | UL94 V-0 | Surface Mount Right Angle | 0.079 in | 2 mm | Board to Cable/Wire | Pick and Place Solder Retention | Natural |

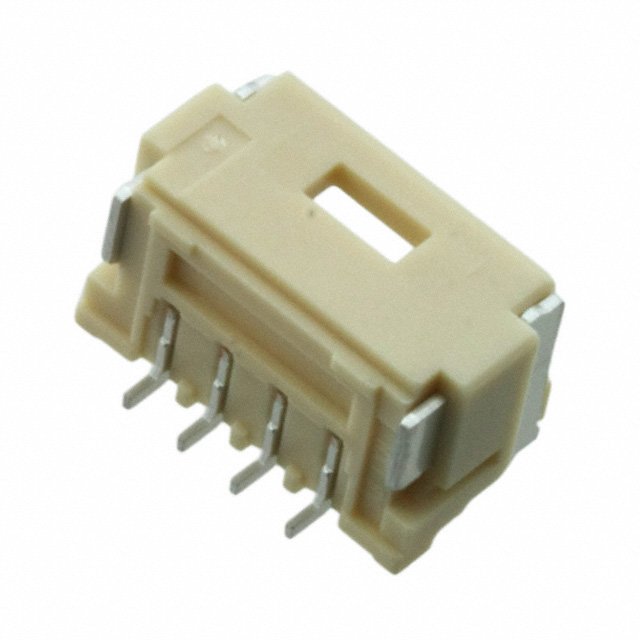

 Molex | Solder | 0.27 " | 6.86 mm | Latch Holder | Automotive General Purpose Industrial Lighting Medical | 4 | 1 çm | 39.4 çin | 1 | Resin | 1 µm | 39.4 µin | -40 °C | 105 ░C | Copper Alloy | All | Forked | Receptacle | Tin | UL94 V-0 | Surface Mount Right Angle | 0.079 in | 2 mm | Board to Cable/Wire | Pick and Place Solder Retention | Natural |
 Molex | Solder | 0.27 " | 6.86 mm | Latch Holder | Automotive General Purpose Industrial Lighting Medical | 2 | 1 çm | 39.4 çin | 1 | Resin | 1 µm | 39.4 µin | -40 °C | 105 ░C | Copper Alloy | All | Forked | Receptacle | Tin | UL94 V-0 | Surface Mount Right Angle | 0.079 in | 2 mm | Board to Cable/Wire | Pick and Place Solder Retention | Natural |

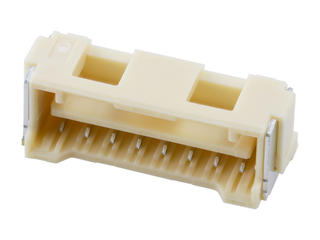

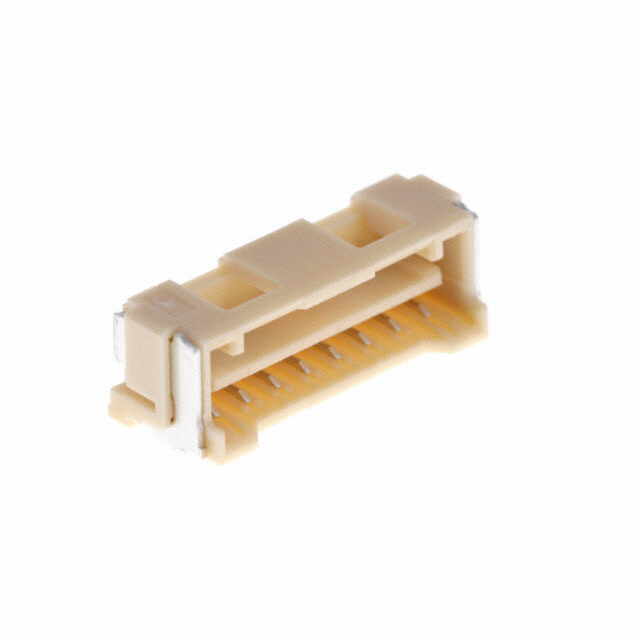

 Molex | Solder | 0.27 " | 6.86 mm | Latch Holder | Automotive General Purpose Industrial Lighting Medical | 8 | 1 çm | 39.4 çin | 1 | Resin | 1 µm | 39.4 µin | -40 °C | 105 ░C | Copper Alloy | All | Forked | Receptacle | Tin | UL94 V-0 | Surface Mount Right Angle | 0.079 in | 2 mm | Board to Cable/Wire | Pick and Place Solder Retention | Natural |
 Molex | Solder | 0.27 " | 6.86 mm | Latch Holder | Automotive General Purpose Industrial Lighting Medical | 1 çm | 39.4 çin | 1 | Resin | 1 µm | 39.4 µin | -40 °C | 105 ░C | Copper Alloy | All | Forked | Receptacle | Tin | UL94 V-0 | Surface Mount Right Angle | 0.079 in | 2 mm | Board to Cable/Wire | Pick and Place Solder Retention | Natural |
