628-W09 Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB RCPT 9POS VERT SLDR

Part	Color	Contact Material	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Material Flammability Rating	Number of Rows [custom]	Ingress Protection	Termination	Contact Type	Shell Material, Finish	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Connector Type	Connector Style	Flange Feature	Features	Contact Finish Thickness

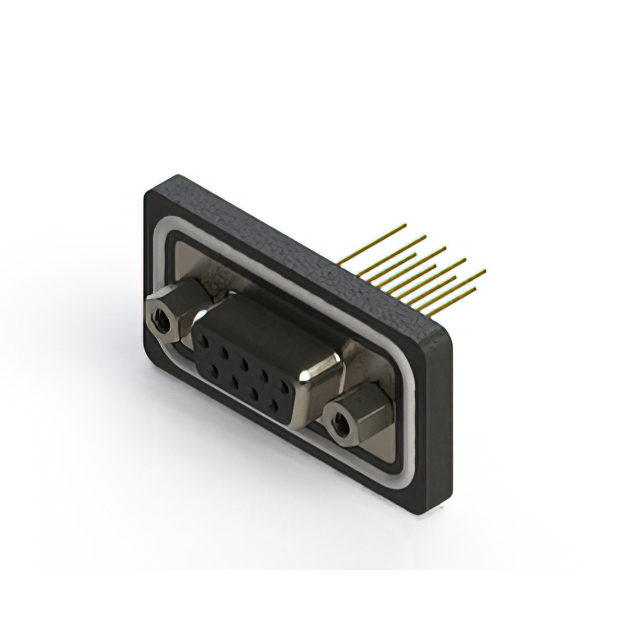

EDAC Inc. 628-W09-321-012	Black	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	9	UL94 V-0	2	IP67 - Dust Tight Waterproof	Solder	Signal and Power	Nickel Plated Steel	5 A	1	DE E	0.38 µm	15 µin	Gold	Through Hole	Receptacle Female Sockets	D-Sub	4-40

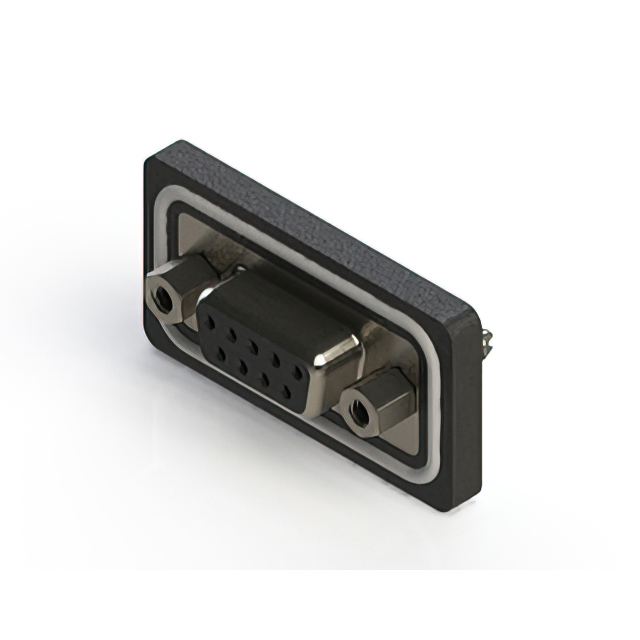

EDAC Inc. 628-W09-320-013	Black	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	9	UL94 V-0	2	IP67 - Dust Tight Waterproof	Solder	Signal and Power	Nickel Plated Steel	5 A	1	DE E	0.38 µm	15 µin	Gold	Through Hole	Receptacle Female Sockets	D-Sub	4-40	Board Lock
EDAC Inc. 628-W09-220-013	Black	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	25	UL94 V-0	2	IP67 - Dust Tight Waterproof	Solder	Signal and Power	Nickel Plated Steel	5 A	1	DE E			Gold	Panel Mount Through Hole	Receptacle Female Sockets	D-Sub	4-40 Mating Side Female Screwlock		Flash

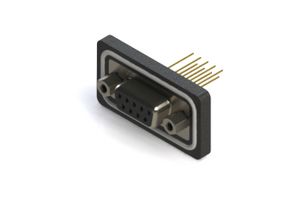

EDAC Inc. 628-W09-221-012	Black	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	9	UL94 V-0	2	IP67 - Dust Tight Waterproof	Solder	Signal and Power	Nickel Plated Steel	5 A	1	DE E			Gold	Through Hole	Receptacle Female Sockets	D-Sub	4-40		Flash
EDAC Inc. 628-W09-222-012	Black	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	9 25	UL94 V-0	2	IP67 - Dust Tight Waterproof		Signal and Power	Nickel Plated Steel	5 A	1	DE E			Gold	Free Hanging (In-Line)	Receptacle Female Sockets	D-Sub	4-40 Mating Side Female Screwlock		Flash

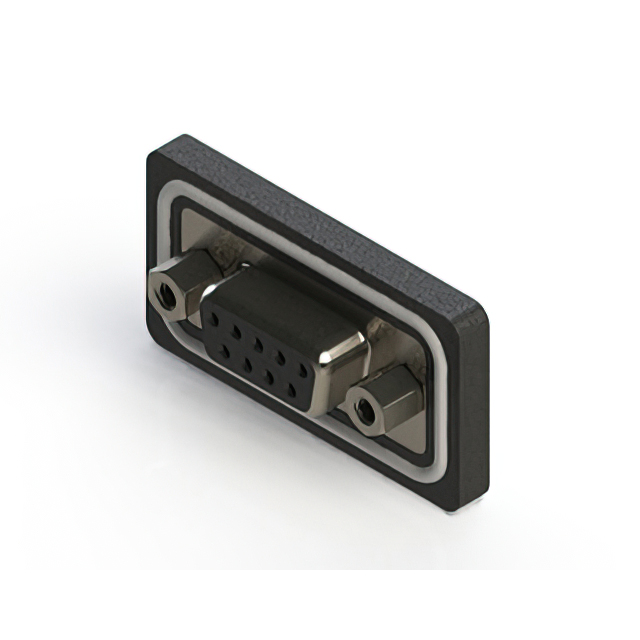

EDAC Inc. 628-W09-322-012	Black	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	9	UL94 V-0	2	IP67 - Dust Tight Waterproof		Signal and Power	Nickel Plated Steel	5 A	1	DE E	0.38 µm	15 µin	Gold	Free Hanging (In-Line)	Receptacle Female Sockets	D-Sub	4-40
EDAC Inc. 628-W09-622-012	Black	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	9	UL94 V-0	2	IP67 - Dust Tight Waterproof		Signal and Power	Nickel Plated Steel	5 A	1	DE E	0.76 Ám	30 Áin	Gold	Free Hanging (In-Line)	Receptacle Female Sockets	D-Sub	4-40
EDAC Inc. 628-W09-220-012	Black	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	25	UL94 V-0	2	IP67 - Dust Tight Waterproof	Solder	Signal and Power	Nickel Plated Steel	5 A	1	DE E			Gold	Panel Mount Through Hole	Receptacle Female Sockets	D-Sub	4-40 Mating Side Female Screwlock		Flash
