10085901 Series

Catalog

CONN FFC BOTTOM 50POS 0.5MM R/A

Part	Actuator Color	Current Rating (Amps)	Mating Cycles	Contact Finish Thickness	Housing Color	Contact Finish	Cable End Type	Material Flammability Rating	Number of Positions	Locking Feature	Flat Flex Type	Actuator Material	Voltage Rating	Contact Material	FFC, FCB Thickness	Pitch	Pitch	Termination	Housing Material	Connector/Contact Type	Mounting Type	Height Above Board	Height Above Board	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Features

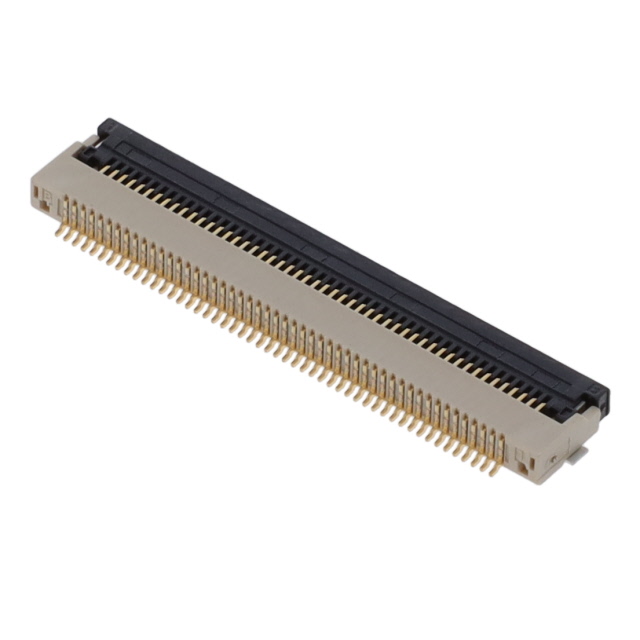

Amphenol ICC (FCI) 10085901-50115EHLF	Beige	0.5 A	20	Flash	Natural	Gold	Tapered	UL94 V-0	50	Slide Lock	FFC FPC	Thermoplastic Halogen Free	50 V	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Solder	Thermoplastic Halogen Free	Contacts Bottom	Right Angle Surface Mount	2 mm	0.079 in	-55 C	85 °C
Amphenol ICC (FCI) 10085901-64115ELF	Brown	0.5 A	20	Flash	Natural	Gold	Notched Tapered	UL94 V-0	64	Flip Lock	FFC FPC	Thermoplastic	50 V	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Solder	Thermoplastic	Contacts Bottom	Right Angle Surface Mount	2 mm	0.079 in	-55 C	85 °C
Amphenol ICC (FCI) 10085901-70115ELF	Brown	0.5 A	20	Flash	Natural	Gold	Notched Tapered	UL94 V-0	70	Flip Lock	FFC FPC	Thermoplastic	50 V	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Solder	Thermoplastic	Contacts Bottom	Right Angle Surface Mount	2 mm	0.079 in	-55 C	85 °C
Amphenol ICC (FCI) 10085901-60115ELF	Black	0.5 A	20	Flash	Natural	Gold	Straight Tapered	UL94 V-0	60	Slide Lock	FFC FPC	Thermoplastic	50 V	Copper Alloy		0.02 "	0.5 mm	Solder	Thermoplastic	Contacts Bottom	Right Angle Surface Mount	2 mm	0.079 in	-55 C	85 °C	0.3 mm	0.33 mm
Amphenol ICC (FCI) 10085901-60115EHLF	Beige	0.5 A	20	Flash	Natural	Gold	Tapered	UL94 V-0	60	Slide Lock	FFC FPC	Thermoplastic Halogen Free	50 V	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Solder	Thermoplastic Halogen Free	Contacts Bottom	Right Angle Surface Mount	2 mm	0.079 in	-55 C	85 °C

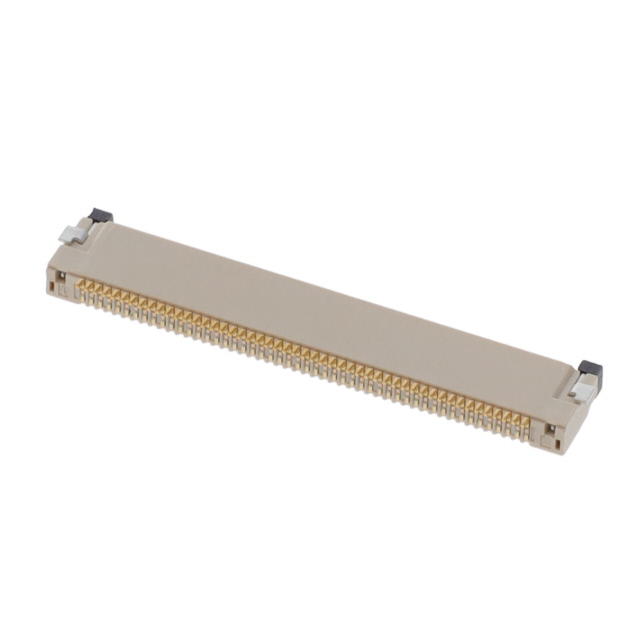

Amphenol ICC (FCI) 10085901-5015EHLF	Black	0.5 A	20	Flash	Natural	Gold	Straight Tapered	UL94 V-0	50	Slide Lock	FFC FPC	Thermoplastic Halogen Free	50 V	Copper Alloy		0.02 "	0.5 mm	Solder	Thermoplastic Halogen Free	Contacts Bottom	Right Angle Surface Mount	2 mm	0.079 in	-55 C	85 °C	0.3 mm	0.33 mm
Amphenol ICC (FCI) 10085901-70215ELF	Brown	0.5 A	20	Flash	Natural	Gold	Notched Tapered	UL94 V-0	70	Flip Lock	FFC FPC	Thermoplastic	50 V	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Solder	Thermoplastic	Contacts Bottom	Right Angle Surface Mount	2 mm	0.079 in	-55 C	85 °C			Pick and Place Cap Zero Insertion Force (ZIF)
Amphenol ICC (FCI) 10085901-6015EHLF	Beige	0.5 A	20	Flash	Natural	Gold	Tapered	UL94 V-0	60	Slide Lock	FFC FPC	Thermoplastic Halogen Free	50 V	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Solder	Thermoplastic Halogen Free	Contacts Bottom	Right Angle Surface Mount	2 mm	0.079 in	-55 C	85 °C
Amphenol ICC (FCI) 10085901-5015ELF	Brown	0.5 A	20	Flash	Natural	Gold	Straight Tapered	UL94 V-0	50	Flip Lock	FFC FPC	Thermoplastic	50 V	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Solder	Thermoplastic	Contacts Bottom	Right Angle Surface Mount	2 mm	0.079 in	-55 C	85 °C
