EX-32 Series

Catalog

SENSOR REFLECTIVE 50MM PNP

Part	Sensing Distance	Sensing Distance	Cable Length	Cable Length	Connection Method	Output Configuration	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Light Source

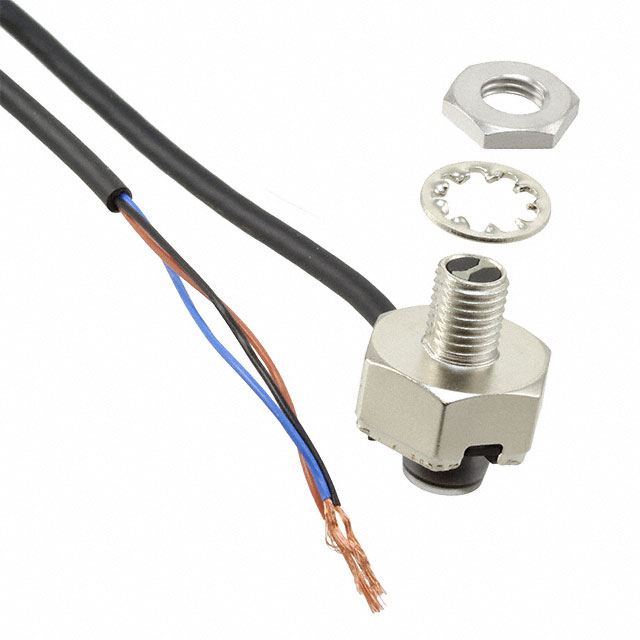

Panasonic Industrial Automation Sales EX-32B-PN	50 mm	1.969 in	78.74 in	2 m	Cable	PNP - Open Collector/Dark-ON	500 µs	55 °C	-25 °C	Diffuse Reflective	12 V	24 V	IP67	Red LED

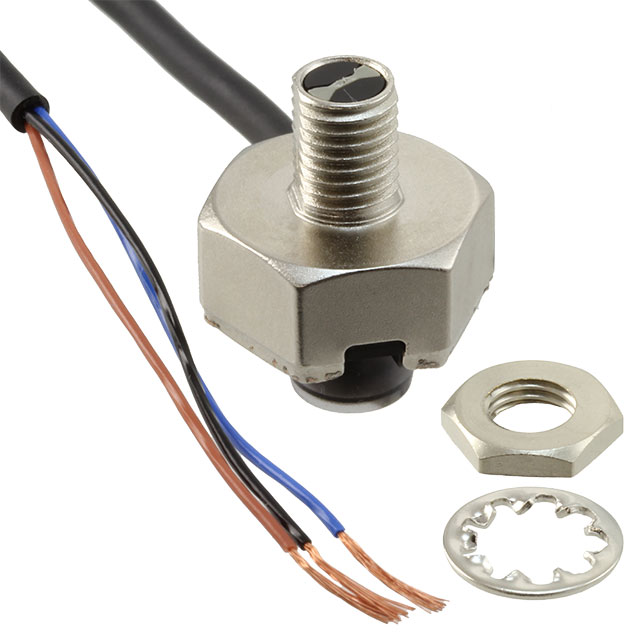

Panasonic Industrial Automation Sales EX-32B	50 mm	1.969 in	78.74 in	2 m	Cable	NPN - Open Collector/Dark-ON	500 µs	55 °C	-25 °C	Diffuse Reflective	12 V	24 V	IP67	Red LED
Panasonic Industrial Automation Sales EX-32B-C5	50 mm	1.969 in	196.85 in	5 m	Cable	NPN - Open Collector/Dark-ON	500 µs	55 °C	-25 °C	Diffuse Reflective	12 V	24 V	IP67	Red LED

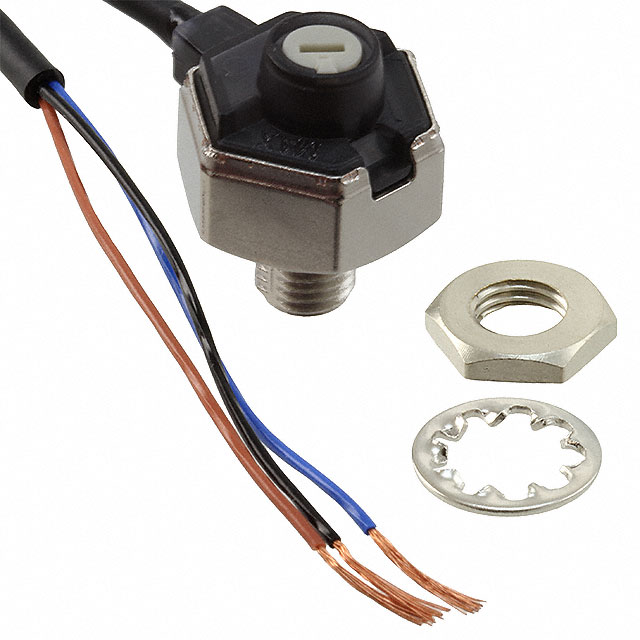

Panasonic Industrial Automation Sales EX-32A	50 mm	1.969 in	78.74 in	2 m	Cable	NPN - Open Collector/Light-ON	500 µs	55 °C	-25 °C	Diffuse Reflective	12 V	24 V	IP67	Red LED
