0286-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

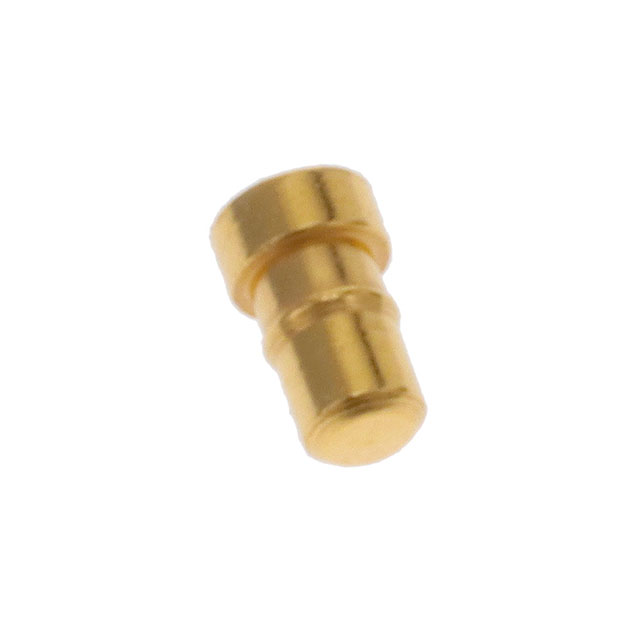

CONN PC PIN CIRC 0.053DIA GOLD
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Length - Overall | Length - Overall | Terminal Type | Contact Finish | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Termination | Insulation | Length - Above Flange | Length - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Style | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 1.45 mm | 0.057 in | Brass Alloy | 2.92 mm | 0.115 in | PC Pin | Gold | Through Hole | 0.053 in | 1.35 mm | Press-Fit | Non-Insulated | 2.13 mm | 0.084 in | 0.072 " | 1.83 mm | Single End | 50 µin | 1.27 µm |
 Mill-Max Manufacturing Corp. | 1.45 mm | 0.057 in | Brass Alloy | 2.92 mm | 0.115 in | PC Pin | Gold | Through Hole | 0.053 in | 1.35 mm | Press-Fit | Non-Insulated | 2.13 mm | 0.084 in | 0.072 " | 1.83 mm | Single End | 20 µin | 0.51 µm |
