1986717 Series

Catalog

TERM BLOCK HDR 8POS VERT 3.5MM

Part	Voltage - UL	Color	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Type	Pitch [x]	Pitch [x]	Housing Material	Mounting Type	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Positions Per Level	Header Orientation	Number of Levels	Contact Material	Current - UL	Material Flammability Rating	Number of Positions
TE Connectivity Raychem Cable Protection 1986717-8	150 V	Green	Solder	-40 °C	110 °C	Header Male Pins Unshrouded	3.5 mm	0.138 in	Polyamide (PA) Nylon	Through Hole	Tin	3.5 mm	0.138 in	0.079 in	2 mm	8	Vertical	1	Copper Alloy	2 A	UL94 V-0	8

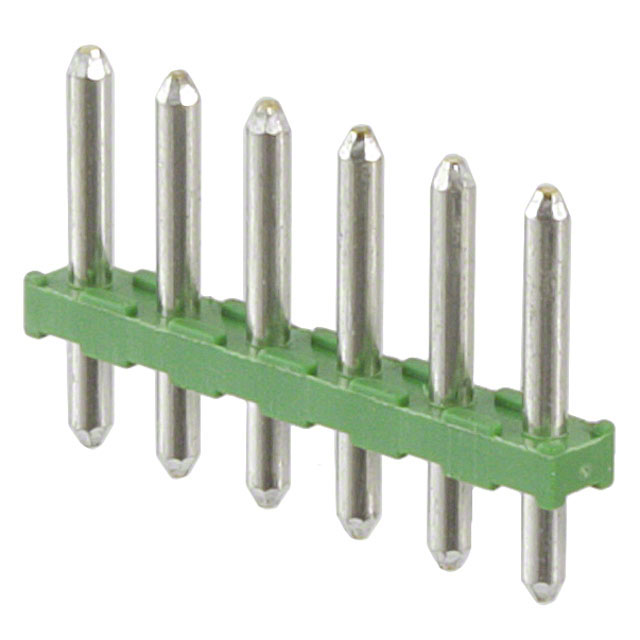

TE Connectivity Raychem Cable Protection 1986717-6	150 V	Green	Solder	-40 °C	110 °C	Header Male Pins Unshrouded	3.5 mm	0.138 in	Polyamide (PA) Nylon	Through Hole	Tin	3.5 mm	0.138 in	0.079 in	2 mm	6	Vertical	1	Copper Alloy	2 A	UL94 V-0	6

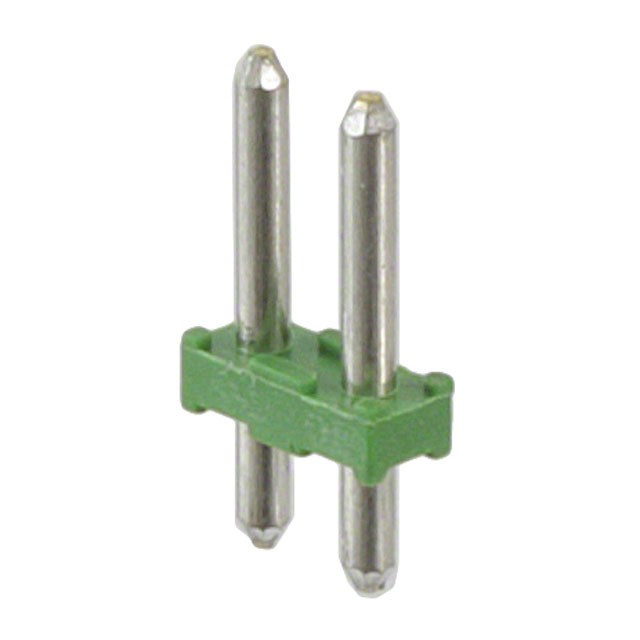

TE Connectivity Raychem Cable Protection 1986717-2	150 V	Green	Solder	-40 °C	110 °C	Header Male Pins Unshrouded	3.5 mm	0.138 in	Polyamide (PA) Nylon	Through Hole	Tin	3.5 mm	0.138 in	0.079 in	2 mm	2	Vertical	1	Copper Alloy	2 A	UL94 V-0	2

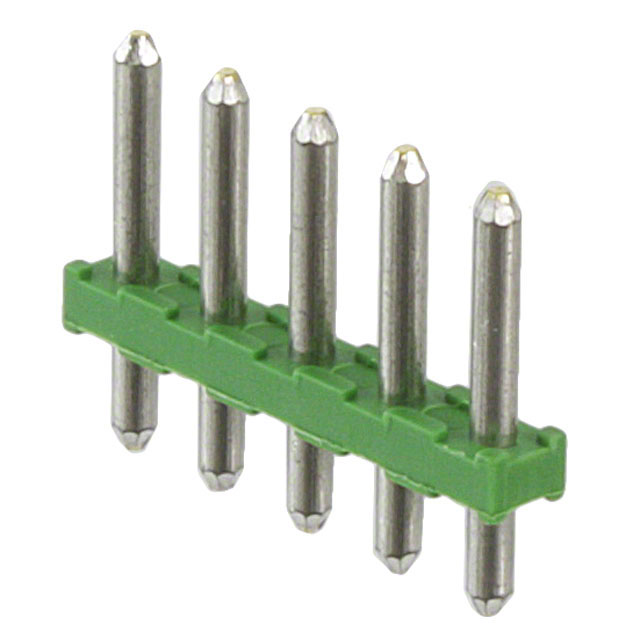

TE Connectivity Raychem Cable Protection 1986717-5	150 V	Green	Solder	-40 °C	110 °C	Header Male Pins Unshrouded	3.5 mm	0.138 in	Polyamide (PA) Nylon	Through Hole	Tin	3.5 mm	0.138 in	0.079 in	2 mm	5	Vertical	1	Copper Alloy	2 A	UL94 V-0
