19300320 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM BODY, 2 LEVER, 32B

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Thread Size	Style	Size	Lock Location	Housing Material	Housing Finish	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Color	Features
HARTING 19300320529	94 mm	3.248 "	94 mm	82.5 mm	3.701 in	3.701 "	M50	Side Entry	32 B	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Hood	Gray

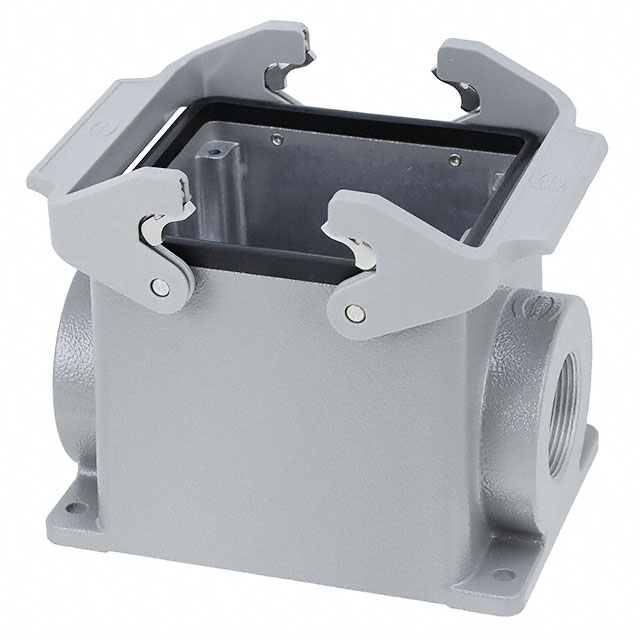

HARTING 19300320272	90 mm	3.425 in	125 mm	87 mm	4.921 in	3.543 "	M32	Side Entry	32 B	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Base - Box Mount	Gray	Feed Through

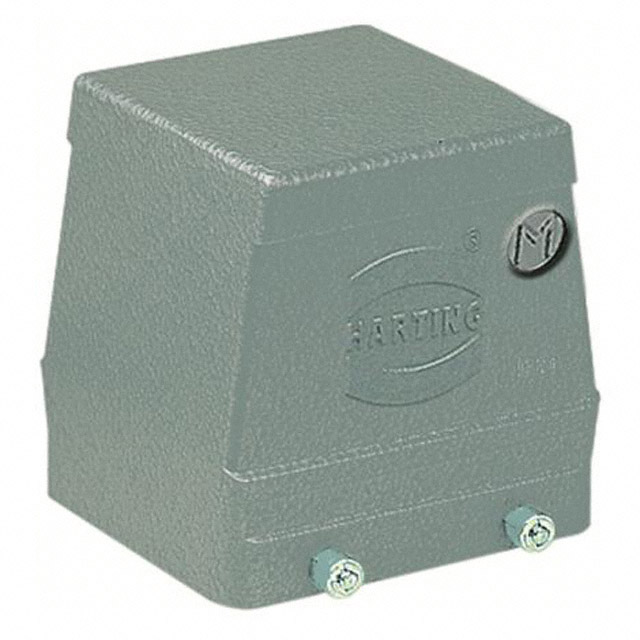

HARTING 19300320527	94 mm	3.248 "	94 mm	82.5 mm	3.701 in	3.701 "	M32	Side Entry	32 B	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Hood	Gray
HARTING 19300320232	90.1 mm	3.425 in	125 mm	87 mm	4.921 in	3.547 "	M32	Side Entry	32 B	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Base - Box Mount	Gray	Feed Through

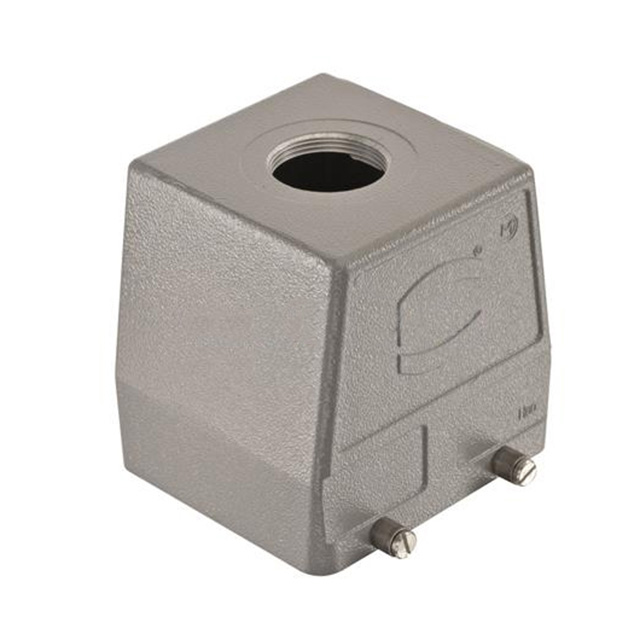

HARTING 19300320428	94 mm	3.248 "	94 mm	82.5 mm	3.701 in	3.701 "		Top Entry	32 B	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Hood	Gray

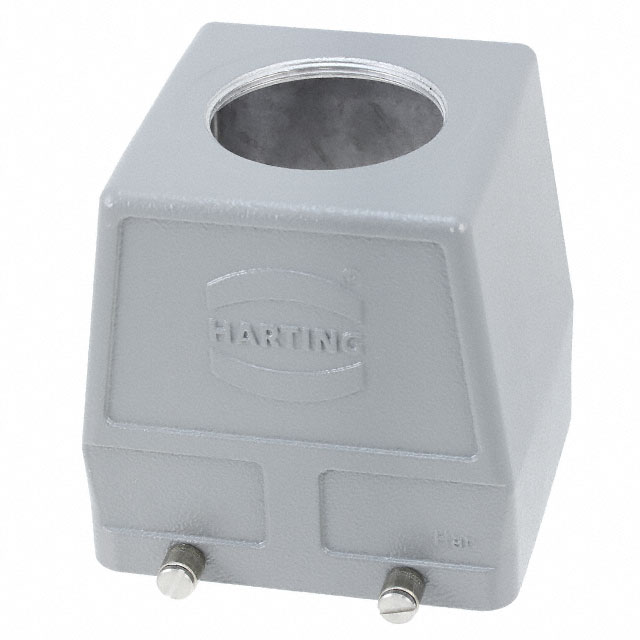

HARTING 19300320429	94 mm	3.248 "	94 mm	82.5 mm	3.701 in	3.701 "	M50	Top Entry	32 B	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Hood	Gray

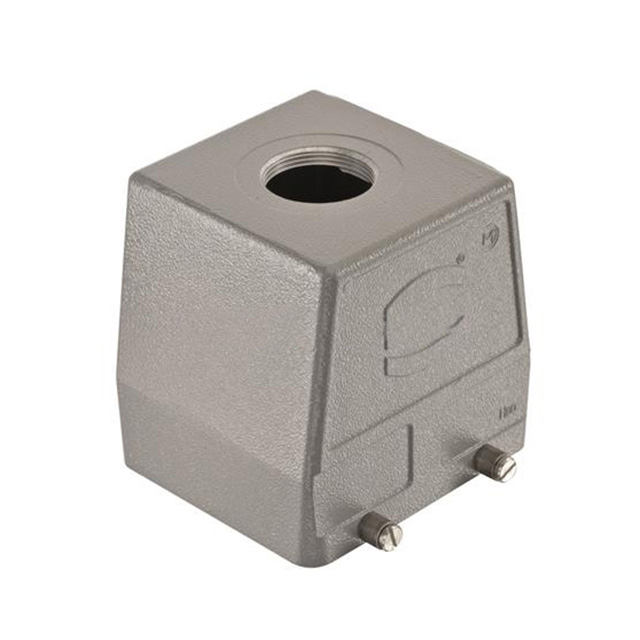

HARTING 19300320427	94 mm	3.248 "	94 mm	82.5 mm	3.701 in	3.701 "	M32	Top Entry	32 B	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Hood	Gray
