79254 Series

Catalog

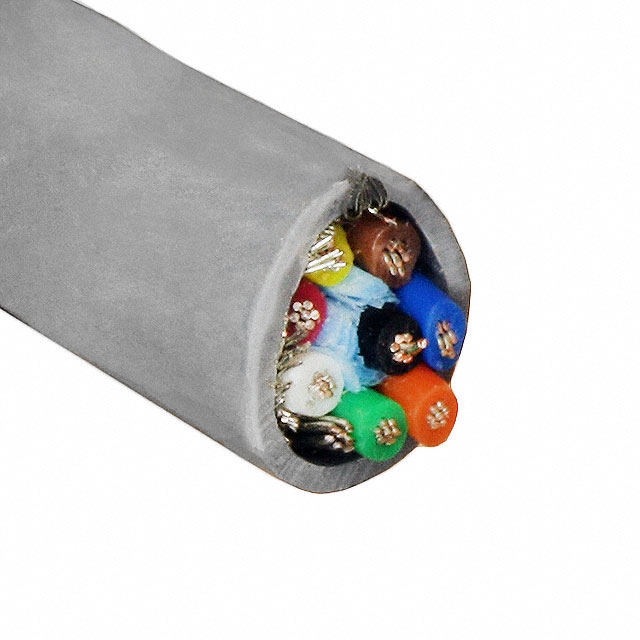

CABLE 8COND 24AWG SHLD

Part	Shield Material	Shield Coverage	Conductor Insulation	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length	Length	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Features	Number of Conductors [custom]	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Ratings	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 79254 SL001	Copper Tinned Suprashield®	70 % 100 %	Polyphenylene Ether Modified (mPPE)	Slate	-40 C	105 ░C	Copper Tinned	304.8 m	1000 ft	600 V	0.27 "	6.86 mm	24 AWG	Biological Compatibility	8	Braid Foil	0.035 in	0.889 mm	Multi-Conductor	ISO 10993	Polyphenylene Ether Modified (mPPE)
ALPHA WIRE 79254 SL005	Copper Tinned Suprashield®	70 % 100 %	Polyphenylene Ether Modified (mPPE)	Slate	-40 C	105 ░C	Copper Tinned			600 V	0.27 "	6.86 mm	24 AWG	Biological Compatibility	8	Braid Foil	0.035 in	0.889 mm	Multi-Conductor	ISO 10993	Polyphenylene Ether Modified (mPPE)	100 ft	30.5 m
ALPHA WIRE 79254 SL199	Copper Tinned Suprashield®	70 % 100 %	Polyphenylene Ether Modified (mPPE)	Slate	-40 C	105 ░C	Copper Tinned			600 V	0.27 "	6.86 mm	24 AWG	Biological Compatibility	8	Braid Foil	0.035 in	0.889 mm	Multi-Conductor	ISO 10993	Polyphenylene Ether Modified (mPPE)
