AVE350 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K

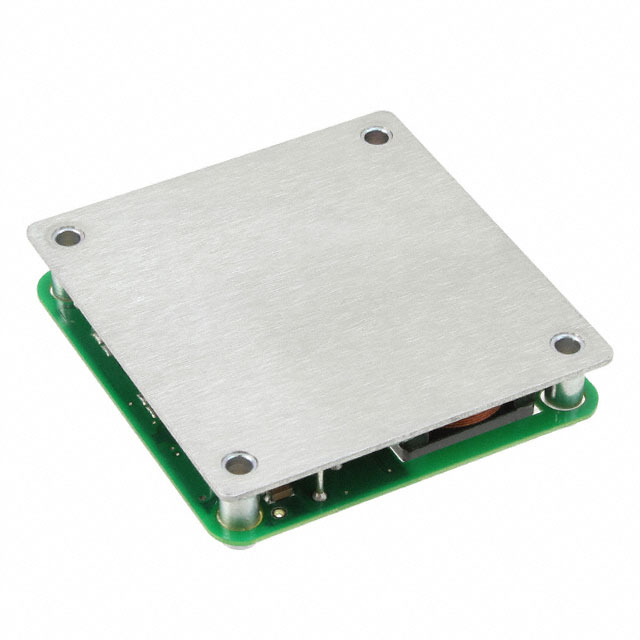

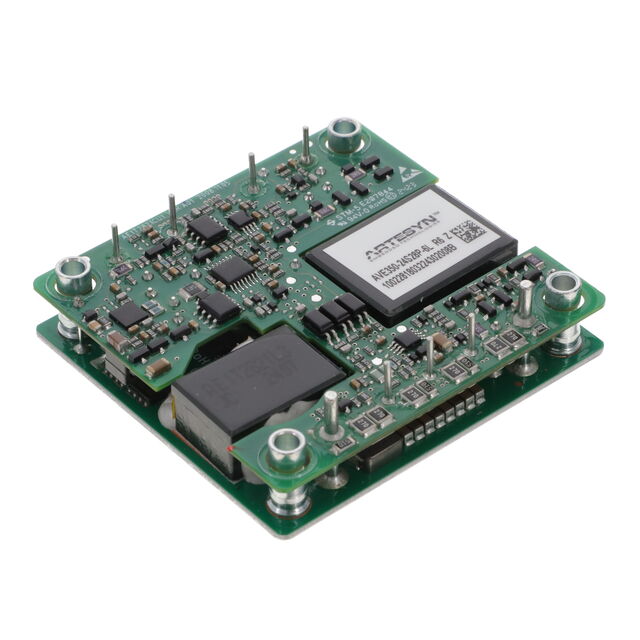

350W, 18 - 36VIN, SINGLE, 28V@12.5A, 93% EFF, HALF BRICK ALUMINUM BOARD, NEGATIVE LOGIC/PIN LENGTH:3.8MM
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Current - Output (Max) [Max] | Mounting Type | Voltage - Input (Min) [Min] | Power (Watts) | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Input (Max) [Max] | Package / Case | Voltage - Output 1 | Features | Number of Outputs | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 57.9 mm | 2.28 in | 2.4 in | 0.5 in | 61 mm | 12.7 mm | 1.5 kV | 12.5 A | Through Hole | 18 V | 350 W | 92.7 % | 85 °C | -40 C | ITE (Commercial) | 36 V | 9-DIP Module 1/2 Brick | 28 V | OCP OTP OVP Remote On/Off UVLO | 1 | Isolated Module |
 ARTESYN / Advanced Energy | 57.9 mm | 2.28 in | 2.4 in | 0.5 in | 61 mm | 12.7 mm | 1.5 kV | 12.5 A | Through Hole | 36 V | 350 W | 93.5 % | 85 °C | -40 C | ITE (Commercial) | 75 V | 9-DIP Module 1/2 Brick | 28 V | OCP OTP OVP Remote On/Off UVLO | 1 | Isolated Module |
