25_SMA-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
25_SMA-50-2-6/111_NE
| Part | Body Material | Mating Cycles | Center Contact Plating | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Mounting Type | Frequency - Max [Max] | Housing Color | Connector Type | Contact Termination | Fastening Type | Shield Termination | Connector Style | Impedance | Mounting Feature | Number of Ports | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

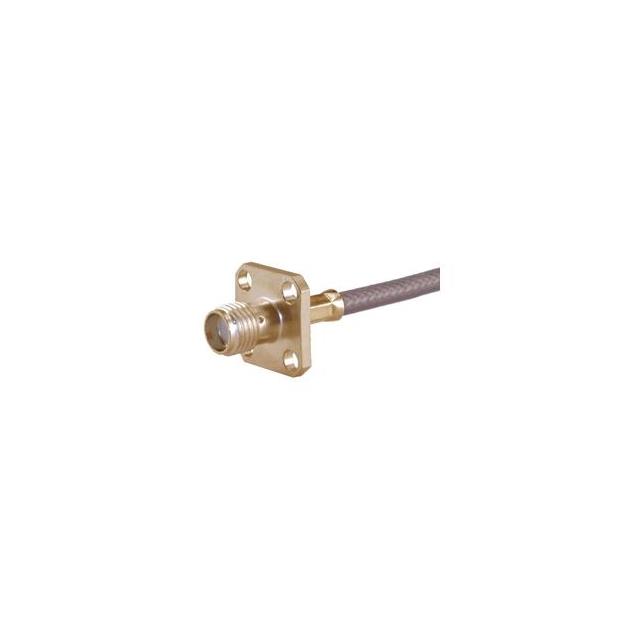

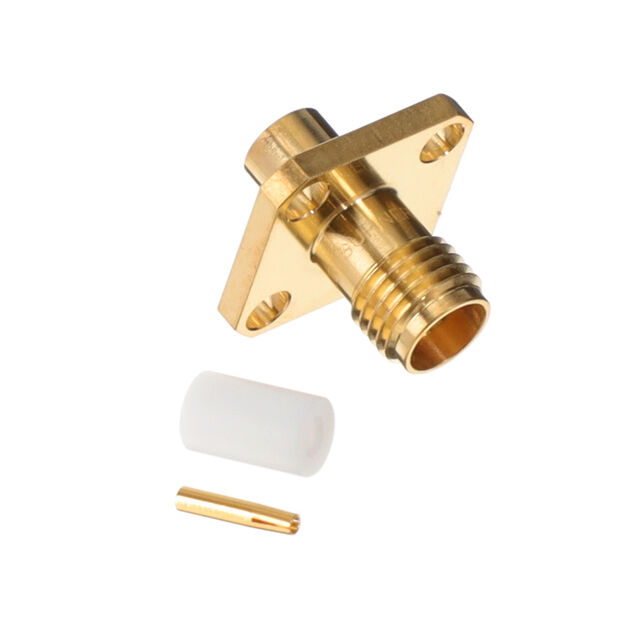

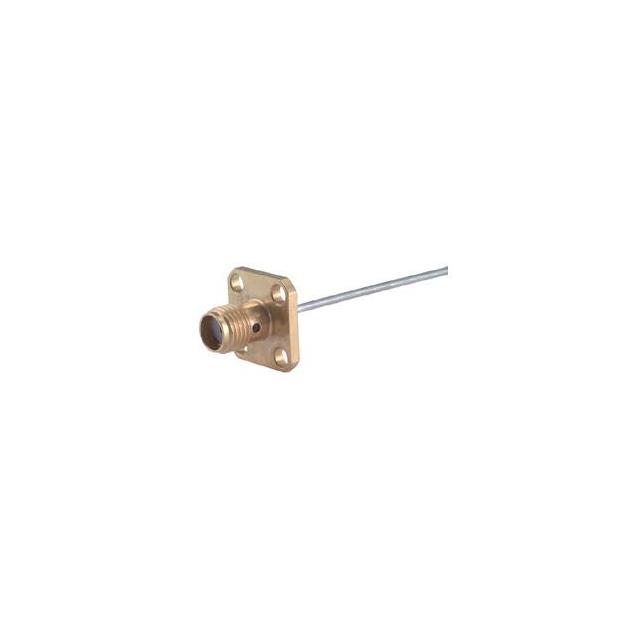

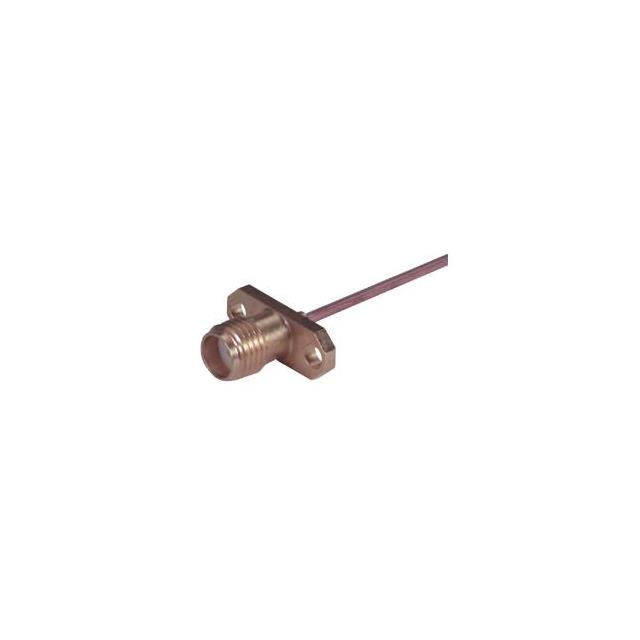

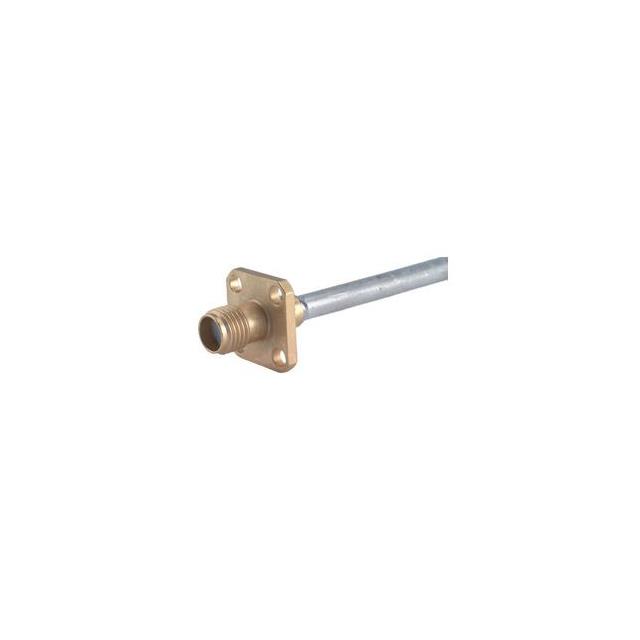

 Huber+Suhner, Inc. | Beryllium Copper | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Beryllium Copper | Panel Mount | 18 GHz | Gold | Female Socket Jack | Solder | Threaded | Crimp | SMA | 50 Ohms | Flange | 1 | RD-316 | |
 Huber+Suhner, Inc. | Beryllium Copper | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 125 °C | Beryllium Copper | Panel Mount | 18 GHz | Gold | Female Socket Jack | Solder | Threaded | Solder | SMA | 50 Ohms | Flange | 1 | 0.047 in | |
 Huber+Suhner, Inc. | Beryllium Copper | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Beryllium Copper | Panel Mount | 18 GHz | Gold | Female Socket Jack | Solder | Threaded | Crimp | SMA | 50 Ohms | Flange | 1 | 188 316 RG-174 | |
 Huber+Suhner, Inc. | Beryllium Copper | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Beryllium Copper | Panel Mount | 18 GHz | Gold | Female Socket Jack | Solder | Threaded | Solder | SMA | 50 Ohms | Flange | 1 | RG-405 (.086 Semi Rigid) | |
 Huber+Suhner, Inc. | Beryllium Copper | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Beryllium Copper | Panel Mount | 18 GHz | Gold | Female Socket Jack | Solder | Threaded | Solder | SMA | 50 Ohms | Flange | 1 | RG-141 | |
Huber+Suhner, Inc. | Beryllium Copper | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Beryllium Copper | Panel Mount | 18 GHz | Gold | Female Socket Jack | Solder | Threaded | Crimp | SMA | 50 Ohms | Flange | 1 | 188 316 RG-174 | |
 Huber+Suhner, Inc. | Beryllium Copper | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 125 °C | Beryllium Copper | Panel Mount | 18 GHz | Gold | Female Socket Jack | Solder | Threaded | Solder | SMA | 50 Ohms | Flange | 1 | 0.047 in | |
 Huber+Suhner, Inc. | Beryllium Copper | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Beryllium Copper | Panel Mount | 18 GHz | Gold | Female Socket Jack | Solder | Threaded | Solder | SMA | 50 Ohms | Flange | 1 | 0.047 in | |
 Huber+Suhner, Inc. | Beryllium Copper | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Beryllium Copper | Panel Mount | 18 GHz | Gold | Female Socket Jack | Solder | Threaded | Solder | SMA | 50 Ohms | Flange | 1 | RG-141 | |
 Huber+Suhner, Inc. | Beryllium Copper | 500 | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Beryllium Copper | Panel Mount | 18 GHz | Gold | Female Socket Jack | Solder | Threaded | Solder | SMA | 50 Ohms | Flange | 1 | RG-141 |
