2238198 Series

Catalog

FASTON 187 STD REC STR F-CR 20-1

Part	Insulation	Mounting Type	Tab Thickness	Tab Thickness	Contact Material	Termination	Tab Length	Tab Length	Terminal Type	Tab Width	Tab Width	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Contact Finish	Gender

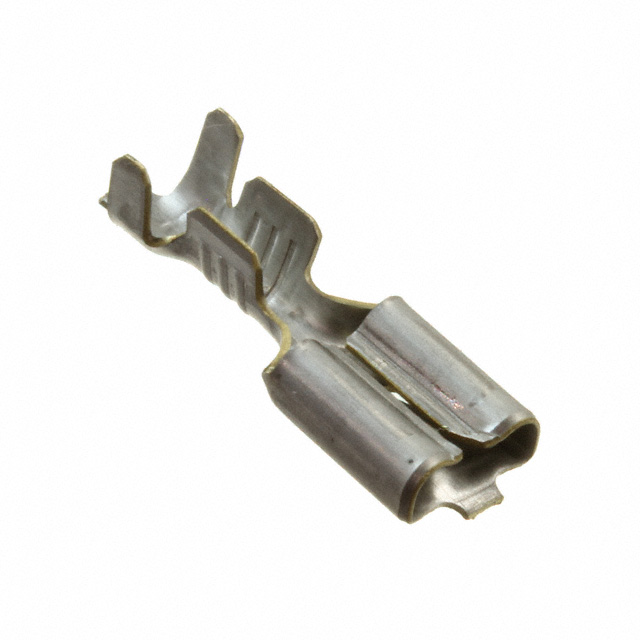

TE Connectivity Raychem Cable Protection 2238198-3	Non-Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Brass	Crimp	6.35 mm	0.25 in	Standard	4.75 mm	0.187 in	16 AWG	20 AWG	3.3 mm	2.29 mm	0.13 in	0.09 in	Tin	Female
