1734774 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN PCI EXP FMALE 98POS 0.039

Part	Contact Type	Features	Contact Finish	Material - Insulation	Card Thickness	Card Thickness	Termination	Pitch [x]	Pitch [x]	Number of Rows	Card Type	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Material	Gender	Read Out	Color	Contact Finish Thickness	Contact Finish Thickness

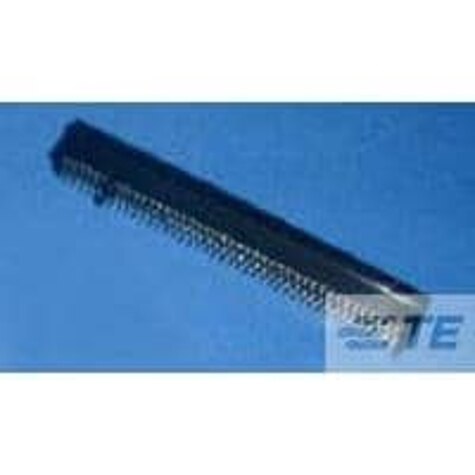

TE Connectivity Raychem Cable Protection 8-1734774-2	Cantilever	Board Guide Locking Ramp	Gold	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm	Solder Staggered	0.039 in	1 mm	2	PCI Express™	98	Through Hole	Flash	Phosphor Bronze - Tin Plated	Female	Dual	White
TE Connectivity Raychem Cable Protection 2-1734774-8	Cantilever	Board Guide Locking Ramp	Gold	Nylon 9T Polyamide (PA9T)	0.062 in	1.57 mm	Solder Staggered	0.039 in	1 mm	2	PCI Express™	36	Through Hole		Phosphor Bronze - Tin Plated	Female	Dual	Black	15 µin	0.38 µm
TE Connectivity Raychem Cable Protection 5-1734774-1	Cantilever	Board Guide Locking Ramp	Gold	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm	Solder Staggered	0.039 in	1 mm	2	PCI Express™	36	Through Hole		Phosphor Bronze - Tin Plated	Female	Dual	White	15 µin	0.38 µm
TE Connectivity Raychem Cable Protection 1-1734774-6	Cantilever	Board Guide Locking Ramp	Gold	Nylon 9T Polyamide (PA9T)	0.062 in	1.57 mm	Solder Staggered	0.039 in	1 mm	2	PCI Express™	164	Through Hole		Phosphor Bronze - Tin Plated	Female	Dual	Black	15 µin	0.38 µm
TE Connectivity Raychem Cable Protection 6-1734774-8	Cantilever	Board Guide Locking Ramp	Gold	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm	Solder Staggered	0.039 in	1 mm	2	PCI Express™	64	Through Hole		Phosphor Bronze - Tin Plated	Female	Dual	White	30 Áin	0.76 Ám

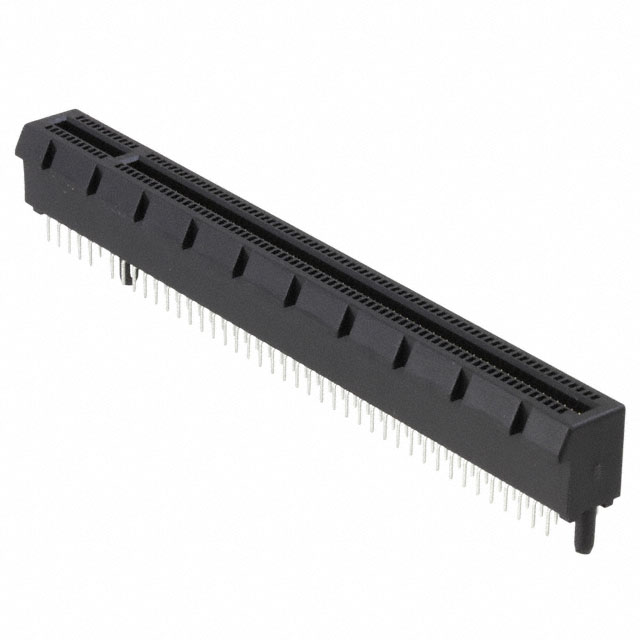

TE Connectivity Raychem Cable Protection 9-1734774-7	Cantilever	Board Guide Locking Ramp	Gold	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm	Solder Staggered	0.039 in	1 mm	2	PCI Express™	164	Through Hole		Phosphor Bronze - Tin Plated	Female	Dual	Black	30 Áin	0.76 Ám
TE Connectivity Raychem Cable Protection 9-1734774-3	Cantilever	Board Guide Locking Ramp	Gold	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm	Solder Staggered	0.039 in	1 mm	2	PCI Express™	64	Through Hole		Phosphor Bronze - Tin Plated	Female	Dual	Black	30 Áin	0.76 Ám
TE Connectivity Raychem Cable Protection 7-1734774-1	Cantilever	Board Guide Locking Ramp	Gold	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm	Solder Staggered	0.039 in	1 mm	2	PCI Express™	98	Through Hole		Phosphor Bronze - Tin Plated	Female	Dual	Black	30 Áin	0.76 Ám
TE Connectivity Raychem Cable Protection 9-1734774-5	Cantilever	Board Guide Locking Ramp	Gold	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm	Solder Staggered	0.039 in	1 mm	2	PCI Express™	98	Through Hole		Phosphor Bronze - Tin Plated	Female	Dual	Black	30 Áin	0.76 Ám
TE Connectivity Raychem Cable Protection 7-1734774-6	Cantilever	Board Guide Locking Ramp	Gold	Nylon 4/6 Polyamide (PA46)	0.062 in	1.57 mm	Solder Staggered	0.039 in	1 mm	2	PCI Express™	36	Through Hole	Flash	Phosphor Bronze - Tin Plated	Female	Dual	Black
