0240-0 Series

Catalog

CONN PIN RCPT .015-.025 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter [diameter]	Tail Diameter [diameter]	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Mounting Hole Diameter	Mounting Hole Diameter	Contact Material	Length - Overall [x]	Length - Overall [x]

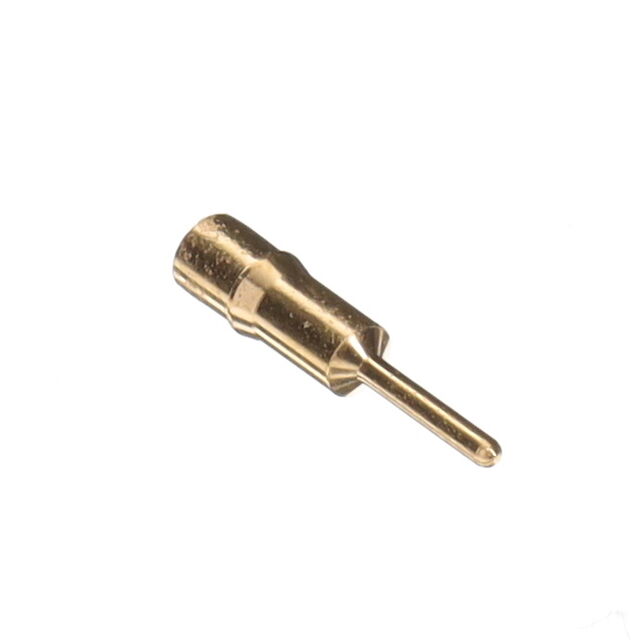

Mill-Max Manufacturing Corp. 0240-0-15-15-30-27-04-0	-55 C	125 °C	0.51 mm	0.02 in	Standard Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	0.14 in	3.56 mm	30 Áin	0.76 Ám	Press-Fit	Gold	0.059 in	1.5 mm	Beryllium Copper	0.285 in	7.24 mm
Mill-Max Manufacturing Corp. 0240-0-15-01-30-14-04-0	-55 C	125 °C	0.51 mm	0.02 in	Standard Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	0.14 in	3.56 mm	10 Áin	0.25 Ám	Press-Fit	Gold	0.059 in	1.5 mm	Beryllium Copper	0.285 in	7.24 mm
Mill-Max Manufacturing Corp. 0240-0-15-01-30-27-04-0	-55 C	125 °C	0.51 mm	0.02 in	Standard Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	0.14 in	3.56 mm	30 Áin	0.76 Ám	Press-Fit	Gold	0.059 in	1.5 mm	Beryllium Copper	0.285 in	7.24 mm
Mill-Max Manufacturing Corp. 0240-0-15-80-30-84-04-0	-55 C	125 °C	0.51 mm	0.02 in	Standard Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	0.14 in	3.56 mm	100 µin	2.54 µm	Press-Fit	Tin	0.059 in	1.5 mm	Beryllium Copper	0.285 in	7.24 mm
Mill-Max Manufacturing Corp. 0240-0-15-01-30-02-04-0	-55 C	125 °C	0.51 mm	0.02 in	Standard Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	0.14 in	3.56 mm	100 µin	2.54 µm	Press-Fit	Tin-Lead	0.059 in	1.5 mm	Beryllium Copper	0.285 in	7.24 mm
