LM2796 Series
Manufacturer: Texas Instruments
Beta
⌘K
DUAL-DISPLAY WHITE LED DRIVER WITH 3/2X SWITCHED CAPACITOR BOOST
| Part | Mounting Type | Voltage - Supply (Max) | Dimming | Type | Frequency | Package / Case | Number of Outputs | Supplier Device Package | Applications | Internal Switch(s) | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output / Channel [custom] | Topology | Features | Contents | Supplied Contents | Outputs and Type | Outputs and Type | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 5.5 V | PWM | DC DC Regulator | 500 kHz | 18-WFBGA | 7 | 18-DSBGA | Backlight | -30 °C | 85 °C | 20 mA | Switched Capacitor (Charge Pump) | ||||||||||

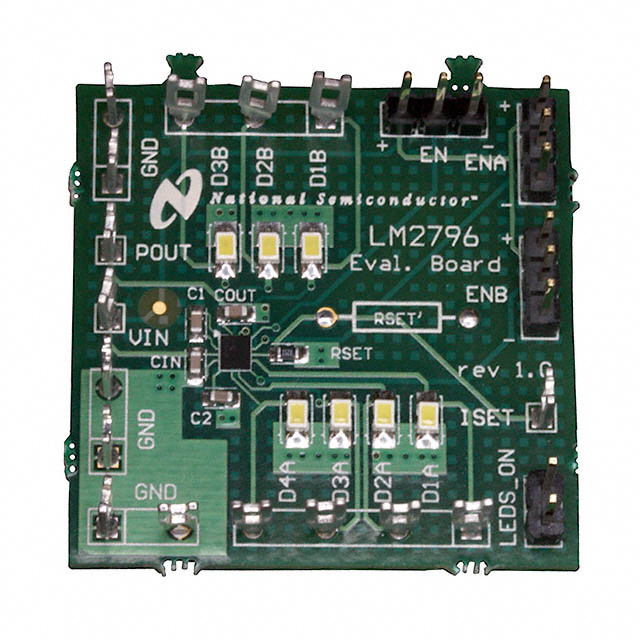

 Texas Instruments | 20 mA | Dimmable | Board(s) | Board(s) | 7 7 | Non-Isolated | LM2796 | 2.7 V | 5.5 V | 4 V |
