L0402C Series
Manufacturer: KEMET
Beta
⌘K

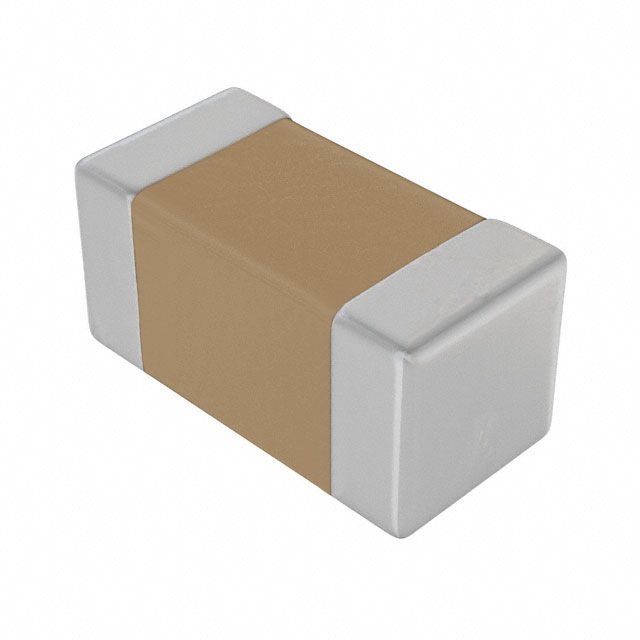

FIXED IND 15NH 300MA 460MOHM SMD
| Part | Frequency - Self Resonant | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Material - Core | Q @ Freq [custom] | Q @ Freq [custom] | Type | DC Resistance (DCR) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Supplier Device Package | Inductance | Current Rating (Amps) | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance Frequency - Test | Tolerance | Package / Case | Q @ Freq |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 3.5 GHz | Unshielded | -55 C | 125 °C | Ceramic | 11 | 100 MHz | Multilayer | 460 mOhm | 1 mm | 0.58 mm | 0.039 " | 0.023 " | 0402 (1005 Metric) | 15 nH | 0.3 A | Surface Mount | 0.018 " | 0.45 mm | 100 MHz | 5 % | 0402 (1005 Metric) | |
KEMET | 4.3 GHz | Unshielded | -55 C | 125 °C | Ceramic | Multilayer | 310 mOhm | 1 mm | 0.58 mm | 0.039 " | 0.023 " | 0402 (1005 Metric) | 10 nH | 0.3 A | Surface Mount | 0.018 " | 0.45 mm | 100 MHz | 5 % | 0402 (1005 Metric) | 10 100 MHz |
