T 3484 Series

Catalog

CONN PLUG MALE 7P SILV SLDR CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Number of Positions	Fastening Type	Contact Finish - Mating	Connector Type	Mounting Type	Primary Material	Shell Material	Shielding	Shell Size - Insert	Color	Voltage Rating	Ingress Protection	Current Rating (Amps)	Features	Orientation	Contact Type	Housing Color	Material Flammability Rating	Contact Size	Contact Shape	Insert Material	Type	Note

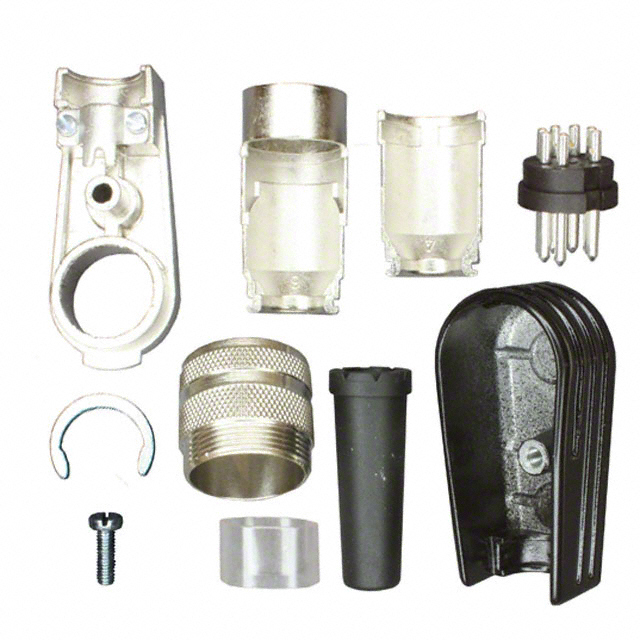

Amphenol Tuchel Industrial T 3484 005	-40 C	100 °C	Nickel	7	Threaded	Silver	Plug Male Pins	Free Hanging (In-Line) Right Angle	Metal	Die Cast	Shielded	M16-7B	Silver	250 V	IP40	7 A	Strain Relief	Keyed

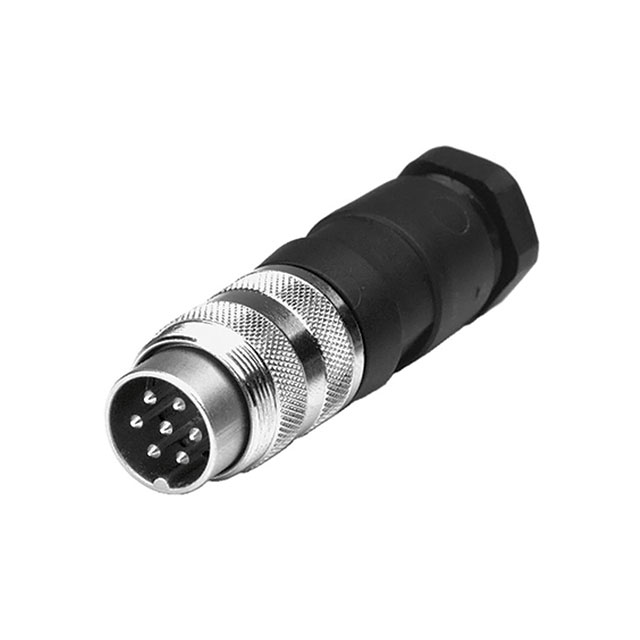

Amphenol Tuchel Industrial T 3484 552	-40 C	100 °C	Nickel	7	Threaded		Plug Housing	Free Hanging (In-Line)		Die Cast	Shielded	M16-7B			IP40		Backshell Cable Clamp Coupling Nut	Keyed	Crimp	Black Silver	UL94 V-0	1.5 mm	Circular	Thermoplastic	For Male Pins	Contacts Not Included

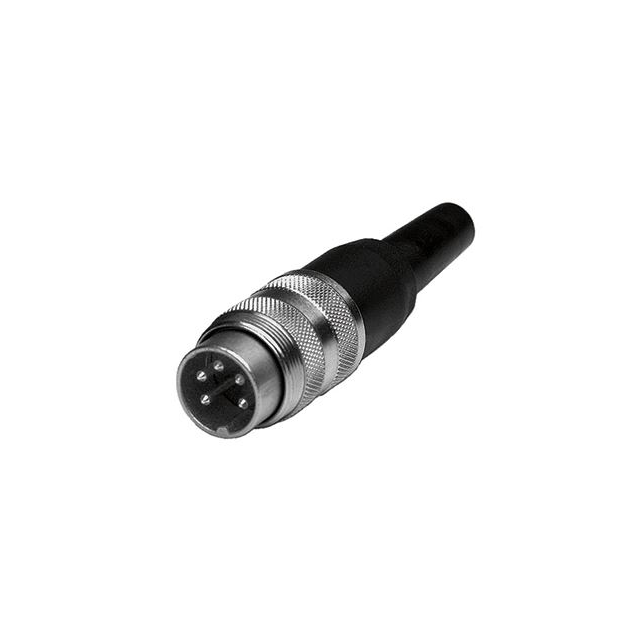

Amphenol Tuchel Industrial T 3484 551	-40 C	100 °C	Nickel	7	Threaded		Plug Housing	Free Hanging (In-Line)		Die Cast	Shielded	M16-7			IP40		Cable Clamp Coupling Nut Strain Relief	Keyed	Crimp	Silver	UL94 V-0	1.5 mm	Circular	Thermoplastic	For Male Pins	Contacts Not Included
