853-91 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 22POS 0.05 GOLD SMD

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Number of Positions Loaded	Fastening Type	Termination	Contact Type	Contact Finish - Mating	Insulation Color	Connector Type	Contact Finish - Post	Number of Positions	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 853-91-022-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Push-Pull	Solder	Female Socket	Gold	Black	Receptacle	Tin-Lead	22	2	0.05 in	1.27 mm	-55 C	125 °C	1.27 mm	0.05 in	UL94 V-0	Surface Mount	0.25 µm	10 µin	3 A	5.25 mm	0.207 in

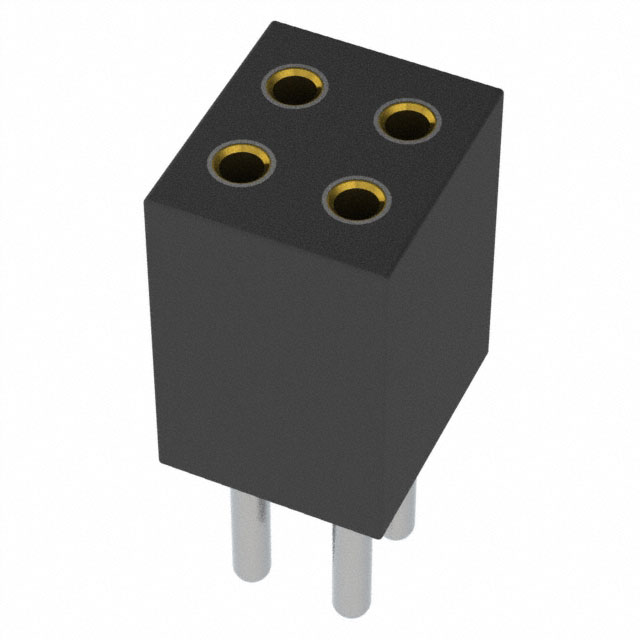

Mill-Max Manufacturing Corp. 853-91-004-10-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Push-Pull	Solder	Female Socket	Gold	Black	Receptacle	Tin-Lead	4	2	0.05 in	1.27 mm	-55 C	125 °C	1.27 mm	0.05 in	UL94 V-0	Through Hole	0.25 µm	10 µin	3 A	4.01 mm	0.158 in	2.6 mm	0.102 in

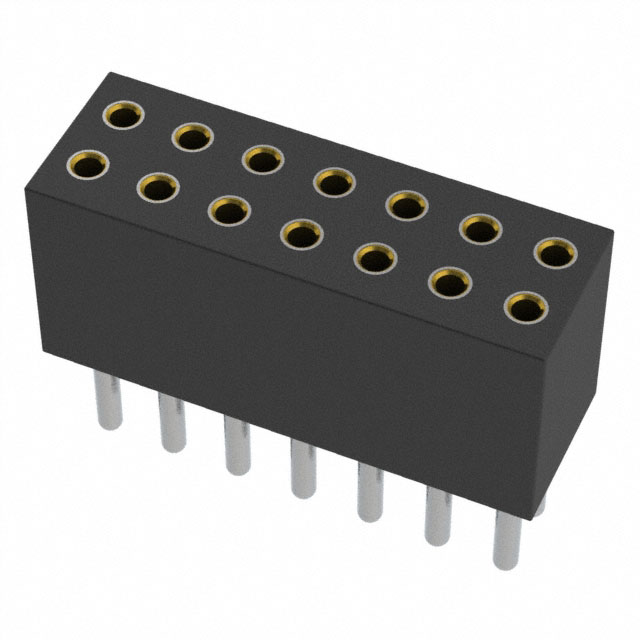

Mill-Max Manufacturing Corp. 853-91-014-10-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Push-Pull	Solder	Female Socket	Gold	Black	Receptacle	Tin-Lead	14	2	0.05 in	1.27 mm	-55 C	125 °C	1.27 mm	0.05 in	UL94 V-0	Through Hole	0.25 µm	10 µin	3 A	4.01 mm	0.158 in	2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-91-088-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Push-Pull	Solder	Female Socket	Gold	Black	Receptacle	Tin-Lead	88	2	0.05 in	1.27 mm	-55 C	125 °C	1.27 mm	0.05 in	UL94 V-0	Surface Mount	0.25 µm	10 µin	3 A	5.25 mm	0.207 in
Mill-Max Manufacturing Corp. 853-91-068-10-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Push-Pull	Solder	Female Socket	Gold	Black	Receptacle	Tin-Lead	68 positions	2	0.05 in	1.27 mm	-55 C	125 °C	1.27 mm	0.05 in	UL94 V-0	Through Hole	0.25 µm	10 µin	3 A	4.01 mm	0.158 in	2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-91-060-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Push-Pull	Solder	Female Socket	Gold	Black	Receptacle	Tin-Lead	60	2	0.05 in	1.27 mm	-55 C	125 °C	1.27 mm	0.05 in	UL94 V-0	Surface Mount	0.25 µm	10 µin	3 A	5.25 mm	0.207 in
Mill-Max Manufacturing Corp. 853-91-054-10-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Push-Pull	Solder	Female Socket	Gold	Black	Receptacle	Tin-Lead	54	2	0.05 in	1.27 mm	-55 C	125 °C	1.27 mm	0.05 in	UL94 V-0	Through Hole	0.25 µm	10 µin	3 A	4.01 mm	0.158 in	2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-91-008-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Push-Pull	Solder	Female Socket	Gold	Black	Receptacle	Tin-Lead	8	2	0.05 in	1.27 mm	-55 C	125 °C	1.27 mm	0.05 in	UL94 V-0	Surface Mount	0.25 µm	10 µin	3 A	5.25 mm	0.207 in
Mill-Max Manufacturing Corp. 853-91-050-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Push-Pull	Solder	Female Socket	Gold	Black	Receptacle	Tin-Lead	50	2	0.05 in	1.27 mm	-55 C	125 °C	1.27 mm	0.05 in	UL94 V-0	Surface Mount	0.25 µm	10 µin	3 A	5.25 mm	0.207 in
Mill-Max Manufacturing Corp. 853-91-002-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Push-Pull	Solder	Female Socket	Gold	Black	Receptacle	Tin-Lead	2	2	0.05 in	1.27 mm	-55 C	125 °C			UL94 V-0	Surface Mount	0.25 µm	10 µin	3 A	5.25 mm	0.207 in
