EL1013 Series

Catalog

OPTOISOLTR 5KV TRANSISTOR 4-SOP

Part	Current Transfer Ratio (Max) [Max]	Package / Case	Current Transfer Ratio (Min) [Min]	Output Type	Number of Channels [custom]	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Input Type	Vce Saturation (Max) [Max]	Rise / Fall Time (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output / Channel [custom]	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]
Everlight Electronics Co Ltd EL1013(TB)	200 %	4-SMD Gull Wing	100 %	Transistor	1	4 µs	3 µs	DC	300 mV	2 µs 3 µs	-55 C	110 °C	Surface Mount	50 mA	1.45 V	60 mA
Everlight Electronics Co Ltd EL1013-G	200 %	4-SMD Gull Wing	100 %	Transistor	1	4 µs	3 µs	DC	300 mV	2 µs 3 µs	-55 C	110 °C	Surface Mount	50 mA	1.45 V	60 mA

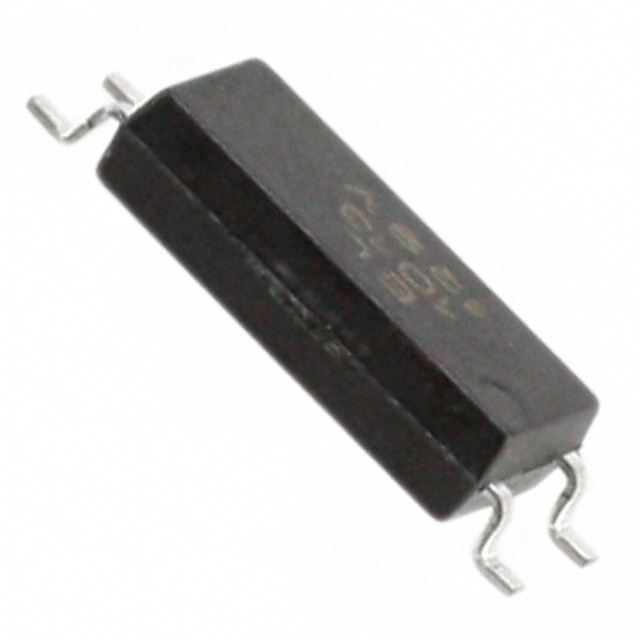

Everlight Electronics Co Ltd EL1013(TA)-VG	200 %	4-SMD Gull Wing	100 %	Transistor	1	4 µs	3 µs	DC	300 mV	2 µs 3 µs	-55 C	110 °C	Surface Mount	50 mA	1.45 V	60 mA
Everlight Electronics Co Ltd EL1013(TA)-G	200 %	4-SMD Gull Wing	100 %	Transistor	1	4 µs	3 µs	DC	300 mV	2 µs 3 µs	-55 C	110 °C	Surface Mount	50 mA	1.45 V	60 mA
