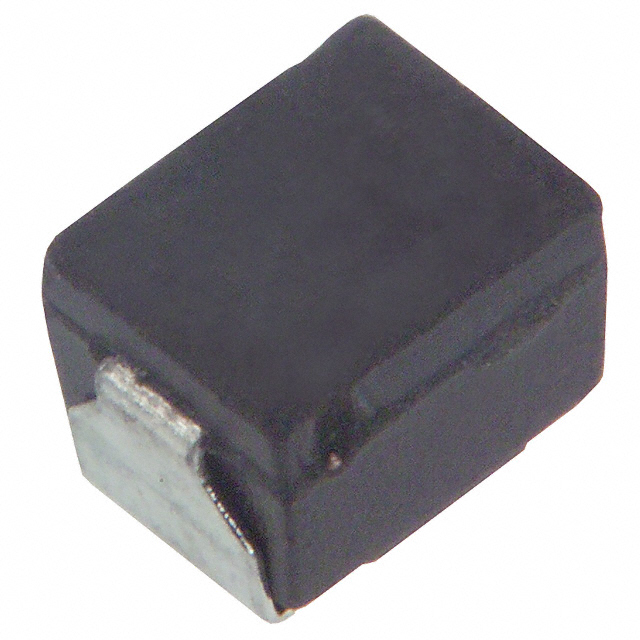

ELJ-EA Series

Catalog

FIXED IND 1.5UH 390MA 80MOHM SMD

Part	Current Rating (Amps)	Package / Case	Package / Case	Inductance Frequency - Test	Inductance	Q @ Freq	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Frequency - Self Resonant	Shielding	DC Resistance (DCR) [Max]	Tolerance
Panasonic Industrial Automation Sales ELJ-EA1R5MF	390 mA	1210	3225 Metric	7.96 MHz	1.5 µH	7 7.96 MHz	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	0.094 "	2.4 mm	85 °C	-20 C	Wirewound	80 MHz	Shielded	80 mOhm	20 %
