R12546 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

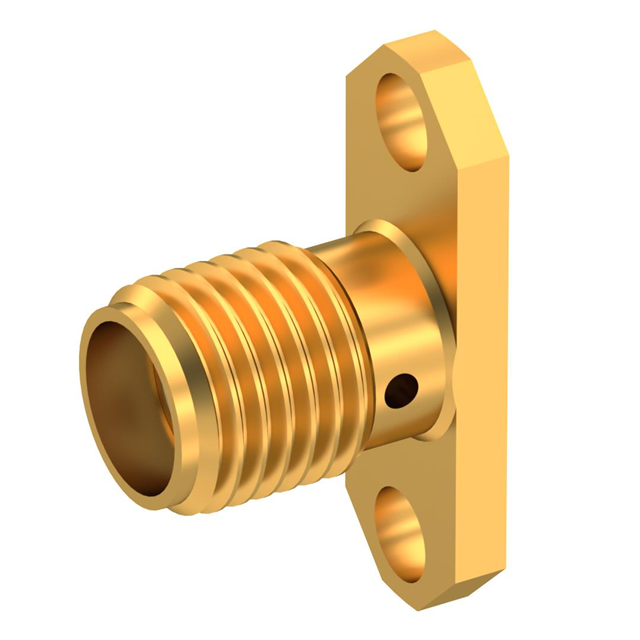

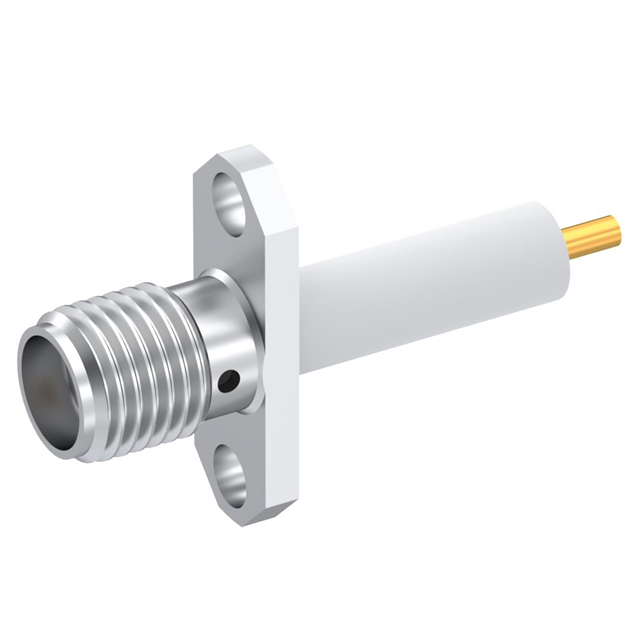

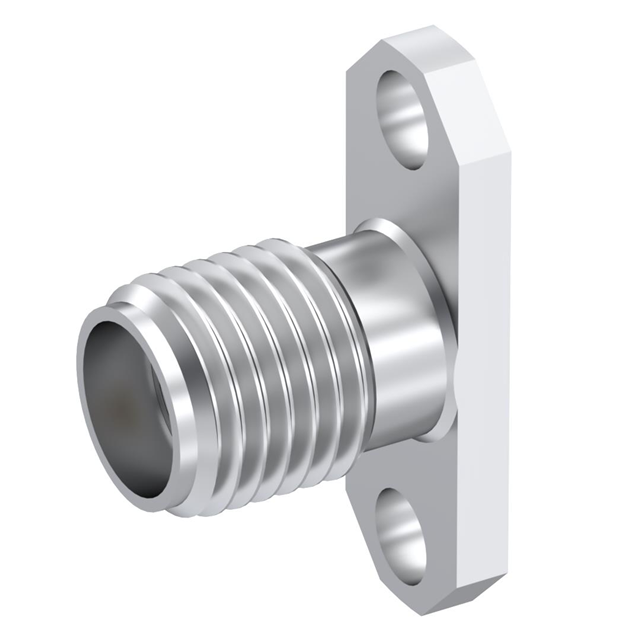

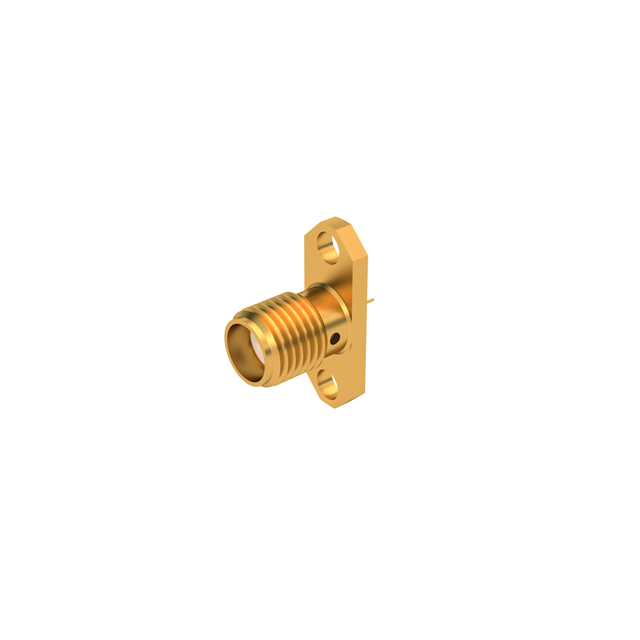

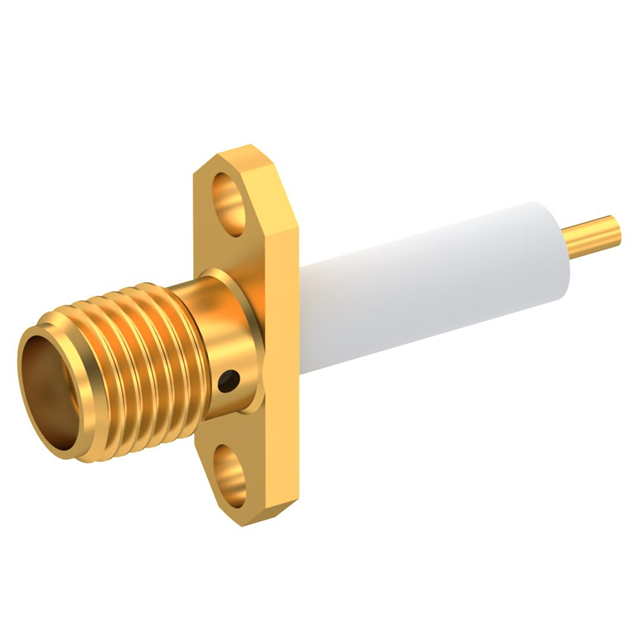

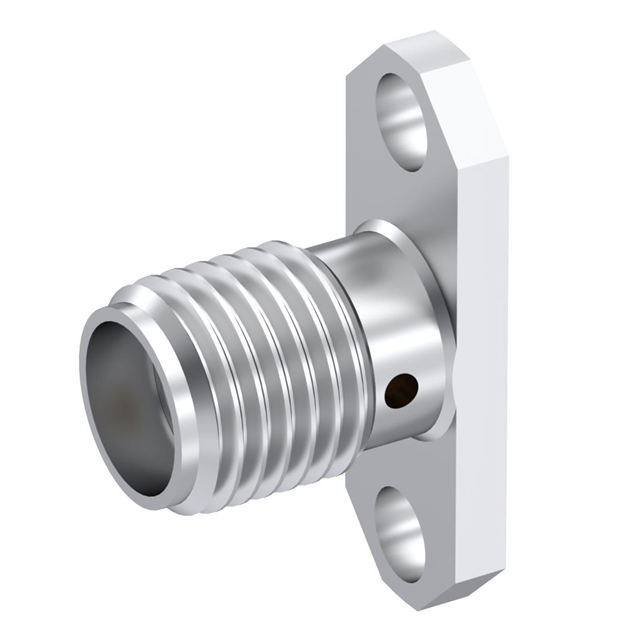

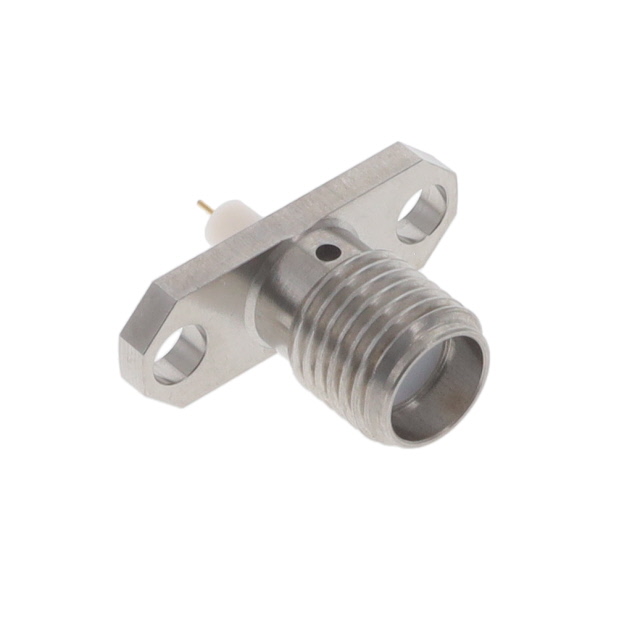

SMA / 2 HOLE FLANGE JACK RECEPTA
| Part | Center Contact Plating | Body Material | Mating Cycles | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Housing Color | Impedance | Frequency - Max [Max] | Connector Style | Number of Ports | Mounting Type | Contact Termination | Mounting Feature | Center Contact Material | Connector Type | Fastening Type | Voltage Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 125 °C | Screw | Gold | 50 Ohms | 18 GHz | SMA | 1 | Panel Mount | Compression | Flange | Bronze | Female Socket Jack | Threaded | ||
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Solder | Silver | 50 Ohms | 18 GHz | SMA | 1 | Panel Mount Through Hole | Solder | Flange | Beryllium Copper | Female Socket Jack | Threaded | 500 V | Extended Insulation | |
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 105 ░C | Screw | Silver | 50 Ohms | 18 GHz | SMA | 1 | Panel Mount | Compression | Flange | Beryllium Copper | Female Socket Jack | Threaded | 500 V | ||
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Solder | 50 Ohms | 18 GHz | SMA | 1 | Panel Mount | Solder | Flange | Beryllium Copper | Female Socket Jack | Threaded | 500 V | Extended Insulation | ||
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Screw | Silver | 50 Ohms | 18 GHz | SMA | 1 | Panel Mount | Compression | Flange | Beryllium Copper | Female Socket Jack | Threaded | 500 V | ||
Radiall USA, Inc. | Gold | Stainless Steel | 1000 | Polytetrafluoroethylene (PTFE) | -65 ░C | 125 °C | Solder | Silver | 50 Ohms | 22 GHz | SMA | 1 | Panel Mount Through Hole | Solder | Beryllium Copper | Receptacle Female Socket | Threaded | Extended Insulation | |||
Radiall USA, Inc. | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Solder | Silver | 50 Ohms | 18 GHz | SMA | 1 | Panel Mount Through Hole | Solder | Flange | Beryllium Copper | Female Socket Jack | Threaded | 500 V | Extended Insulation | |
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Solder | Gold | 50 Ohms | 18 GHz | SMA | 1 | Panel Mount Through Hole | Solder | Flange | Beryllium Copper | Female Socket Jack | Threaded | 500 V | Extended Insulation |
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Solder | Silver | 50 Ohms | 18 GHz | SMA | 1 | Panel Mount Through Hole | Solder | Flange | Beryllium Copper | Female Socket Jack | Threaded | 500 V | Extended Insulation | |
Radiall USA, Inc. | Gold | Stainless Steel | 500 | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Solder | Gold | 50 Ohms | 18 GHz | SMA | 1 | Panel Mount | Solder | Flange | Beryllium Copper | Female Socket Jack | Threaded | 500 V | Extended Insulation |
