5247-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

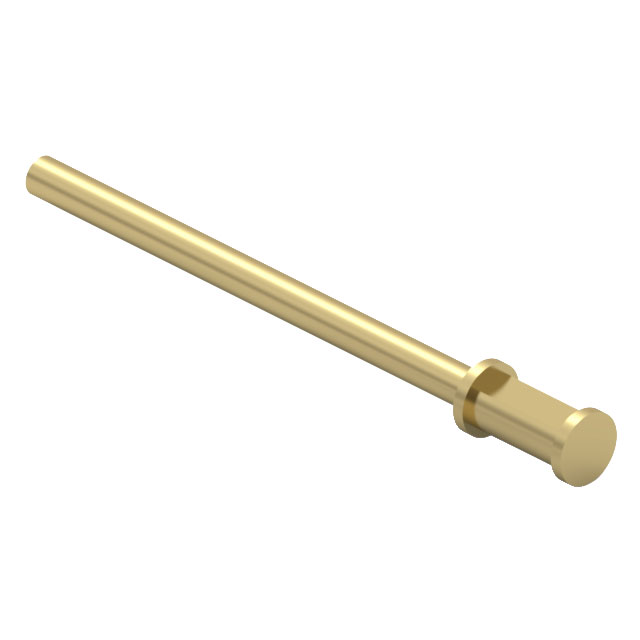

.560" LONG SOLDER PIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Contact Finish | Contact Material | Insulation | Termination | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Type | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter | Flange Diameter | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | 14.22 mm | 0.56 in | Gold | Brass Alloy | Non-Insulated | Solder | 0.031 in | 0.79 mm | PC Pin | 0.031 in | 0.79 mm | Single End | 2.54 mm | 0.1 " | 0.45 in | 11.43 mm | 0.89 mm | 0.035 in | 0.058 in | 1.47 mm | Through Hole |
