121872A Series
Manufacturer: Belden Inc.
Beta
⌘K

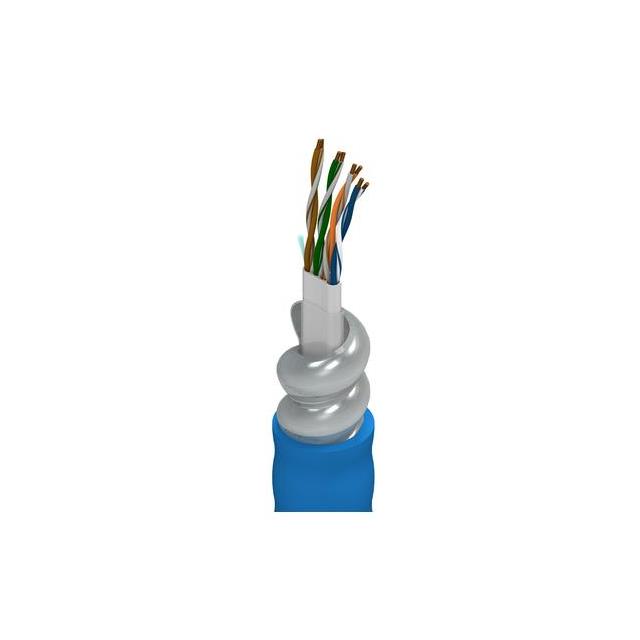

CABLE CAT6 8COND 23AWG BLK
| Part | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Insulation | Usage | Jacket Color | Jacket (Insulation) Material | Conductor Strand | Wire Gauge | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 8 | 0.05 in | 1.27 mm | Polyolefin | PO | Industrial Network | Black | Poly-Vinyl Chloride (PVC) | Solid | 23 AWG | 2000 ft | 609.6 m | 0.725 in | 18.42 mm | Copper Bare | -40 C | 75 ░C | Multi-Pair Cat6 | 300 VDC | ||
 Belden Inc. | 8 | 0.05 in | 1.27 mm | Polyolefin | PO | Industrial Network | Gray | Poly-Vinyl Chloride (PVC) | Solid | 23 AWG | 0.725 in | 18.42 mm | Copper Bare | -40 C | 75 ░C | Multi-Pair Cat6 | 300 VDC | 304.8 m | 1000 ft | ||
Belden Inc. | 8 | 0.05 in | 1.27 mm | Polyolefin | PO | Industrial Network | Black | Poly-Vinyl Chloride (PVC) | Solid | 23 AWG | 0.725 in | 18.42 mm | Copper Bare | -40 C | 75 ░C | Multi-Pair Cat6 | 300 VDC | 304.8 m | 1000 ft |
