C1DXS-1 Series

Catalog

IDC CABLE - CKR10S/AE10M/X

Part	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Connector Type	Number of Rows [custom]	Features	Usage	Shielding	Length	Length	Cable Termination	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color
CW Industries C1DXS-1036M	0.05 in	1.27 mm	0.1 in	2.54 mm	Socket to Cable	2	Polarizing Key Strain Relief	Board In	Unshielded	91.44 cm	3 ft	IDC	Tin	10	2.54 µm	100 µin	Multiple Ribbon

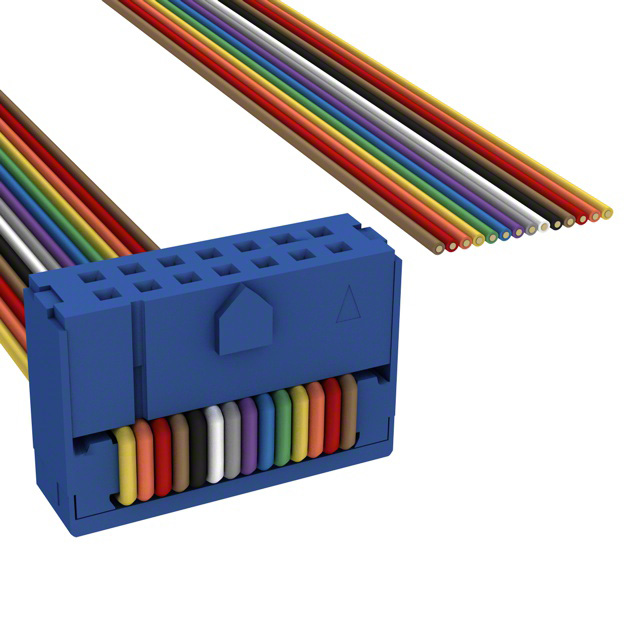

CW Industries C1DXS-1436M	0.05 in	1.27 mm	0.1 in	2.54 mm	Socket to Cable	2	Polarizing Key Strain Relief	Board In	Unshielded	91.44 cm	3 ft	IDC	Tin	14	2.54 µm	100 µin	Multiple Ribbon
CW Industries C1DXS-1436G	0.05 in	1.27 mm	0.1 in	2.54 mm	Socket to Cable	2	Polarizing Key Strain Relief	Board In	Unshielded	91.44 cm	3 ft	IDC	Tin	14	2.54 µm	100 µin

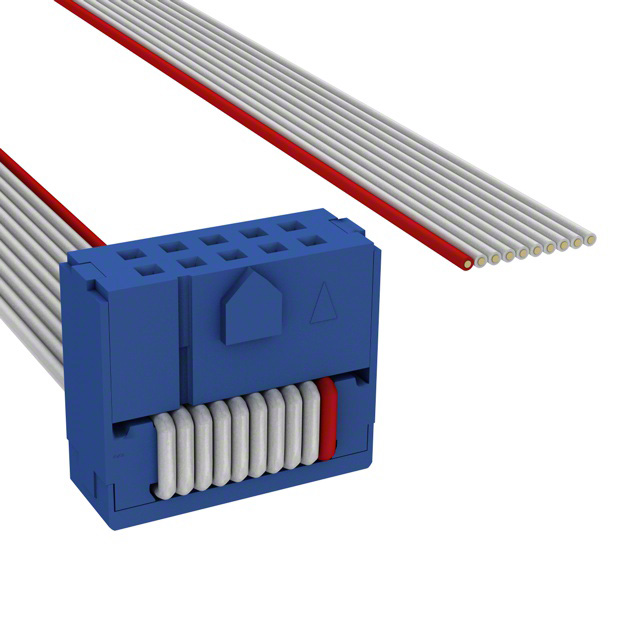

CW Industries C1DXS-1036G	0.05 in	1.27 mm	0.1 in	2.54 mm	Socket to Cable	2	Polarizing Key Strain Relief	Board In	Unshielded	91.44 cm	3 ft	IDC	Tin	10	2.54 µm	100 µin

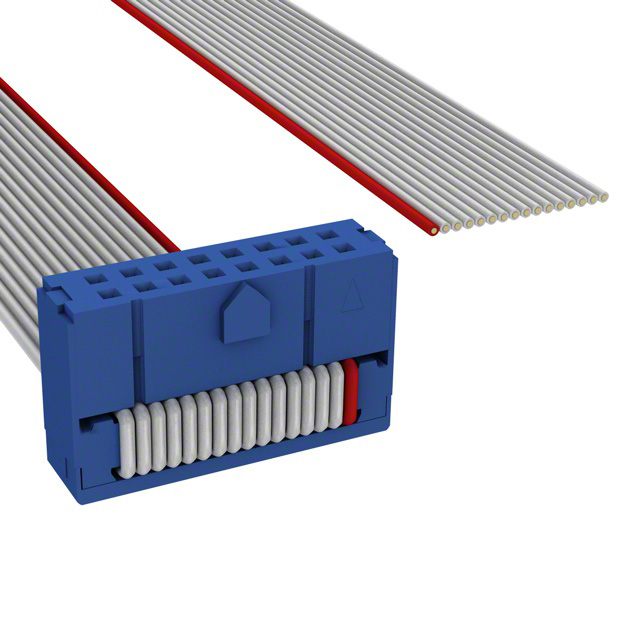

CW Industries C1DXS-1636G	0.05 in	1.27 mm	0.1 in	2.54 mm	Socket to Cable	2	Polarizing Key Strain Relief	Board In	Unshielded	91.44 cm	3 ft	IDC	Tin	16	2.54 µm	100 µin
