CC-1-3057 Series

Catalog

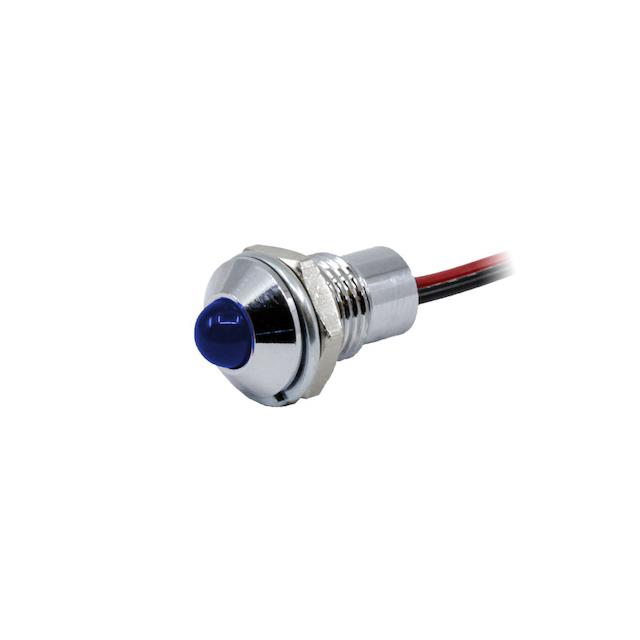

PMI DIA .319" (8.10MM) BLUE 48V

Part	Voltage	Wavelength - Peak	Panel Cutout Shape	Lamp Color	Current	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Viewing Angle	Termination Style	Lens Color	Millicandela Rating	Lens Size	Lens Size	Lens Style	Ratings
Visual Communications Company - VCC CC-1-3057-9913-I	3.3 V 48 V	468 nm	Round	Blue	20 mA	0.32 "	8.1 mm	LED	20 °	Wire Leads - 6.000" (152.40mm)	Blue	640 mcd	5 mm	T-1 3/4	Round with Domed Top	DC
Visual Communications Company - VCC CC-1-3057-9911-I	3.3 V 24 V	468 nm	Round	Blue	20 mA	0.32 "	8.1 mm	LED	20 °	Wire Leads - 6.000" (152.40mm)	Blue	640 mcd	5 mm	T-1 3/4	Round with Domed Top	DC
Visual Communications Company - VCC CC-1-3057-0000-I	3.3 V	468 nm	Round	Blue	20 mA	0.32 "	8.1 mm	LED	20 °	Wire Leads - 6.000" (152.40mm)	Blue	640 mcd	5 mm	T-1 3/4	Round with Domed Top
Visual Communications Company - VCC CC-1-3057-9922-I	3.3 V 5 V	468 nm	Round	Blue	20 mA	0.32 "	8.1 mm	LED	20 °	Wire Leads - 6.000" (152.40mm)	Blue	640 mcd	5 mm	T-1 3/4	Round with Domed Top	DC
Visual Communications Company - VCC CC-1-3057-9909-I	3.3 V 12 V	468 nm	Round	Blue	20 mA	0.32 "	8.1 mm	LED	20 °	Wire Leads - 6.000" (152.40mm)	Blue	640 mcd	5 mm	T-1 3/4	Round with Domed Top	DC
Visual Communications Company - VCC CC-1-3057-9915-I	3.3 V 60 V	468 nm	Round	Blue	20 mA	0.32 "	8.1 mm	LED	20 °	Wire Leads - 6.000" (152.40mm)	Blue	640 mcd	5 mm	T-1 3/4	Round with Domed Top	DC
