680M5W5 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB RCPT 5POS PNL MNT
| Part | Dielectric Material | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Contact Finish Thickness | Current Rating (Amps) | Connector Type | Connector Style | Number of Rows | Contact Finish | Contact Type | Mounting Type | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Material, Finish | Number of Positions | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

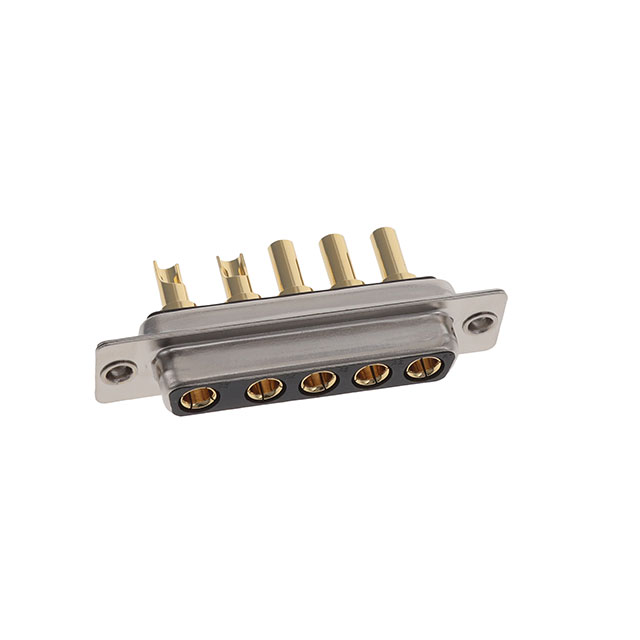

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Copper Alloy | Black | -55 C | 125 °C | Cable Side (4-40) | Flash | 20 A | Receptacle Female Sockets | Combo D-Sub | 1 | Gold | Power | Panel Mount | 3 | DB B | 5W5 | Nickel Plated Steel | 5 | UL94 V-0 |

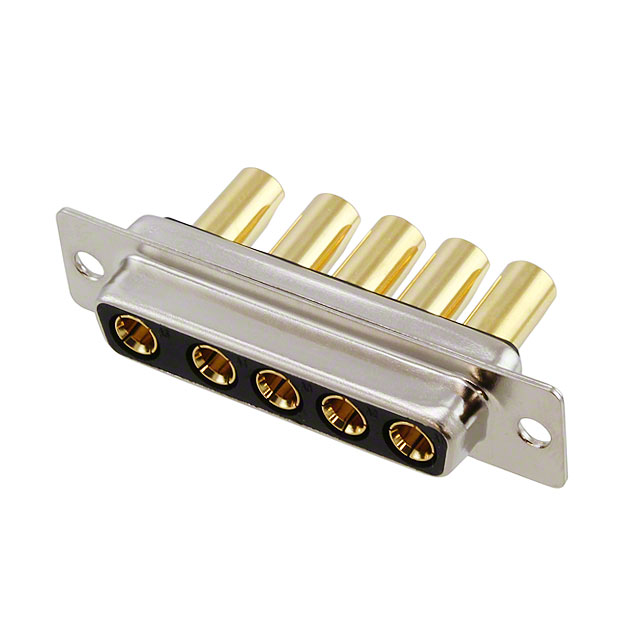

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Copper Alloy | Black | -55 C | 155 C | Housing/Shell (Unthreaded) | Flash | 40 A | Receptacle Female Sockets | Combo D-Sub | 1 | Gold | Power | Panel Mount | 3 | DB B | 5W5 | Nickel Plated Steel | 5 | UL94 V-0 |
