LSH1-02 Series
Manufacturer: New Energy
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

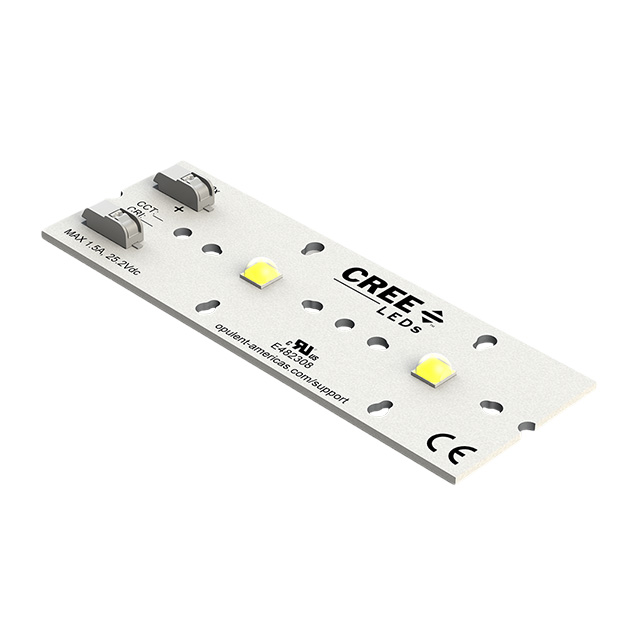

LED MOD XHP50.2 LNR STRP 2700K
| Part | Size / Dimension Width | Size / Dimension Length | CRI (Color Rendering Index) | Temperature - Test | Height | Current - Max | Lumens/Watt | Voltage - Forward (Vf) (Typ) | Lens Type | Configuration | CCT (K) | CCT Description | Luminous Flux | Current - Test | Type | Color | Luminous Flux (Typical) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 New Energy | 32.99 mm | 93.98 mm | 70 | 85 °C | 1.52 mm | 1.5 A | 133 lm/W | 22.4 V | Domed | Linear Light Strip | 2700 K | 5-Step MacAdam Ellipse | 2080 lm | 700 mA | LED Module | Warm White | |
New Energy | 32.99 mm | 93.98 mm | 70 | 85 °C | 1.5 A | 143 lm/W | 22.4 V | Domed | Linear Light Strip | 5700 K | 700 mA | LED Module | Cool White | 2240 lm | |||
New Energy | 32.99 mm | 93.98 mm | 80 | 85 °C | 1.52 mm | 1.5 A | 143 lm/W | 22.4 V | Domed | Linear Light Strip | 5000 K | 5-Step MacAdam Ellipse | 2240 lm | 700 mA | LED Module | Cool White | |
New Energy | 32.99 mm | 93.98 mm | 90 | 85 °C | 1.52 mm | 1.5 A | 115 lm/W | 22.4 V | Domed | Linear Light Strip | 2700 K | 3-Step MacAdam Ellipse | 1800 lm | 700 mA | LED Module | Warm White | |
New Energy | 32.99 mm | 93.98 mm | 80 | 85 °C | 1.52 mm | 1.5 A | 143 lm/W | 22.4 V | Domed | Linear Light Strip | 5700 K | 2240 lm | 700 mA | LED Module | Cool White | ||
New Energy | 32.99 mm | 93.98 mm | 80 | 85 °C | 1.52 mm | 1.5 A | 143 lm/W | 22.4 V | Domed | Linear Light Strip | 4000 K | 5-Step MacAdam Ellipse | 2240 lm | 700 mA | LED Module | Neutral White |
