BD9F800MUX-Z Series

4.5V to 28V Input, 8.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Catalog

4.5V to 28V Input, 8.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Part	Voltage - Input (Max) [Max]	Function	Output Configuration	Current - Output	Synchronous Rectifier	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Input (Min) [Min]	Topology	Mounting Type	Frequency - Switching	Voltage - Output (Max) [Max]	Number of Outputs	Package / Case	Supplier Device Package

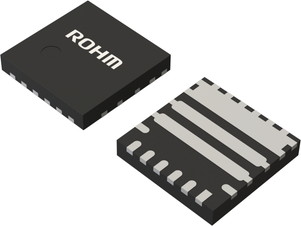

Rohm Semiconductor BD9F800MUX-ZE2	28 V	Step-Down	Positive	8 A		85 °C	-40 C	Adjustable	4.5 V	Buck	Surface Mount	300 kHz 600 kHz	13.5 V	1	11-PowerUFQFN	VQFN11X3535A

Catalog

4.5V to 28V Input, 8.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Description

BD9F800MUX is a synchronous buck DC/DC converter with built-in low on-resistance power MOSFETs. It is capable of providing current of up to 8A. External phase compensation circuit is not necessary for it is a constant on-time control DC/DC converter with high speed response.Power Supply Reference BoardFor Xilinx’s FPGA Spartan-7
