MUN12AD03 Series

Catalog

DC DC CONVERTER 0.6-5.5V

Part	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Package / Case	Efficiency	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Applications	Features	Voltage - Output 1 [Max] [custom]

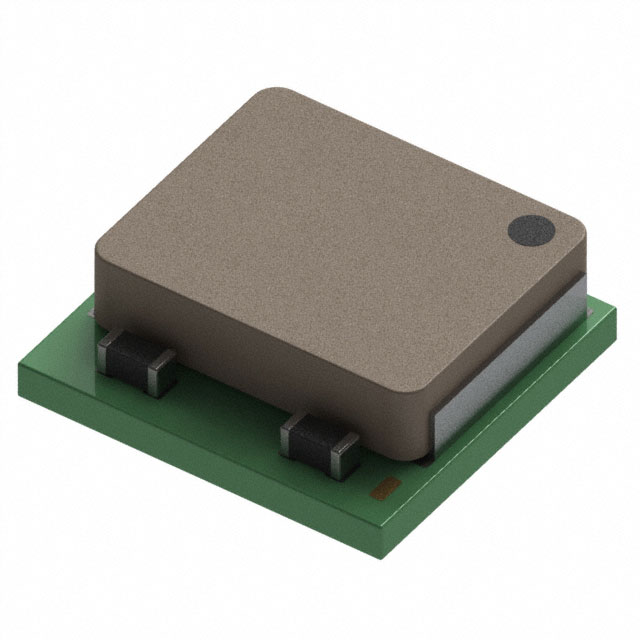

Delta Electronics/Cyntec MUN12AD03-SE	8-QFN	3	2.8	4.5 V	17 V	Surface Mount	85 °C	-40 C	1	8-LQFN Exposed Pad Module	91 %	0.6 V	5.5 V	Non-Isolated PoL Module	3 mm	1.5 mm	0.12 inches	0.11 "	2.8 mm	0.06 "	3 A	ITE (Commercial)	OCP OTP Remote On/Off UVLO

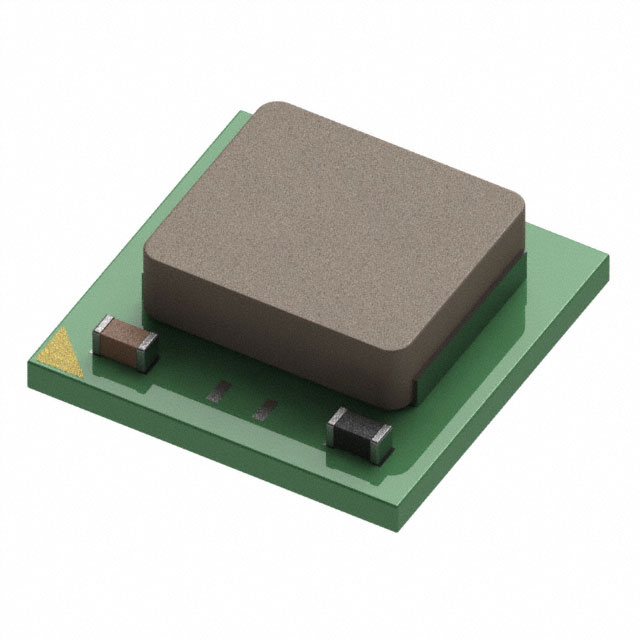

Delta Electronics/Cyntec MUN12AD03-SH	8-QFN (3.5x3.5)			4.5 V	16 V	Surface Mount	85 °C	-40 C	1	8-LQFN Exposed Pad Module	91 %	0.6 V		Non-Isolated PoL Module	3.5 mm	1.7 mm	0.14 in	0.14 in	3.5 mm	0.07 in	3 A	ITE (Commercial)	OCP OTP Remote On/Off UVLO	5 V
