UCR Series

Catalog

CURRENT SENSE RESISTORS - SMD 0805 0.013OHM 5% CS-THK FILM AEC-Q200

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Supplier Device Package	Ratings	Number of Terminations [custom]	Composition	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Temperature Coefficient	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Height - Seated (Max)	Package / Case
Rohm Semiconductor UCR10EVHJSR013	155 C	-55 C	Automotive AEC-Q200 Current Sense	0805	AEC-Q200	2	Thick Film	0.3333333333333333 W	0.333 W	2 mm	1.25 mm	0.049 "	0.079 in	13 mOhms	50/ +350ppm/°C	0805	0.026 in	0.65 mm	5 %
Rohm Semiconductor UCR03EWPFS
Rohm Semiconductor UCR10EVHFLR100	155 C	-55 C	Automotive AEC-Q200 Current Sense	0805		2	Thick Film	0.3333333333333333 W	0.333 W	2 mm	1.25 mm	0.049 "	0.079 in	0.1 Ohms		0805	0.026 in	0.65 mm	1 %	0	150 ppm/°C
Rohm Semiconductor UCR01MVPJLR22	155 C	-55 C	Automotive AEC-Q200 Current Sense	0402	AEC-Q200	2	Thick Film	0.125 W	0.125 W	1 mm	0.55 mm	0.022 in	0.039 "	220 mOhms		0402 (1005 Metric)	0.017 in	0.43 mm	5 %	0	200 ppm/°C

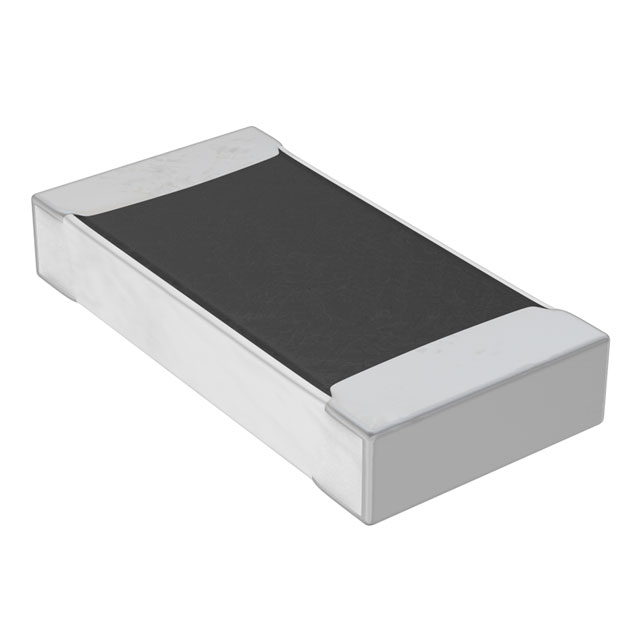

Rohm Semiconductor UCR18EVHJSR075	155 C	-55 C	Automotive AEC-Q200 Current Sense	1206	AEC-Q200	2	Thick Film	0.5 W	0.5 W	3.2 mm	1.6 mm	0.063 "	0.126 "	75 mOhms		1206 (3216 Metric)	0.026 in	0.65 mm	5 %	0	150 ppm/°C
Rohm Semiconductor UCR18EVHFSR027	155 C	-55 C	Automotive AEC-Q200 Current Sense	1206	AEC-Q200	2	Thick Film	0.5 W	0.5 W	3.2 mm	1.6 mm	0.063 "	0.126 "	27 mOhms		1206 (3216 Metric)	0.026 in	0.65 mm	1 %	0	200 ppm/°C
Rohm Semiconductor UCR006YVPFLR270	155 C	-55 C	Automotive AEC-Q200 Current Sense	0201		2	Thick Film	0.1 W	0.1 W	0.6 mm	0.33 mm	0.013 "	0.024 "	270 mOhms		0201	0.011 "		1 %	0	300 ppm/°C	0.28 mm	0603 Metric
Rohm Semiconductor UCR03EVPJLR24	155 C	-55 C	Automotive AEC-Q200 Current Sense		AEC-Q200	2	Thick Film	0.2 W	0.2 W					240 mOhms		0603	0.024 in	0.6 mm	5 %	0	150 ppm/°C		1608 Metric
Rohm Semiconductor UCR03EVPFLR820	155 C	-55 C	Automotive AEC-Q200 Current Sense		AEC-Q200	2	Thick Film	0.2 W	0.2 W					820 mOhms		0603	0.024 in	0.6 mm	1 %	0	150 ppm/°C		1608 Metric
Rohm Semiconductor UCR10EVHFSR075	155 C	-55 C	Automotive AEC-Q200 Current Sense	0805	AEC-Q200	2	Thick Film	0.3333333333333333 W	0.333 W	2 mm	1.25 mm	0.049 "	0.079 in	75 mOhms		0805	0.026 in	0.65 mm	1 %	0	150 ppm/°C
