10072354 Series

Catalog

CONN HEADER R/A 3POS 2MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Material	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Shrouding	Termination	Contact Shape	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Voltage Rating	Insulation Material	Contact Length - Post	Contact Length - Post	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Features	Contact Type	Current Rating (Amps)	Style	Insulation Color	Connector Type	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 10072354-F01-03LF	78.7 µin	2 µm	Copper Alloy	Gold	Detent Lock	Tin	Shrouded - 4 Wall	Solder	Square	4 mm	0.157 in	UL94 V-0	0.079 "	2 mm	6.1 mm	0.24 in	2	200 V	Thermoplastic	2 mm	0.079 in	Right Angle Through Hole	2 mm	0.079 in	Flash	Keying Slot	Male Pin	3 A	Board to Board Cable	Cream	Header	All
Amphenol ICC (FCI) 10072354-F01-28ULF	78.7 µin	2 µm	Copper Alloy	Gold	Detent Lock	Tin	Shrouded - 4 Wall	Solder	Square	4 mm	0.157 in	UL94 V-0	0.079 "	2 mm	6.1 mm	0.24 in	2	200 V	Thermoplastic	2 mm	0.079 in	Right Angle Through Hole	2 mm	0.079 in	Flash	Keying Slot	Male Pin	3 A	Board to Board Cable	Cream	Header	All	28

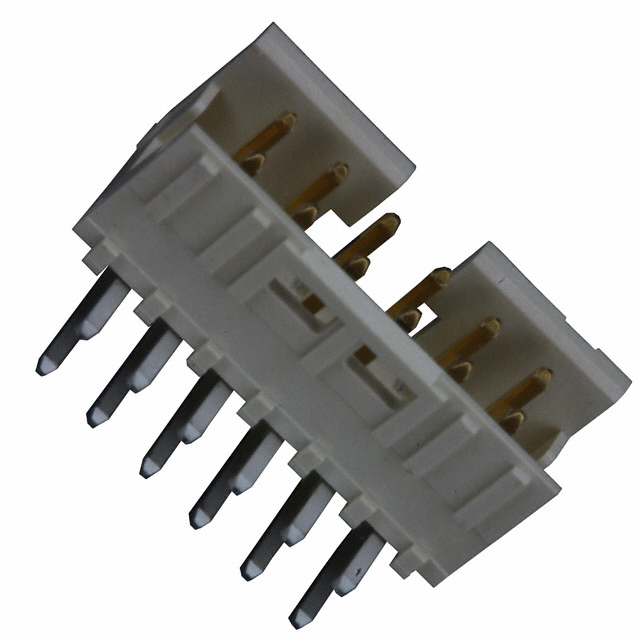

Amphenol ICC (FCI) 10072354-G01-12ULF	78.7 µin	2 µm	Copper Alloy	Gold GXT™	Detent Lock	Tin	Shrouded - 4 Wall	Solder	Square	4 mm	0.157 in	UL94 V-0	0.079 "	2 mm	6.1 mm	0.24 in	2	200 V	Thermoplastic	2 mm	0.079 in	Right Angle Through Hole	2 mm	0.079 in		Keying Slot	Male Pin	3 A	Board to Board Cable	Cream	Header	All	12	0.76 Ám	30 Áin

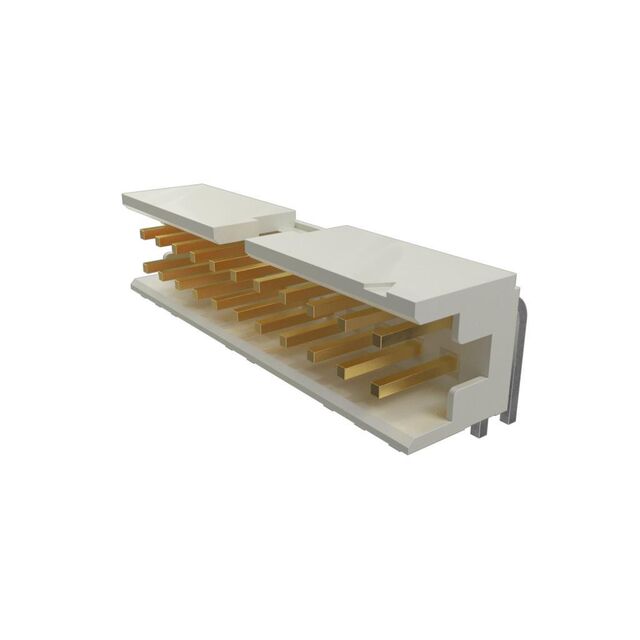

Amphenol ICC (FCI) 10072354-G01-22KLF	78.7 µin	2 µm	Copper Alloy	Gold GXT™	Detent Lock	Tin	Shrouded - 4 Wall	Solder	Square	4 mm	0.157 in	UL94 V-0	0.079 "	2 mm	6.1 mm	0.24 in	2	200 V	Thermoplastic	2 mm	0.079 in	Right Angle Through Hole	2 mm	0.079 in		Keying Slot	Male Pin	3 A	Board to Board Cable	Cream	Header	All	22	0.76 Ám	30 Áin
Amphenol ICC (FCI) 10072354-S01-42ULF	78.7 µin	2 µm	Copper Alloy	Gold GXT™	Detent Lock	Tin	Shrouded - 4 Wall	Solder	Square	4 mm	0.157 in	UL94 V-0	0.079 "	2 mm	6.1 mm	0.24 in	2	200 V	Thermoplastic	2 mm	0.079 in	Right Angle Through Hole	2 mm	0.079 in		Keying Slot	Male Pin	3 A	Board to Board Cable	Cream	Header	All	42	0.38 µm	15 µin
Amphenol ICC (FCI) 10072354-F01-42ULF	78.7 µin	2 µm	Copper Alloy	Gold	Detent Lock	Tin	Shrouded - 4 Wall	Solder	Square	4 mm	0.157 in	UL94 V-0	0.079 "	2 mm	6.1 mm	0.24 in	2	200 V	Thermoplastic	2 mm	0.079 in	Right Angle Through Hole	2 mm	0.079 in	Flash	Keying Slot	Male Pin	3 A	Board to Board Cable	Cream	Header	All	42
Amphenol ICC (FCI) 10072354-G01-06KLF	78.7 µin	2 µm	Copper Alloy	Gold GXT™	Detent Lock	Tin	Shrouded - 4 Wall	Solder	Square	4 mm	0.157 in	UL94 V-0	0.079 "	2 mm	6.1 mm	0.24 in	2	200 V	Thermoplastic	2 mm	0.079 in	Right Angle Through Hole	2 mm	0.079 in		Keying Slot	Male Pin	3 A	Board to Board Cable	Cream	Header	All	6	0.76 Ám	30 Áin
Amphenol ICC (FCI) 10072354-G01-30KLF	78.7 µin	2 µm	Copper Alloy	Gold GXT™	Detent Lock	Tin	Shrouded - 4 Wall	Solder	Square	4 mm	0.157 in	UL94 V-0	0.079 "	2 mm	6.1 mm	0.24 in	2	200 V	Thermoplastic	2 mm	0.079 in	Right Angle Through Hole	2 mm	0.079 in		Keying Slot	Male Pin	3 A	Board to Board Cable	Cream	Header	All	30	0.76 Ám	30 Áin
Amphenol ICC (FCI) 10072354-F01-08ULF	78.7 µin	2 µm	Copper Alloy	Gold	Detent Lock	Tin	Shrouded - 4 Wall	Solder	Square	4 mm	0.157 in	UL94 V-0	0.079 "	2 mm	6.1 mm	0.24 in	2	200 V	Thermoplastic	2 mm	0.079 in	Right Angle Through Hole	2 mm	0.079 in	Flash	Keying Slot	Male Pin	3 A	Board to Board Cable	Cream	Header	All	8
Amphenol ICC (FCI) 10072354-G01-28ULF	78.7 µin	2 µm	Copper Alloy	Gold GXT™	Detent Lock	Tin	Shrouded - 4 Wall	Solder	Square	4 mm	0.157 in	UL94 V-0	0.079 "	2 mm	6.1 mm	0.24 in	2	200 V	Thermoplastic	2 mm	0.079 in	Right Angle Through Hole	2 mm	0.079 in		Keying Slot	Male Pin	3 A	Board to Board Cable	Cream	Header	All	28	0.76 Ám	30 Áin
