3055 Series

Catalog

HOOK-UP STRND 18AWG ORANGE 1000'

Part	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Wire Gauge	Cable Type	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Length	Length	Length [x]	Length [x]
ALPHA WIRE 3055 OR001	Copper Tinned	-40 °C	105 ░C	Biological Compatibility	18 AWG	Hook-Up	ISO 10993 UL Style 1007/1569	16	30 AWG	300 V	0.016 in	0.41 mm	Orange	2.01 mm	0.079 in	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 3055 BR001	Copper Tinned	-40 °C	105 ░C	Biological Compatibility	18 AWG	Hook-Up	ISO 10993 UL Style 1007/1569	16	30 AWG	300 V	0.016 in	0.41 mm	Brown	2.01 mm	0.079 in	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 3055 RD001	Copper Tinned	-40 °C	105 ░C	Biological Compatibility	18 AWG	Hook-Up	ISO 10993 UL Style 1007/1569	16	30 AWG	300 V	0.016 in	0.41 mm	Red	2.01 mm	0.079 in	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 3055 WH001	Copper Tinned	-40 °C	105 ░C	Biological Compatibility	18 AWG	Hook-Up	ISO 10993 UL Style 1007/1569	16	30 AWG	300 V	0.016 in	0.41 mm		2.01 mm	0.079 in	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 3055 OR013	Copper Tinned	-40 °C	105 ░C	Biological Compatibility	18 AWG	Hook-Up	ISO 10993 UL Style 1007/1569	16	30 AWG	300 V	0.016 in	0.41 mm	Orange	2.01 mm	0.079 in	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 3055 YL001	Copper Tinned	-40 °C	105 ░C	Biological Compatibility	18 AWG	Hook-Up	ISO 10993 UL Style 1007/1569	16	30 AWG	300 V	0.016 in	0.41 mm	Yellow	2.01 mm	0.079 in	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 3055 BK013	Copper Tinned	-40 °C	105 ░C	Biological Compatibility	18 AWG	Hook-Up	ISO 10993 UL Style 1007/1569	16	30 AWG	300 V	0.016 in	0.41 mm	Black	2.01 mm	0.079 in	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 3055 WH013	Copper Tinned	-40 °C	105 ░C	Biological Compatibility	18 AWG	Hook-Up	ISO 10993 UL Style 1007/1569	16	30 AWG	300 V	0.016 in	0.41 mm		2.01 mm	0.079 in	Poly-Vinyl Chloride (PVC)

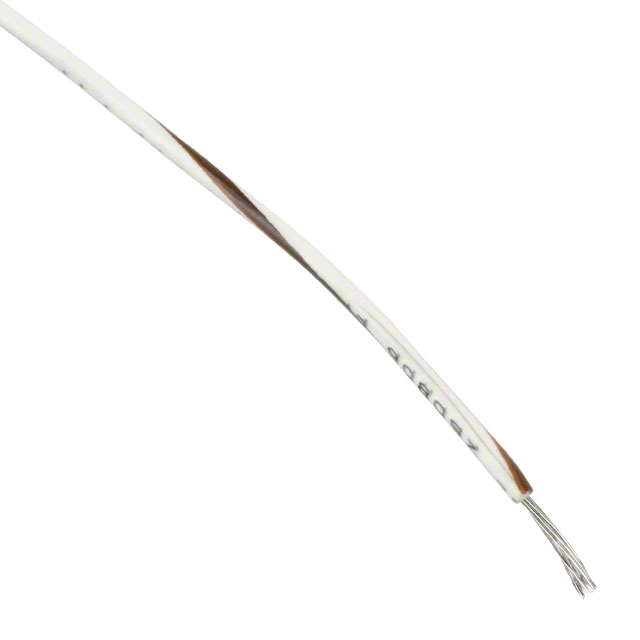

ALPHA WIRE 3055 WN005	Copper Tinned	-40 °C	105 ░C	Biological Compatibility	18 AWG	Hook-Up	ISO 10993 UL Style 1007/1569	16	30 AWG	300 V	0.016 in	0.41 mm	White Brown Stripe	2.01 mm	0.079 in	Poly-Vinyl Chloride (PVC)			30.5 m	100 ft
ALPHA WIRE 3055 VI013
