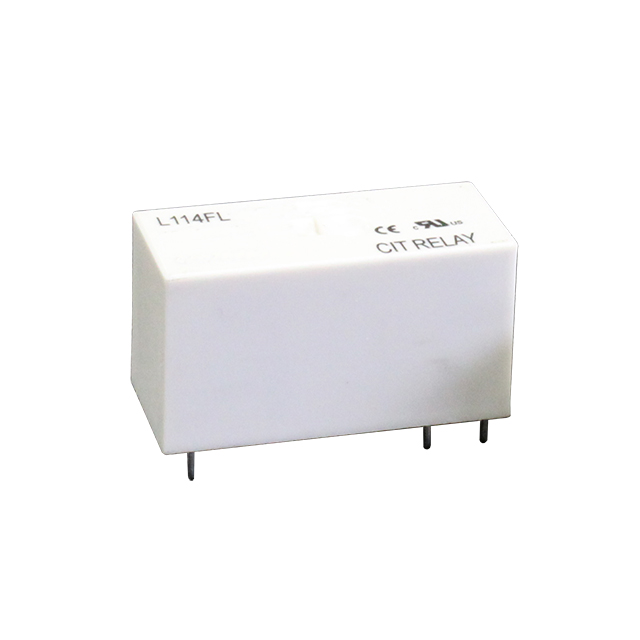

L114FL1 Series

Catalog

RELAY GEN PURPOSE SPDT 20A 5V

Part	Coil Resistance	Relay Type	Coil Voltage	Operate Time	Release Time	Contact Material	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Mounting Type	Load - Max Switching	Termination Style	Seal Rating	Contact Form	Contact Rating (Current)	Switching Voltage [Max]	Coil Current	Features
CIT Relay and Switch L114FL1CS5VDC.40	62.5 Ohms	General Purpose	5 VDC	10 ms	10 ms	Silver Tin Oxide (AgSnO)	3.5 VDC	85 °C	-40 C	Latching Single Coil	Through Hole	6000 VA	PC Pin	Sealed - Fully	SPDT (1 Form C)	20 A	300 VAC	80 mA
CIT Relay and Switch L114FL1AS12VDC.40R	360 Ohms	General Purpose	12 VDC	10 ms	10 ms	Silver Tin Oxide (AgSnO)	8.4 VDC	85 °C	-40 C	Latching Single Coil	Through Hole	6000 VA	PC Pin	Sealed - Fully	SPST-NO (1 Form A)	20 A	300 VAC	33.3 mA	Reverse Coil Polarity
CIT Relay and Switch L114FL1CS9VDC.60DA	135 Ohms	General Purpose	9 VDC	10 ms	10 ms	Silver Tin Oxide (AgSnO)	6.3 VDC	85 °C	-40 C	Dual Coil Latching	Through Hole	6000 VA	PC Pin	Sealed - Fully	SPDT (1 Form C)	20 A	300 VAC	66.7 mA
CIT Relay and Switch L114FL1CS5VDC.60DAU	42 Ohms	General Purpose	5 VDC	10 ms	10 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	3.5 VDC	85 °C	-40 C	Dual Coil Latching	Through Hole	6000 VA	PC Pin	Sealed - Fully	SPDT (1 Form C)	20 A	300 VAC	119 mA
CIT Relay and Switch L114FL1AS12VDC.60RDAU	240 Ohms	General Purpose	12 VDC	10 ms	10 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	8.4 VDC	85 °C	-40 C	Dual Coil Latching	Through Hole	6000 VA	PC Pin	Sealed - Fully	SPST-NO (1 Form A)	20 A	300 VAC	50 mA	Reverse Coil Polarity
CIT Relay and Switch L114FL1AS12VDC.60DAU	240 Ohms	General Purpose	12 VDC	10 ms	10 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	8.4 VDC	85 °C	-40 C	Dual Coil Latching	Through Hole	6000 VA	PC Pin	Sealed - Fully	SPST-NO (1 Form A)	20 A	300 VAC	50 mA
CIT Relay and Switch L114FL1CS24VDC.60DA	886 Ohms	General Purpose	24 VDC	10 ms	10 ms	Silver Tin Oxide (AgSnO)	16.8 VDC	85 °C	-40 C	Dual Coil Latching	Through Hole	6000 VA	PC Pin	Sealed - Fully	SPDT (1 Form C)	20 A	300 VAC	27.1 mA
CIT Relay and Switch L114FL1CS9VDC.60RD	135 Ohms	General Purpose	9 VDC	10 ms	10 ms	Silver Tin Oxide (AgSnO)	6.3 VDC	85 °C	-40 C	Dual Coil Latching	Through Hole	6000 VA	PC Pin	Sealed - Fully	SPDT (1 Form C)	20 A	300 VAC	66.7 mA	Reverse Coil Polarity
CIT Relay and Switch L114FL1CS12VDC.40U	360 Ohms	General Purpose	12 VDC	10 ms	10 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	8.4 VDC	85 °C	-40 C	Latching Single Coil	Through Hole	6000 VA	PC Pin	Sealed - Fully	SPDT (1 Form C)	20 A	300 VAC	33.3 mA
CIT Relay and Switch L114FL1CS24VDC.60D	886 Ohms	General Purpose	24 VDC	10 ms	10 ms	Silver Tin Oxide (AgSnO)	16.8 VDC	85 °C	-40 C	Dual Coil Latching	Through Hole	6000 VA	PC Pin	Sealed - Fully	SPDT (1 Form C)	20 A	300 VAC	27.1 mA
