2350513 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
5POS TB HDR 90 DEG PITCH 5.0 & T
| Part | Color | Positions Per Level | Type | Contact Mating Finish | Header Orientation | Mounting Type | Number of Levels | Material Flammability Rating | Contact Tail Length | Contact Tail Length | Current - UL | Contact Material | Pitch [x] | Pitch [x] | Insulation Height | Insulation Height | Voltage - UL | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

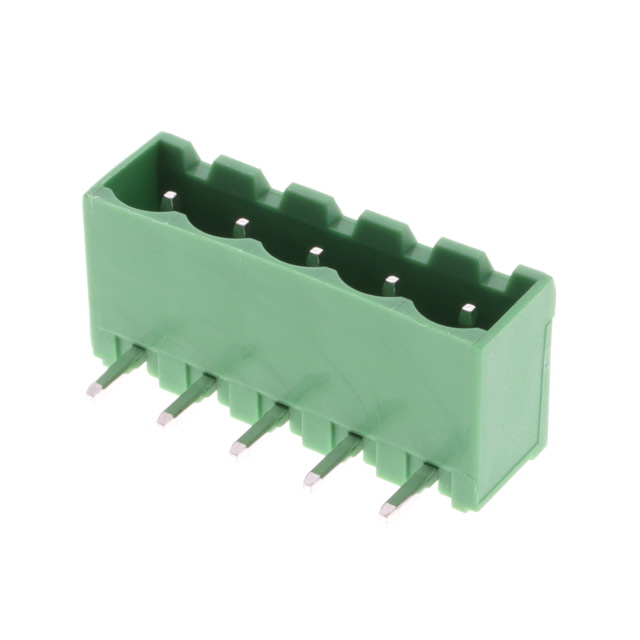

 TE Connectivity Raychem Cable Protection | Green | 5 | Header Male Pins Shrouded (4 Side) | Tin | 90° Right Angle | Through Hole | 1 | UL94 V-0 | 4.5 mm | 0.177 in | 16 A | Copper Alloy | 5 mm | 0.197 in | 0.327 " | 8.3 mm | 300 V | -40 °C | 105 ░C | Solder | ||

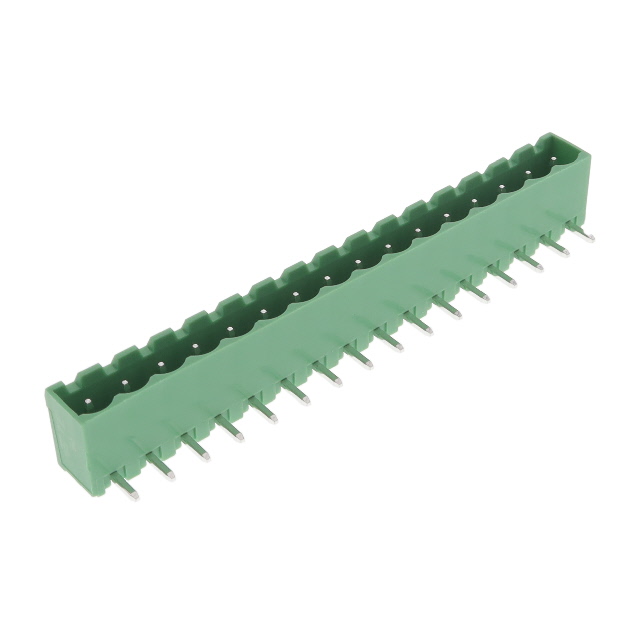

 TE Connectivity Raychem Cable Protection | Green | 16 | Header Male Pins Shrouded (4 Side) | Tin | 90° Right Angle | Through Hole | 1 | UL94 V-0 | 4.5 mm | 0.177 in | 16 A | Copper Alloy | 5 mm | 0.197 in | 0.327 " | 8.3 mm | 300 V | -40 °C | 105 ░C | Solder | 16 | |

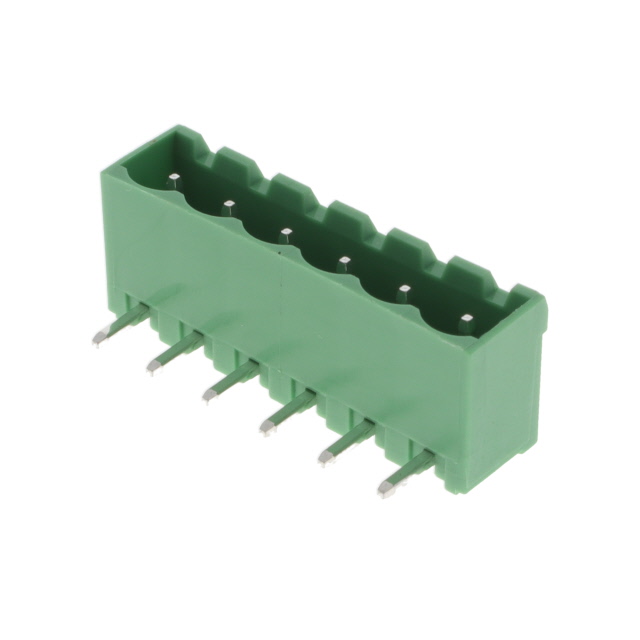

 TE Connectivity Raychem Cable Protection | Green | 6 | Header Male Pins Shrouded (4 Side) | Tin | 90° Right Angle | Through Hole | 1 | UL94 V-0 | 4.5 mm | 0.177 in | 16 A | Copper Alloy | 5 mm | 0.197 in | 0.327 " | 8.3 mm | 300 V | -40 °C | 105 ░C | Solder | 6 | |

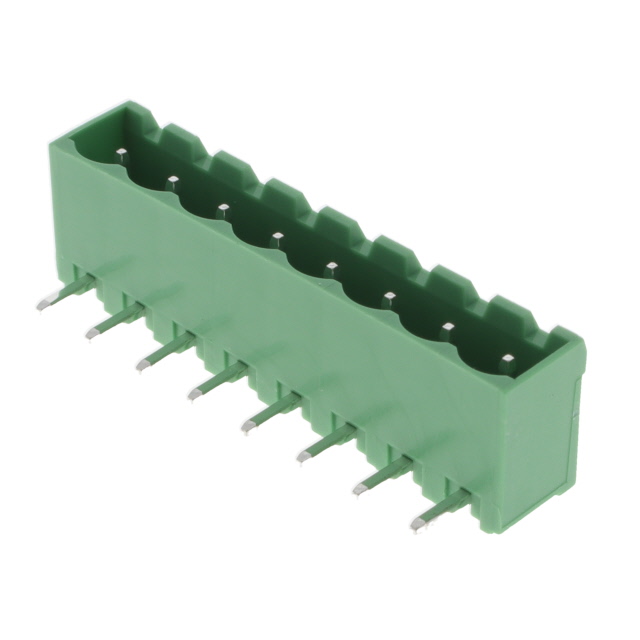

 TE Connectivity Raychem Cable Protection | Green | 8 | Header Male Pins Shrouded (4 Side) | Tin | 90° Right Angle | Through Hole | 1 | UL94 V-0 | 4.5 mm | 0.177 in | 16 A | Copper Alloy | 5 mm | 0.197 in | 0.327 " | 8.3 mm | 300 V | -40 °C | 105 ░C | Solder | 8 | |

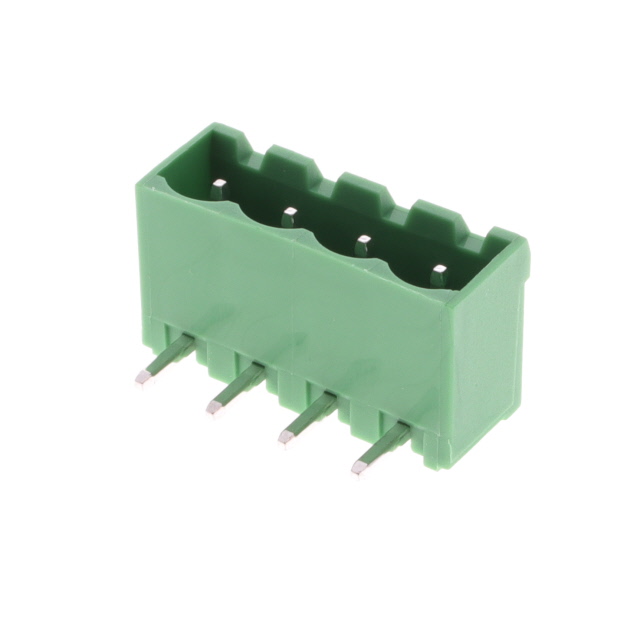

 TE Connectivity Raychem Cable Protection | Green | 4 | Header Male Pins Shrouded (4 Side) | Tin | 90° Right Angle | Through Hole | 1 | UL94 V-0 | 4.5 mm | 0.177 in | 16 A | Copper Alloy | 5 mm | 0.197 in | 0.327 " | 8.3 mm | 300 V | -40 °C | 105 ░C | Solder | 4 | |

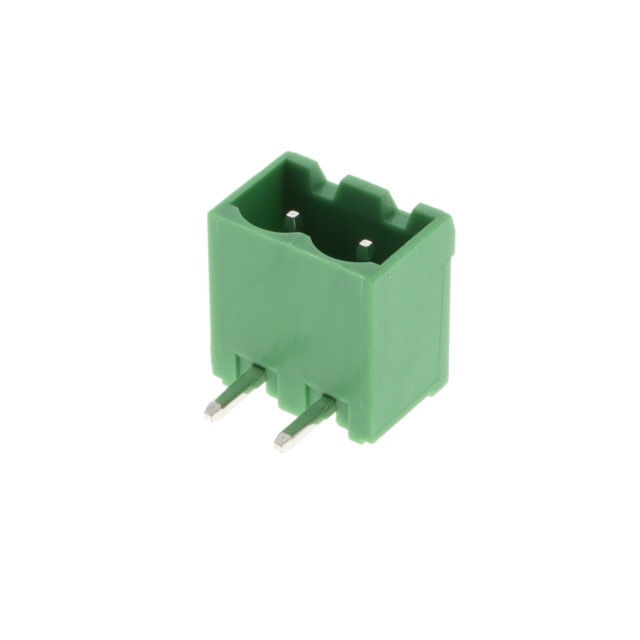

 TE Connectivity Raychem Cable Protection | Green | 2 | Header Male Pins Shrouded (4 Side) | Tin | 90° Right Angle | Through Hole | 1 | UL94 V-0 | 4.5 mm | 0.177 in | 16 A | Copper Alloy | 5 mm | 0.197 in | 0.327 " | 8.3 mm | 300 V | -40 °C | 105 ░C | Solder | 2 |
