BZM42/Z Series

Catalog

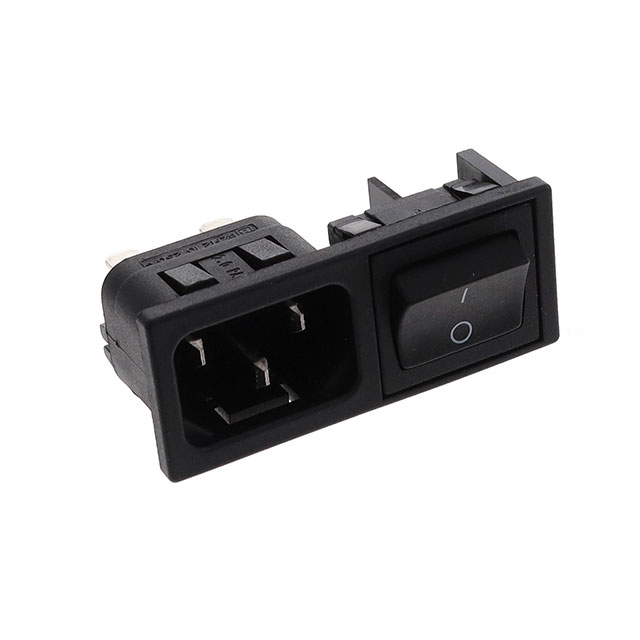

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 1-POLE SWITCH

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Type	Approval Agency	Termination	Termination	Termination	Current Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Filter Type	Material Flammability Rating	Connector Style	Mounting Type	Switch Features	Voltage Rating - Appliance Inlet
BULGIN LIMITED BZM42/Z0000/53C	21.3 mm	45.9 mm	Receptacle Male Blades - Module	CSA ENEC UL VDE	0.189 "	4.8 mm	Quick Connect	10 A	0.079 in	2 mm	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Panel Mount Snap-In	Switch On-Off	250 VAC
BULGIN LIMITED BZM42/Z0000/59C	21.3 mm	54.9 mm	Receptacle Male Blades - Module	CSA ENEC UL VDE	0.189 "	4.8 mm	Quick Connect	10 A	0.079 in	2 mm	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Panel Mount Snap-In	Illuminated Switch On-Off	250 VAC
BULGIN LIMITED BZM42/Z0000/55B	21.3 mm	45.9 mm	Receptacle Male Blades - Module	CSA ENEC UL VDE	0.189 "	4.8 mm	Quick Connect	10 A	0.059 in	1.5 mm	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Panel Mount Snap-In	Illuminated Switch On-Off	250 VAC
BULGIN LIMITED BZM42/Z0000/57C	21.3 mm	54.9 mm	Receptacle Male Blades - Module	CSA ENEC UL VDE	0.189 "	4.8 mm	Quick Connect	10 A	0.079 in	2 mm	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Panel Mount Snap-In	Switch On-Off	250 VAC
BULGIN LIMITED BZM42/Z0000/59B	21.3 mm	54.9 mm	Receptacle Male Blades - Module	CSA ENEC UL VDE	0.189 "	4.8 mm	Quick Connect	10 A	0.059 in	1.5 mm	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Panel Mount Snap-In	Illuminated Switch On-Off	250 VAC
BULGIN LIMITED BZM42/Z0000/53B	21.3 mm	45.9 mm	Receptacle Male Blades - Module	CSA ENEC UL VDE	0.189 "	4.8 mm	Quick Connect	10 A	0.059 in	1.5 mm	Unfiltered - Commercial	UL94 V-0	IEC 320-C14	Panel Mount Snap-In	Switch On-Off	250 VAC
