G881A Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN HEADER VERT 6POS 3MM

Part	Contact Type	Voltage Rating	Number of Positions	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Style	Pitch - Mating	Pitch - Mating	Fastening Type	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Shape	Connector Type	Mounting Type	Insulation Material	Insulation Color	Contact Finish - Post	Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height

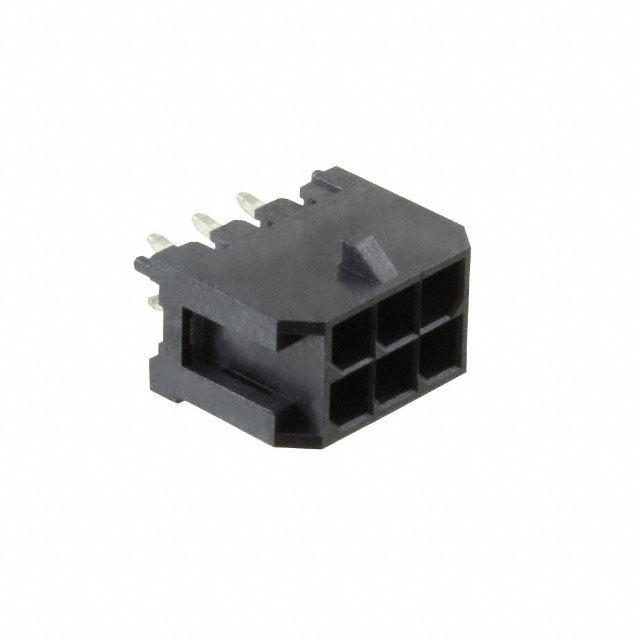

Amphenol ICC (Commercial Products) G881A06102TEU	Male Pin	250 V	6	2	0.118 in	3 mm	Board to Cable/Wire	3 mm	0.118 in	Locking Ramp	Shrouded - 4 Wall	0.39 in	9.91 mm	Square	Header	Through Hole	Liquid Crystal Polymer (LCP)	Black	Tin	Kinked Pin Solder	Board Guide	-40 C	105 ░C	UL94 V-0	0.126 "	3.2 mm	Copper Alloy	All
Amphenol ICC (Commercial Products) G881A08102T3EU	Male Pin	250 V	8	2	0.118 in	3 mm	Board to Cable/Wire	3 mm	0.118 in	Locking Ramp	Shrouded - 4 Wall	0.39 in	9.91 mm	Square	Header	Through Hole	Liquid Crystal Polymer (LCP)	Black	Tin	Solder	Board Guide	-40 C	105 ░C	UL94 V-0	0.126 "	3.2 mm	Copper Alloy	All
Amphenol ICC (Commercial Products) G881A22102T3EU	Male Pin	250 V	22	2	0.118 in	3 mm	Board to Cable/Wire	3 mm	0.118 in	Locking Ramp	Shrouded - 4 Wall	0.39 in	9.91 mm	Square	Header	Through Hole	Liquid Crystal Polymer (LCP)	Black	Tin	Solder	Board Guide	-40 C	105 ░C	UL94 V-0	0.126 "	3.2 mm	Copper Alloy	All
Amphenol ICC (Commercial Products) G881A04102TEU	Male Pin	250 V	4	2	0.118 in	3 mm	Board to Cable/Wire	3 mm	0.118 in	Locking Ramp	Shrouded - 4 Wall	0.39 in	9.91 mm	Square	Header	Through Hole	Liquid Crystal Polymer (LCP)	Black	Tin	Kinked Pin Solder	Board Guide	-40 C	105 ░C	UL94 V-0	0.126 "	3.2 mm	Copper Alloy	All
Amphenol ICC (Commercial Products) G881A20102TEU	Male Pin	250 V	20	2	0.118 in	3 mm	Board to Cable/Wire	3 mm	0.118 in	Locking Ramp	Shrouded - 4 Wall	0.39 in	9.91 mm	Square	Header	Through Hole	Liquid Crystal Polymer (LCP)	Black	Tin	Kinked Pin Solder	Board Guide	-40 C	105 ░C	UL94 V-0	0.126 "	3.2 mm	Copper Alloy	All

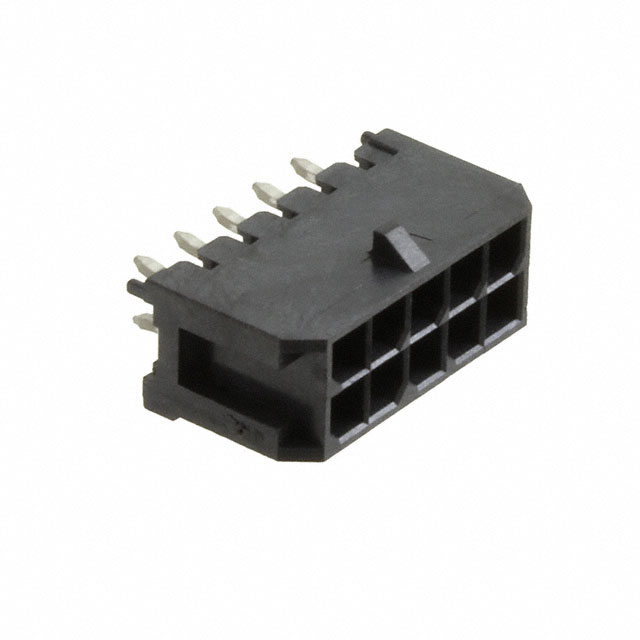

Amphenol ICC (Commercial Products) G881A10122TEU	Male Pin	250 V	10	2	0.118 in	3 mm	Board to Cable/Wire	3 mm	0.118 in	Locking Ramp	Shrouded - 4 Wall	0.39 in	9.91 mm	Square	Header	Through Hole	Liquid Crystal Polymer (LCP)	Black	Tin	Kinked Pin Solder	Board Guide	-40 C	105 ░C	UL94 V-0	0.126 "	3.2 mm	Copper Alloy	All

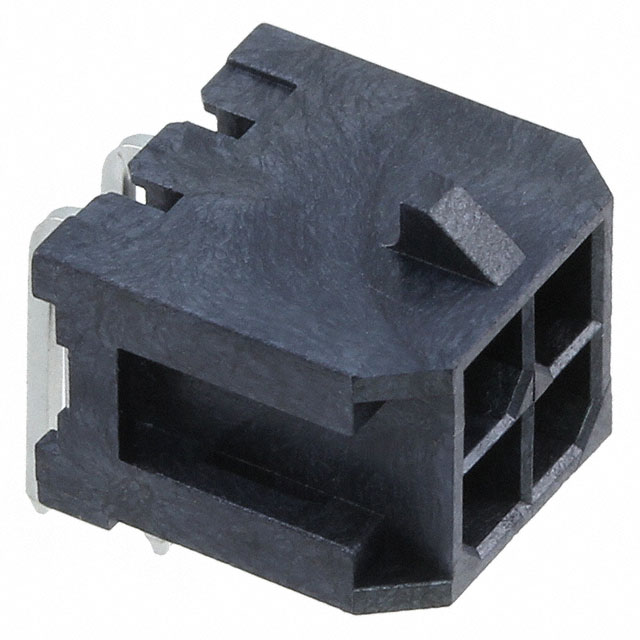

Amphenol ICC (Commercial Products) G881A04001TEU	Male Pin	250 V	4	2	0.118 in	3 mm	Board to Cable/Wire	3 mm	0.118 in	Locking Ramp	Shrouded - 4 Wall			Square	Header	Right Angle Through Hole	Liquid Crystal Polymer (LCP)	Black	Tin	Solder	Board Lock	-40 C	105 ░C	UL94 V-0	0.126 "	3.2 mm	Copper Alloy	All	2.54 µm	100 µin	100 çin	2.54 çm	6.8 mm	0.268 in
Amphenol ICC (Commercial Products) G881A16102T3EU	Male Pin	250 V	16	2	0.118 in	3 mm	Board to Cable/Wire	3 mm	0.118 in	Locking Ramp	Shrouded - 4 Wall	0.39 in	9.91 mm	Square	Header	Through Hole	Liquid Crystal Polymer (LCP)	Black	Tin	Solder	Board Guide	-40 C	105 ░C	UL94 V-0	0.126 "	3.2 mm	Copper Alloy	All

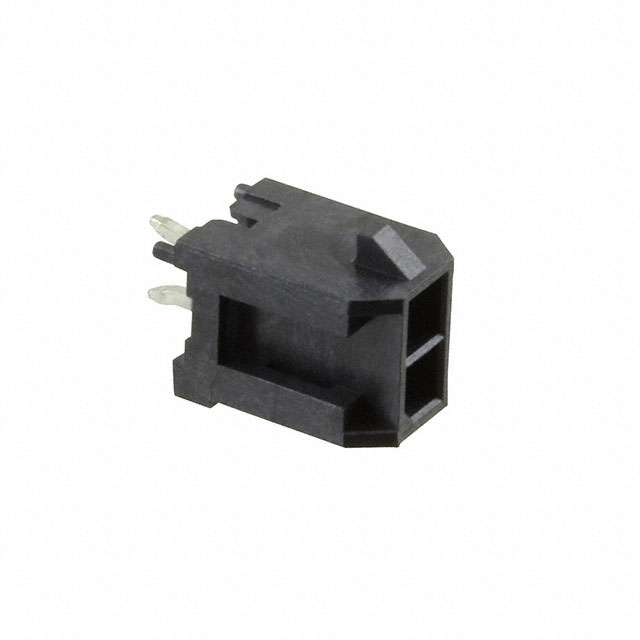

Amphenol ICC (Commercial Products) G881A02102TEU	Male Pin	250 V	2	2	0.118 in	3 mm	Board to Cable/Wire			Locking Ramp	Shrouded - 4 Wall	0.39 in	9.91 mm	Square	Header	Through Hole	Liquid Crystal Polymer (LCP)	Black	Tin	Kinked Pin Solder	Board Guide	-40 C	105 ░C	UL94 V-0	0.126 "	3.2 mm	Copper Alloy	All
Amphenol ICC (Commercial Products) G881A10102T3EU	Male Pin	250 V	10	2	0.118 in	3 mm	Board to Cable/Wire	3 mm	0.118 in	Locking Ramp	Shrouded - 4 Wall	0.39 in	9.91 mm	Square	Header	Through Hole	Liquid Crystal Polymer (LCP)	Black	Tin	Solder	Board Guide	-40 C	105 ░C	UL94 V-0	0.126 "	3.2 mm	Copper Alloy	All
