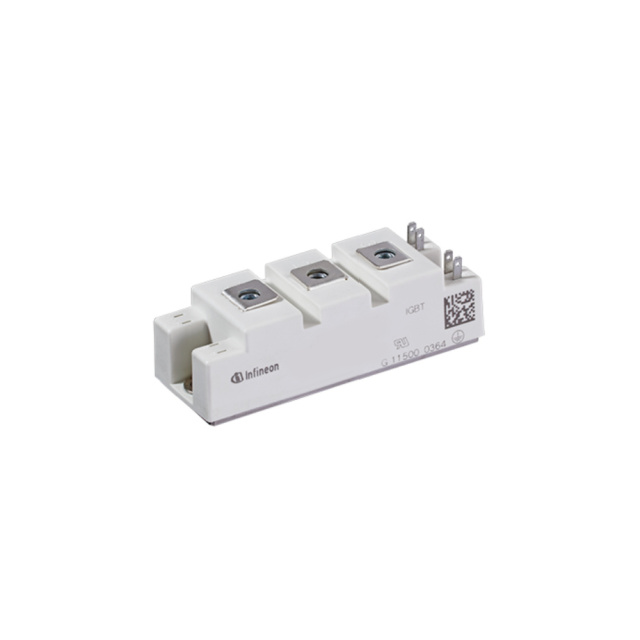

DF150R12 Series

Manufacturer: INFINEON

Catalog

IGBT MOD 1200V 150A 790W

Part	Power - Max [Max]	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Configuration	Current - Collector Cutoff (Max) [Max]	Mounting Type	NTC Thermistor	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	Package / Case	Supplier Device Package	Input Capacitance (Cies) @ Vce	Operating Temperature [Min]	Operating Temperature [Max]	Input
INFINEON DF150R12RT4HOSA1	790 W	Trench Field Stop	1200 V	Single Chopper	1 mA	Chassis Mount		2.15 V	150 A	Module	Module	9.3 nF	-40 C	150 °C	Standard
