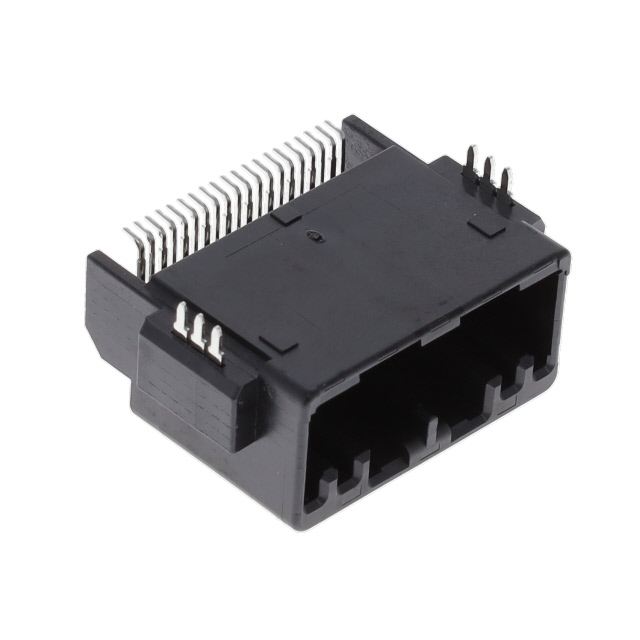

MX34R20H Series
Manufacturer: JAE Electronics
Catalog
CONN HEADER SMD R/A 20POS 2.2MM
| Part | Applications | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Insulation Color | Contact Length - Mating | Contact Length - Mating | Fastening Type | Termination | Contact Material | Number of Positions | Contact Type | Contact Shape | Current Rating (Amps) | Mounting Type | Number of Positions Loaded | Insulation Height | Insulation Height | Features | Contact Finish - Post | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Style | Insulation Material | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | 0.087 in | 2.2 mm | 85 °C | -40 C | Header | Black | 0.303 in | 7.7 mm | Locking Ramp | Solder | Copper Alloy | 20 | Male Pin | Square | 3 A | Right Angle Surface Mount | All | 13.8 mm | 0.543 in | Solder Retention | Tin | Shrouded - 4 Wall | 0.118 in | 3 mm | Board to Cable/Wire | Polyphenylene Sulfide (PPS) Glass Filled | 2 |
