FK.G3.SMB Series
Manufacturer: Taoglas Limited
Beta
⌘K

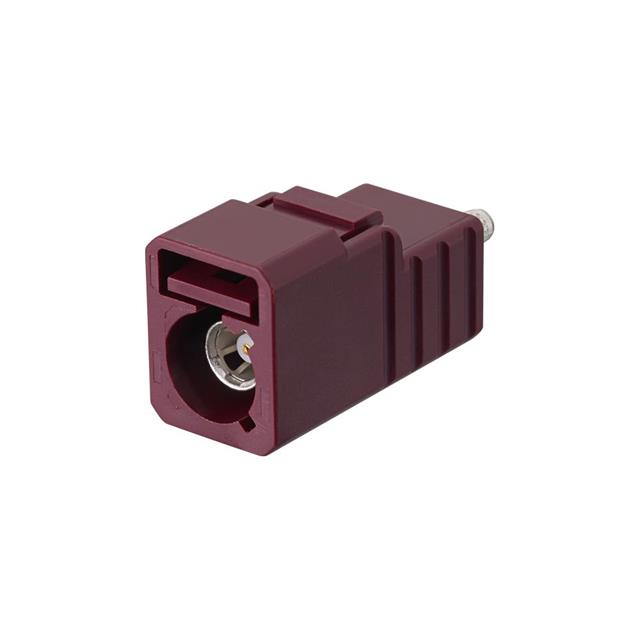

RF / COAXIAL CONNECTOR, FAKRA COAXIAL, STRAIGHT JACK, CRIMP, 50 OHM, RG174, RG316
| Part | Dielectric Material | Center Contact Plating | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Contact Termination | Cable Group | Center Contact Material | Impedance | Shield Termination | Features | Housing Color | Frequency - Max [Max] | Number of Ports | Connector Type | Mounting Type | Fastening Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taoglas Limited | Polytetrafluoroethylene (PTFE) | Gold | Nickel | 85 °C | -40 C | Brass | Crimp | 188 316 RG-174 | Brass | 50 Ohms | Crimp | Code D | Violet | 3 GHz | 1 | Female Socket Plug | Free Hanging (In-Line) | Snap-On | Fakra SMB |
