GFB0912 Series
Manufacturer: Delta Electronics
Beta
⌘K

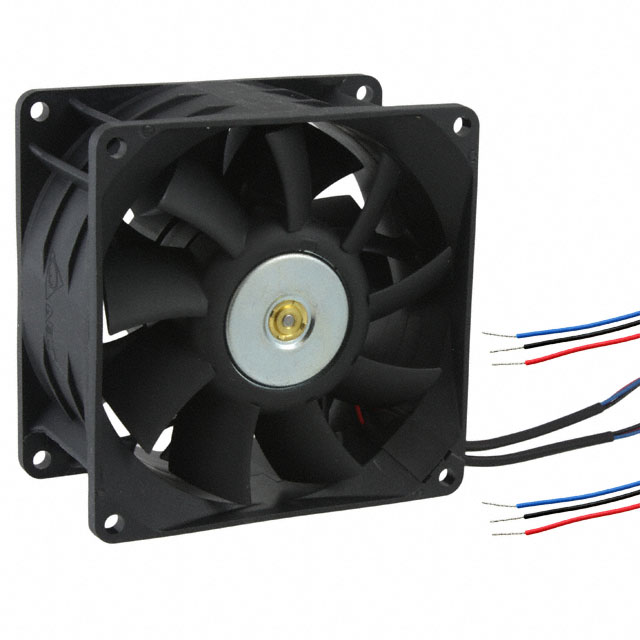

FAN AXIAL DUAL 92X50.8MM 12VDC
| Part | Lifetime @ Temp. | Material - Frame | Current Rating (Amps) | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Air Flow | Air Flow | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Static Pressure | Static Pressure | Noise | Approval Agency | Width [y] | Weight [custom] | Weight [custom] | Fan Type | RPM [custom] | RPM [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Bearing Type | Features | Power (Watts) | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70000 Hrs | Plastic | 1.3 A | Plastic | 13.8 VDC | 7 V | 103.1 CFM | 2.89 m³/min | 12 VDC | 92 mm | 92 mm | 162.2 Pa | 0.651 in H2O | 61.5 dB(A) | CE CSA UL VDE | 50.8 mm | 0.375 lb | 170.1 g | Tubeaxial (Dual) | 4100 RPM | 3700 RPM | 70 °C | -10 °C | Ball | Locked Rotor Protection Speed Sensor (Tach) | 15.6 W | 3 |
