IPS6041 Series
Manufacturer: INFINEON
Beta
⌘K
IC SWITCH IPS 1CH HI SIDE D2PAK
| Part | Switch Type | Voltage - Supply (Vcc/Vdd) | Output Configuration | Rds On (Typ) | Input Type | Fault Protection | Current - Output (Max) [Max] | Features | Output Type | Supplier Device Package | Mounting Type | Interface | Voltage - Load [Max] | Voltage - Load [Min] | Ratio - Input:Output | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | General Purpose | Not Required | High Side | 110 mOhm | Non-Inverting | Current Limiting (Fixed) Open Load Detect Over Temperature | 2.3 A | Auto Restart | N-Channel | D2PAK (SMD-220 5-Lead) | Surface Mount | On/Off | 28 V | 6 V | 1:1 | D2PAK (4 Leads + Tab) TO-263-5 TO-263BB | -40 °C | 150 °C | 1 | ||
 INFINEON | High Side | 110 mOhm | Non-Inverting | 1.6 A | 8-SOIC | Surface Mount | 28 V | 6 V | 8-SOIC | -40 C | 150 °C | 1 | 0.154 in | 3.9 mm | |||||||

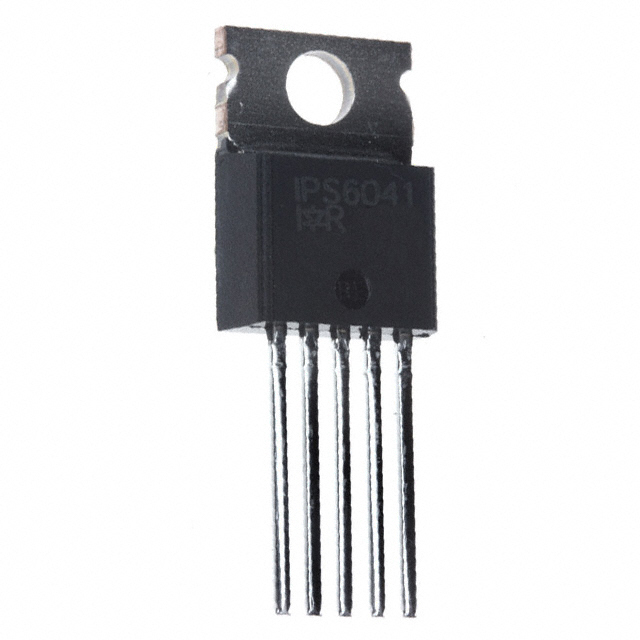

 INFINEON | High Side | 110 mOhm | Non-Inverting | 2.3 A | TO-220AB (5-LEAD) | Through Hole | 28 V | 6 V | TO-220-5 | -40 C | 150 °C | 1 |
