FS Series

Manufacturer: KEMET

Catalog

SUPERCAPACITORS / ULTRACAPACITORS 5.5V 0.22F -20/+80% LS=5.08MM

Part	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance [Max]	Tolerance [Min]	Termination	Capacitance	Voltage - Rated	Lead Spacing	Lead Spacing	Shelf Life	Thickness - Overall	Thickness - Overall [x]	Adhesive	Type	Material	Length	Length	Shape	Width	Width	Width [x]	Width [x]	Thickness - Overall [z]	Thickness - Overall [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing [x]	Lead Spacing [x]	Size / Dimension [diameter]	Size / Dimension [diameter]
KEMET FS0H224ZF	25 Ohm	-25 °C	70 °C	Through Hole	Can Radial	0.512 "	13 mm	80 %	-20 %	PC Pins	220 mF	5.5 V	0.2 in	5.08 mm
KEMET FS(75)-120X120T2900		-40 C	105 ░C												36 Months	0.09 mm	0.003 in	Non-Conductive Single Sided	Absorbing Sheet	Magnetic Powder Polymer	120 mm	4.724 in	Square	120 mm	4.724 "

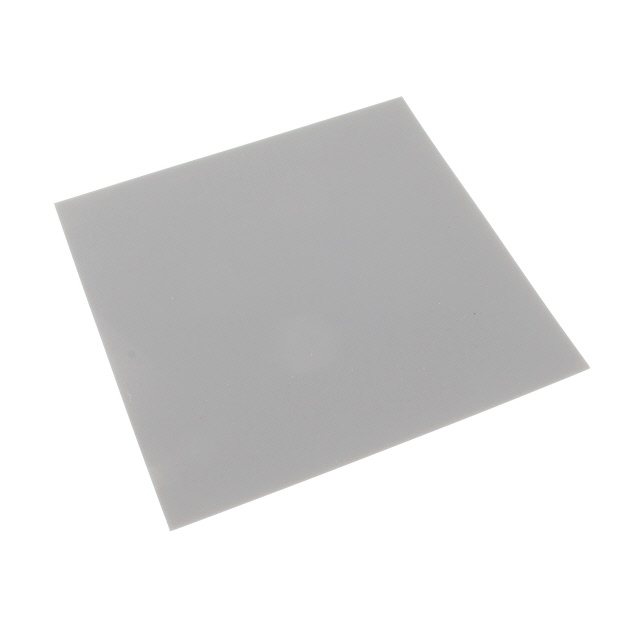

KEMET FS(100)-80X80T2900		-40 C	105 ░C												36 Months			Non-Conductive Single Sided	Absorbing Sheet	Magnetic Powder Polymer	0.08 m	3.15 "	Square			80 mm	3.15 in	0.004 "	0.11 mm
KEMET FS1B505ZF	4 Ohm	-25 °C	70 °C	Through Hole	Can Radial			80 %	-20 %	PC Pins	5 F	12 VDC																		60 mm	2.362 in	0.787 in	20 mm	1.764 in	44.8 mm
KEMET FS(100)-240X10MT2900		-40 C	105 ░C												36 Months			Non-Conductive Single Sided	Absorbing Sheet	Magnetic Powder Polymer	10 m	32.81 ft	Roll			240 mm	9.449 "	0.004 "	0.11 mm
