ADY300 Series

Manufacturer: Panasonic Electronic Components

Catalog

RELAY GEN PURPOSE DPST 8A 6V

Part	Coil Resistance	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Must Operate Voltage	Coil Type	Contact Material	Termination Style	Seal Rating	Load - Max Switching	Relay Type	Approval Agency	Release Time	Contact Form	Contact Rating (Current)	Operate Time	Must Release Voltage	Switching Voltage	Coil Voltage
Panasonic Electronic Components ADY30006	180 Ohms	Through Hole	70 °C	-40 C	33.3 mA	4.2 VDC	Non Latching	Gold (Au) Silver Tin Oxide (AgSnO)	PC Pin	Sealed - Fully	1000 W 2000 VA	General Purpose	CSA UR VDE	8 ms	DPST-NO/NC (1 Form A 1 Form B)	8 A	10 ms	0.6 VDC	125 VDC 250 VAC
Panasonic Electronic Components ADY30012	720 Ohms	Through Hole	70 °C	-40 C	16.6 mA	8.4 VDC	Non Latching	Gold (Au) Silver Tin Oxide (AgSnO)	PC Pin	Sealed - Fully	1000 W 2000 VA	General Purpose	CSA UR VDE	8 ms	DPST-NO/NC (1 Form A 1 Form B)	8 A	10 ms	1.2 VDC	125 VDC 250 VAC	12 VDC
Panasonic Electronic Components ADY30003	45 Ohms	Through Hole	70 °C	-40 C	66.6 mA	2.1 VDC	Non Latching	Gold (Au) Silver Tin Oxide (AgSnO)	PC Pin	Sealed - Fully	1000 W 2000 VA	General Purpose	CSA UR VDE	8 ms	DPST-NO/NC (1 Form A 1 Form B)	8 A	10 ms	0.3 VDC	125 VDC 250 VAC
Panasonic Electronic Components ADY30009	405 Ohms	Through Hole	70 °C	-40 C	22.2 mA	6.3 VDC	Non Latching	Gold (Au) Silver Tin Oxide (AgSnO)	PC Pin	Sealed - Fully	1000 W 2000 VA	General Purpose	CSA UR VDE	8 ms	DPST-NO/NC (1 Form A 1 Form B)	8 A	10 ms	0.9 VDC	125 VDC 250 VAC	9 VDC

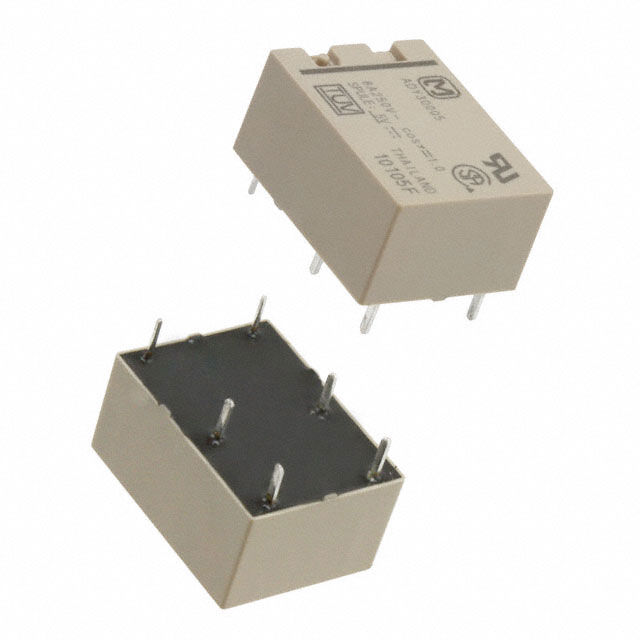

Panasonic Electronic Components ADY30005	125 Ohms	Through Hole	70 °C	-40 C	40 mA	3.5 VDC	Non Latching	Silver Tin Oxide (AgSnO)	PC Pin	Sealed - Fully	1000 W 2000 VA	General Purpose	CSA UR VDE	8 ms	DPST-NO/NC (1 Form A 1 Form B)	8 A	10 ms	0.5 VDC	125 VDC 250 VAC	5 VDC
