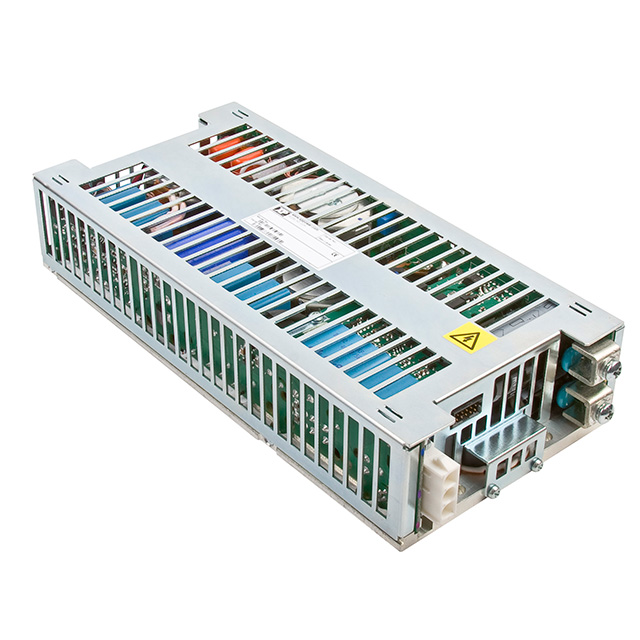

CCH400 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 24V 411W
| Part | Minimum Load Required | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Standard Number | Features | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Type | Mounting Type | Applications | Current - Output 1 | Power (Watts) | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 264 VAC | 90 VAC | 90 % | 62368-1 | Adjustable Output Load Sharing PFC Remote On/Off Standby Output Universal Input | 24 V | 102.1 mm | 4.02 in | 1.69 in | 42.9 mm | 214.1 mm | 8.43 " | CB TUV UL | 85 °C | -40 C | 3000 V | Enclosed | Chassis Mount | ITE (Commercial) | 17 A | 411 W | 1 | |
XP Power | 264 VAC | 90 VAC | 90 % | 62368-1 | Adjustable Output Load Sharing PFC Remote On/Off Standby Output Universal Input | 48 V | 102.1 mm | 4.02 in | 1.69 in | 42.9 mm | 214.1 mm | 8.43 " | CB TUV UL | 85 °C | -40 C | 3000 V | Enclosed | Chassis Mount | ITE (Commercial) | 411 W | 1 | ||
XP Power | 264 VAC | 90 VAC | 90 % | 62368-1 | Adjustable Output Load Sharing PFC Remote On/Off Standby Output Universal Input | 12 V | 102.1 mm | 4.02 in | 1.69 in | 42.9 mm | 214.1 mm | 8.43 " | CB TUV UL | 85 °C | -40 C | 3000 V | Enclosed | Chassis Mount | ITE (Commercial) | 34 A | 411 W | 1 |
