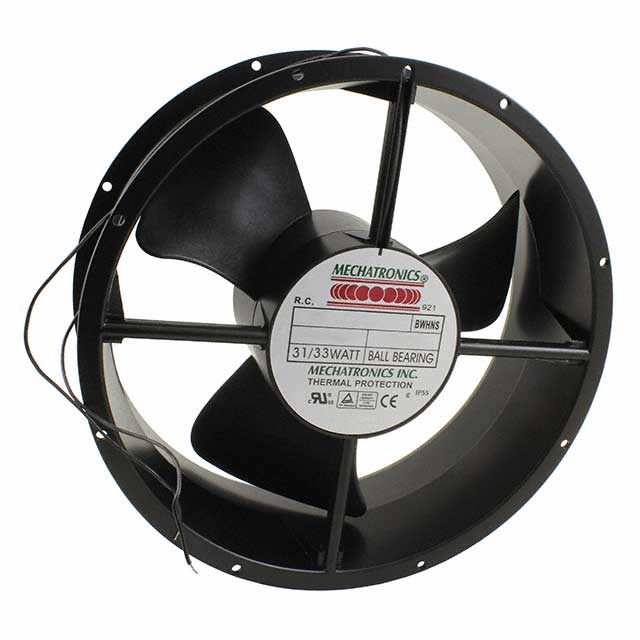

UF25G Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K
FAN AXIAL 254X89MM 115VAC
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Termination | Air Flow | Air Flow | Static Pressure | Static Pressure | Features | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Width [y] | Weight | Weight | Power (Watts) | Size / Dimension | Size / Dimension [diameter] | Bearing Type | RPM | Approval Agency | Fan Type | Voltage - Rated | Ingress Protection | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 0.29 A | Aluminum | 2 | 15.4 m³/min | 550 CFM | 99.6 Pa | 0.4 in H2O | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | -40 C | 70 °C | 70 °C | -40 °C | 55 dB(A) | 89 mm | 4.1 lbs | 1.9 kg | 33 W | Round | 10 in | Ball | 1650 RPM | CE cUL TUV UL | Tubeaxial | 115 VAC | ||
 Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 140 mA | Aluminum | 15.4 m³/min | 550 CFM | 99.6 Pa | 0.4 in H2O | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | -40 C | 70 °C | 70 °C | -40 °C | 55 dB(A) | 89 mm | 4.1 lbs | 1.9 kg | 33 W | Round | 10 in | Ball | 1650 RPM | CE cUL TUV UL | Tubeaxial | 230 VAC | IP55 - Dust Protected Water Resistant | 2 Wire Leads | |
Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 140 mA | Aluminum | 2 | 15.4 m³/min | 550 CFM | 99.6 Pa | 0.4 in H2O | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | -40 C | 70 °C | 70 °C | -40 °C | 55 dB(A) | 89 mm | 4.1 lbs | 1.9 kg | 33 W | Round | 10 in | Ball | 1650 RPM | CE cUL TUV UL | Tubeaxial | 230 VAC | ||
Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 0.45 A | Aluminum | 2 | 22.74 m³/min | 812 CFM | 204.3 Pa | 0.82 in H2O | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | -40 C | 70 °C | 70 °C | -40 °C | 65 dB | 89 mm | 4.1 lbs | 1.9 kg | 98 W | Round | 10 in | Ball | 3200 RPM | CE cETL ETL TUV | Tubeaxial | 230 VAC | ||
Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 140 mA | Aluminum | 15.4 m³/min | 550 CFM | 99.6 Pa | 0.4 in H2O | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | -40 C | 70 °C | 70 °C | -40 °C | 55 dB(A) | 89 mm | 4.1 lbs | 1.9 kg | 33 W | Round | 10 in | Ball | 1650 RPM | CE cUL TUV UL | Tubeaxial | 230 VAC | 2 Wire Leads | ||
Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 140 mA | Aluminum | 3 Terminals | 15.4 m³/min | 550 CFM | 99.6 Pa | 0.4 in H2O | Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP) | -40 C | 70 °C | 70 °C | -40 °C | 55 dB(A) | 89 mm | 4.1 lbs | 1.9 kg | 33 W | Round | 10 in | Ball | 1650 RPM | CE cUL TUV UL | Tubeaxial | 230 VAC | ||
 Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 660 mA | Aluminum | 19.04 mł/min | 680 CFM | 92.2 Pa | 0.37 in H2O | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | -40 C | 70 °C | 70 °C | -40 °C | 62 dB(A) | 89 mm | 4.1 lbs | 1.9 kg | 75 W | Round | 10 in | Ball | 2600 RPM | CE cUL TUV UL | Tubeaxial | 115 VAC | 2 Wire Leads | ||
Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 140 mA | Aluminum | 2 | 15.4 m³/min | 550 CFM | 99.6 Pa | 0.4 in H2O | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | -40 C | 70 °C | 70 °C | -40 °C | 55 dB(A) | 89 mm | 4.1 lbs | 1.9 kg | 33 W | Round | 10 in | Ball | 1650 RPM | CE cUL TUV UL | Tubeaxial | 230 VAC | IP55 - Dust Protected Water Resistant | |
Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 0.29 A | Aluminum | 2 | 15.4 m³/min | 550 CFM | 99.6 Pa | 0.4 in H2O | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | -40 C | 70 °C | 70 °C | -40 °C | 55 dB(A) | 89 mm | 4.1 lbs | 1.9 kg | 33 W | Round | 10 in | Ball | 1650 RPM | CE cUL TUV UL | Tubeaxial | 115 VAC | IP55 - Dust Protected Water Resistant | |
Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 140 mA | Aluminum | 15.4 m³/min | 550 CFM | 99.6 Pa | 0.4 in H2O | Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP) | -40 C | 70 °C | 70 °C | -40 °C | 55 dB(A) | 89 mm | 4.1 lbs | 1.9 kg | 33 W | Round | 10 in | Ball | 1650 RPM | CE cUL TUV UL | Tubeaxial | 230 VAC | IP55 - Dust Protected Water Resistant | 2 Wire Leads |
