BM6104FV-C Series

Isolation Voltage 2500Vrms 1ch Gate Driver Providing Galvanic Isolation

Catalog

Isolation Voltage 2500Vrms 1ch Gate Driver Providing Galvanic Isolation

Part	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Common Mode Transient Immunity (Min) [Min]	Current - Peak Output	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Channels	Package / Case	Mounting Type	Voltage - Isolation	Qualification	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Technology

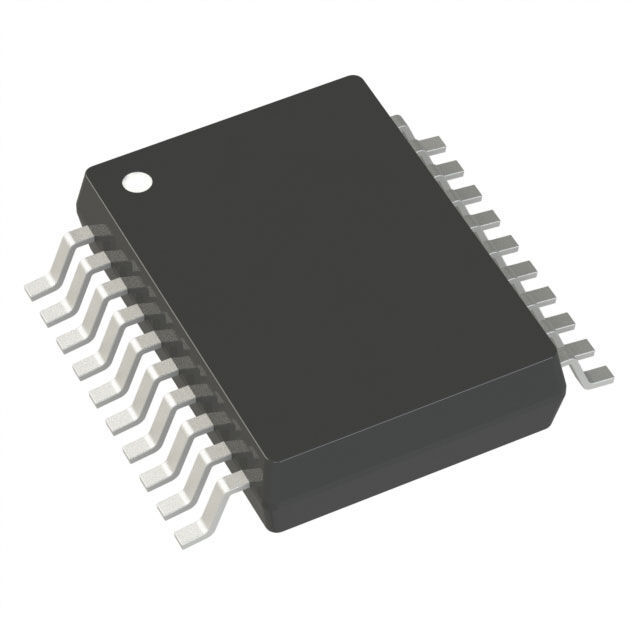

Rohm Semiconductor BM6104FV-CE2	Automotive	125 °C	-40 °C	20-SSOP-BW	100 V/ns	1 A 5 A	24 V	10 V	50 ns	50 ns	1	20-SSOP	Surface Mount	2500 Vrms	AEC-Q100	150 ns	150 ns	Magnetic Coupling

Catalog

Isolation Voltage 2500Vrms 1ch Gate Driver Providing Galvanic Isolation

Description

The BM6104FV-C is a gate driver with isolation voltage 2500Vrms, I/O delay time of 150ns, and minimum input pulse width of 90ns, and incorporates the fault signal output functions, undervoltage lockout (UVLO) function, and short current protection (SCP, DESAT) function.For sale of this product, please contact the specifications in our sales office. Currently, we don't sell this on the internet distributors now.
