781XAX Series

Catalog

781R PLUG-IN RELAY, SPDT, 15A, 1

Part	Coil Resistance	Contact Material	Contact Rating (Current)	Release Time	Mounting Type	Contact Form	Load - Max Switching	Coil Type	Must Release Voltage	Features	Termination Style	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Relay Type	Coil Current	Switching Voltage	Operate Time
SCHNEIDER ELECTRIC 781XAXRM4L12D	115 Ohms	Gold (Au) Silver (Ag)	15 A	20 ms	Socketable	SPDT (1 Form C)	420 W 4500 VA	Non Latching	1.2 VDC	Test Button	Plug In	12 VDC	55 °C	-40 C	9.6 VDC	General Purpose	104.3 mA	28 VDC 300 VAC	20 ms
SCHNEIDER ELECTRIC 781XAXRM4L24D	450 Ohms	Gold (Au) Silver (Ag)	15 A	20 ms	Socketable	SPDT (1 Form C)	420 W 4500 VA	Non Latching	2.4 VDC	Test Button	Plug In	24 VDC	55 °C	-40 C	19.2 VDC	General Purpose	53.3 mA	28 VDC 300 VAC	20 ms
SCHNEIDER ELECTRIC 781XAXRC12D	115 Ohms	Gold (Au) Silver (Ag)	15 A		Socketable	SPDT (1 Form C)	420 W 4500 VA	Non Latching	1.2 VDC		Plug In	12 VDC	55 °C	-40 C	9.6 VDC	General Purpose	104.3 mA	28 VDC 300 VAC	25 ms

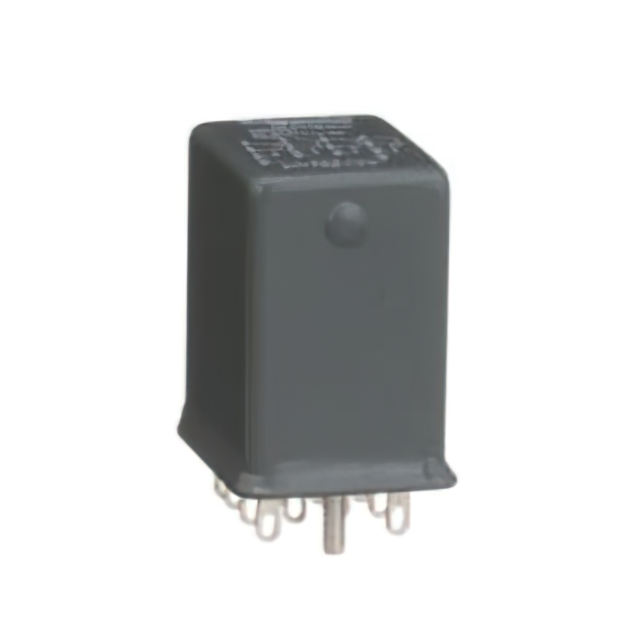

SCHNEIDER ELECTRIC 781XAXRM4L-24A	177 Ohms	Gold (Au) Silver (Ag)	15 A	20 ms	Socketable	SPDT (1 Form C)	420 W 4500 VA	Non Latching	3.6 VAC	Test Button	Plug In	24 VAC	55 °C	-40 C	19.2 VAC	General Purpose	135.6 mA	28 VDC 300 VAC	20 ms
SCHNEIDER ELECTRIC 781XAXRM4L120A	4.43 kOhms	Gold (Au) Silver (Ag)	15 A	20 ms	Socketable	SPDT (1 Form C)	420 W 4500 VA	Non Latching	18 VAC	Test Button	Plug In	120 VAC	55 °C	-40 C	96 VAC	General Purpose	27.1 mA	28 VDC 300 VAC	20 ms
