2101549 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

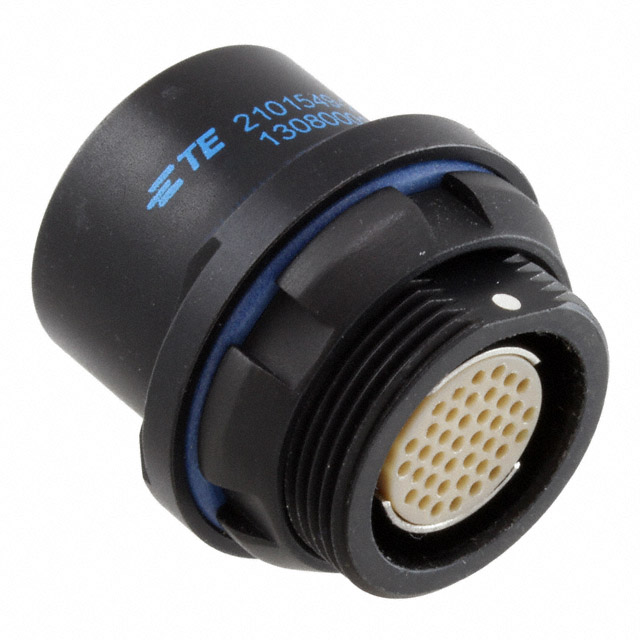

RECEPTACLE,40 POS,CIRCULAR HD,PCB,POL2
| Part | Mounting Feature | Orientation [custom] | Orientation [custom] | Number of Positions | Connector Type | Mounting Type | Color | Primary Material | Contact Finish - Mating | Fastening Type | Shell Finish | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Ingress Protection | Shell Material | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Bulkhead - Front Side Nut | Keyed | Dual | 40 | Receptacle Female Sockets | Panel Mount | Black | Metal | Gold | Push-Pull | Black Chromium | Solder | -65 ░C | 125 °C | 5 | IP68 - Dust Tight Waterproof | Copper Alloy | |
 TE Connectivity AMP Connectors | Bulkhead - Front Side Nut | 40 | Receptacle Female Sockets | Panel Mount | Black | Metal | Gold | Push-Pull | Black Chromium | Solder | -65 ░C | 125 °C | 5 | IP68 - Dust Tight Waterproof | Copper Alloy | Keyed |
