RT8092 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC REG BUCK PROG 4A 15WLCSP
| Part | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Voltage - Input (Min) [Min] | Frequency - Switching | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Min/Fixed) [Min] | Output Configuration | Number of Outputs | Function | Current - Output | Topology | Output Type | Voltage - Input (Max) [Max] | Voltage - Output (Max) [Max] | Synchronous Rectifier | Mounting Type | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Contents | Regulator Topology | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 15-WLCSP | 2 | 1.2 | 2.5 V | 3 MHz | 15-UFBGA WLCSP | 85 C | -40 ¯C | 0.3 V | Positive | 1 | Step-Down | 4 A | Buck | Programmable | 5.5 V | 5.5 V | Surface Mount | ||||||||||||

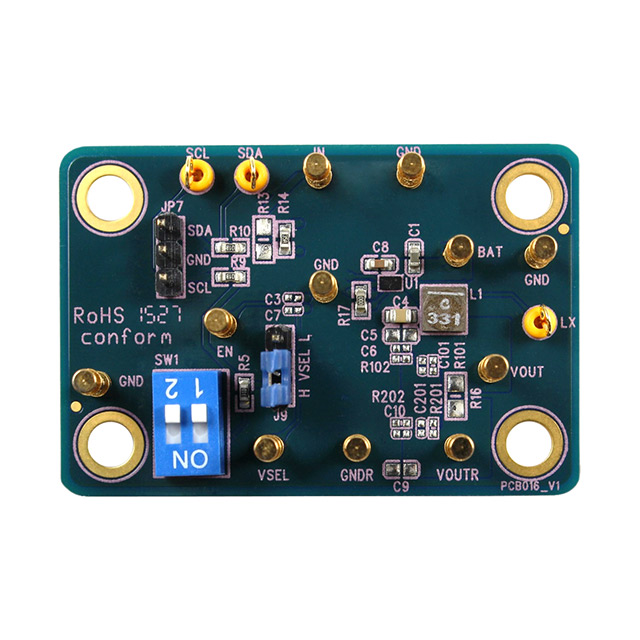

 Richtek USA Inc. | 3 MHz | 4 A | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | DC/DC Step Down | 5.5 V | 2.5 V | 1 V | Board(s) | Buck | RT8092 |
