HF759 Series

Catalog

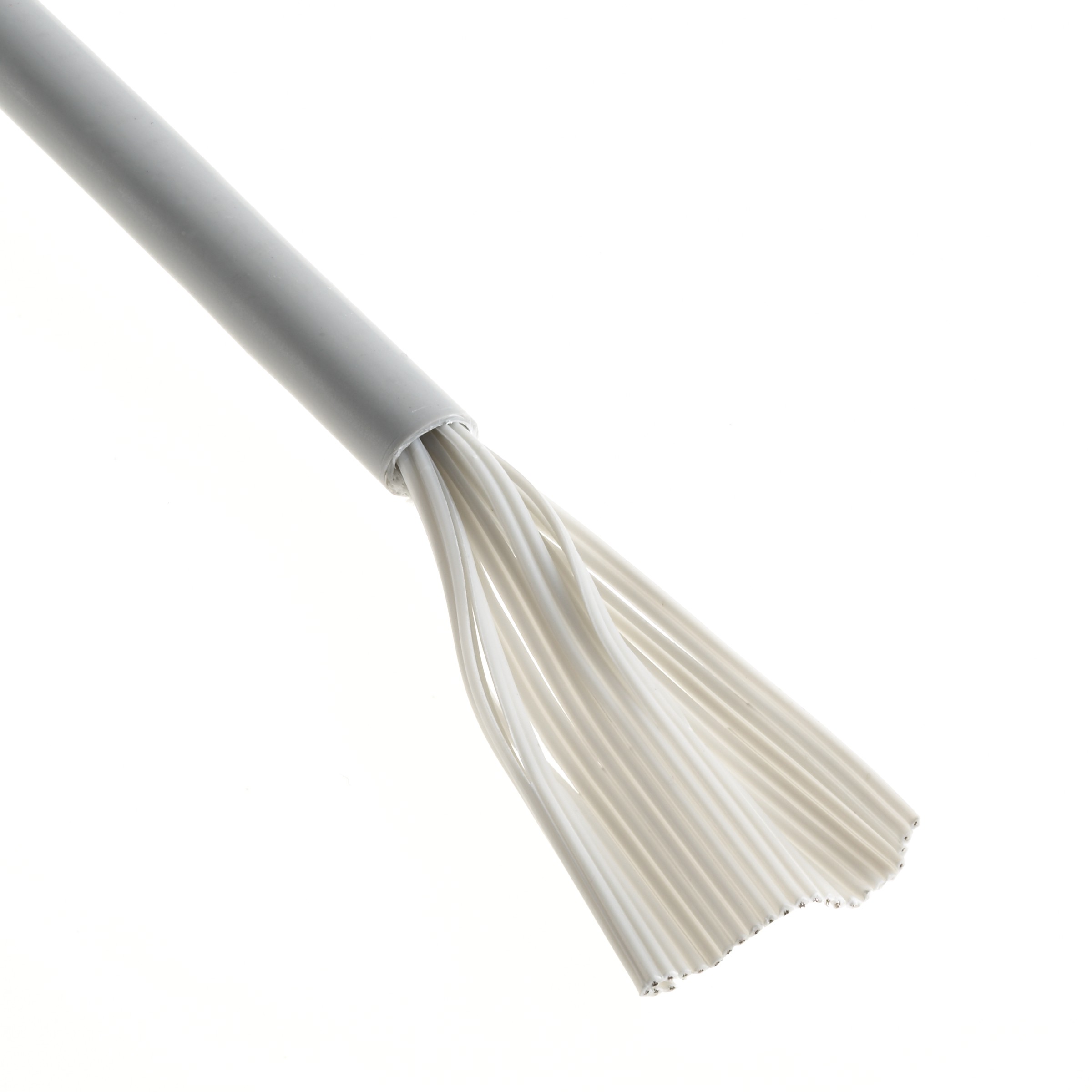

CBL RIBN 60COND 0.05 GRAY

Part	First Conductor Mark	Insulation Resistance	Conductor Material	Jacket Color	Jacket (Insulation) Material	Features	Ratings	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Shielding	Ribbon Width [custom]	Ribbon Width [custom]	Voltage	Pitch	Pitch	Number of Conductors	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors [custom]	Length [x]	Length [x]	Length
3M Electronic Specialty HF759/60	Blue	10 GOhm	Copper Tinned	Gray	Polyolefin (PO)	Zippable	UL Style 22170	Flat Cable Round Jacket	36 AWG	7 Strands	275 ft	83.82 m	Unshielded	74.93 mm	2.95 in	150 V	0.05 in	1.27 mm	60	28 AWG	75 ░C	-10 °C
3M Electronic Specialty HF759/50	Blue	10 GOhm	Copper Tinned	Gray	Polyolefin (PO)	Zippable	UL Style 22170	Flat Cable Round Jacket	36 AWG	7 Strands	275 ft	83.82 m	Unshielded	62.23 mm	2.45 in	150 V	0.05 in	1.27 mm	50	28 AWG	75 ░C	-10 °C
3M Electronic Specialty HF759/20	Blue	10 GOhm	Copper Tinned	Gray	Polyolefin (PO)	Zippable	UL Style 22170	Flat Cable Round Jacket	36 AWG	7 Strands	275 ft	83.82 m	Unshielded	24.13 mm	0.95 in	150 V	0.05 in	1.27 mm	20	28 AWG	75 ░C	-10 °C
3M Electronic Specialty HF759/40	Blue	10 GOhm	Copper Tinned	Gray	Polyolefin (PO)	Zippable	UL Style 22170	Flat Cable Round Jacket	36 AWG	7 Strands	275 ft	83.82 m	Unshielded	49.53 mm	1.95 in	150 V	0.05 in	1.27 mm	40	28 AWG	75 ░C	-10 °C
3M Electronic Specialty HF759/10SF	Blue	10 GOhm	Copper Tinned	Gray	Polyolefin (PO)	Splice Free Zippable	UL Style 22170	Flat Cable Round Jacket	36 AWG	7 Strands	275 ft	83.82 m	Unshielded	11.43 mm	0.45 in	150 V	0.05 in	1.27 mm		28 AWG	75 ░C	-10 °C	10
3M Electronic Specialty HF759/26	Blue	10 GOhm	Copper Tinned	Gray	Polyolefin (PO)	Zippable	UL Style 22170	Flat Cable Round Jacket	36 AWG	7 Strands	275 ft	83.82 m	Unshielded	31.75 mm	1.25 in	150 V	0.05 in	1.27 mm	26	28 AWG	75 ░C	-10 °C
3M Electronic Specialty HF759/37	Blue	10 GOhm	Copper Tinned	Gray	Polyolefin (PO)	Zippable	UL Style 22170	Flat Cable Round Jacket	36 AWG	7 Strands	275 ft	83.82 m	Unshielded	45.72 mm	1.8 in	150 V	0.05 in	1.27 mm	37	28 AWG	75 ░C	-10 °C
3M Electronic Specialty HF759/14	Blue	10 GOhm	Copper Tinned	Gray	Polyolefin (PO)	Zippable	UL Style 22170	Flat Cable Round Jacket	36 AWG	7 Strands	275 ft	83.82 m	Unshielded	16.51 mm	0.65 in	150 V	0.05 in	1.27 mm	14	28 AWG	75 ░C	-10 °C
3M Electronic Specialty HF759/36	Blue	10 GOhm	Copper Tinned	Gray	Polyolefin (PO)	Zippable	UL Style 22170	Flat Cable Round Jacket	36 AWG	7 Strands	275 ft	83.82 m	Unshielded	44.45 mm	1.75 in	150 V	0.05 in	1.27 mm	36	28 AWG	75 ░C	-10 °C
3M Electronic Specialty HF759/20SF	Blue	10 GOhm	Copper Tinned	Gray	Polyolefin (PO)	Splice Free Zippable	UL Style 22170	Flat Cable Round Jacket	36 AWG	7 Strands	10 ft 25 ft 100 ' 275 ft	3.05 m 7.62 m 30.48 m 83.82 m	Unshielded	24.13 mm	0.95 in	150 V	0.05 in	1.27 mm	20	28 AWG	75 ░C	-10 °C		50 ft	15.24 m	Enter Number of Feet in Order Quantity
