CLF-D Series

Catalog

POWER INDUCTORS - SMD 6.8UH 0.022OHMS 3.1A 30% AEC-Q200

Part	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Type	Inductance	Ratings	Current Rating (Amps)	Inductance Frequency - Test	Tolerance	Mounting Type	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Saturation (Isat)	Shielding	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max)	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
TDK Corporation CLF7045NIT-6R8N-D	Ferrite	-55 C	150 °C	Drum Core Wirewound	6.8 µH	AEC-Q200	3.1 A	100 kHz	30 %	Surface Mount	29 mOhm	0.276 in	7 mm	0.291 in	7.4 mm	3.1 A	Shielded	Nonstandard	0.189 "	4.8 mm
TDK Corporation CLF5030NIT-100M-D	Ferrite	-55 C	150 °C	Drum Core Wirewound	10 µH	AEC-Q200	1.6 A	100 kHz	20 %	Surface Mount		0.197 "	5 mm	0.209 "	5.3 mm	1.6 A	Shielded	Nonstandard			114 mOhm	0.118 "	3 mm
TDK Corporation CLF6045T-3R3N-D	Ferrite	-40 C	150 °C	Drum Core Wirewound	3.3 µH	AEC-Q200	3.5 A	100 kHz	30 %	Surface Mount		0.232 in	5.9 mm	0.244 "	6.2 mm	3.1 A	Shielded	Nonstandard	0.189 "	4.8 mm	24.7 mOhm
TDK Corporation CLF7045T-1R0N-D	Ferrite	-40 C	150 °C	Drum Core Wirewound	1 µH	AEC-Q200	5.2 A	100 kHz	30 %	Surface Mount		0.272 in	6.9 mm	0.283 "	7.2 mm	8.9 A	Shielded	Nonstandard	0.189 "	4.8 mm	12.48 mOhm
TDK Corporation CLF7045NIT-4R7N-D	Ferrite	-55 C	150 °C	Drum Core Wirewound	4.7 ÁH	AEC-Q200	4.1 A	100 kHz	30 %	Surface Mount		0.276 in	7 mm	0.291 in	7.4 mm	4.1 A	Shielded	Nonstandard	0.189 "	4.8 mm	23 mOhm
TDK Corporation CLF7045T-151M-D	Ferrite	-40 C	150 °C	Drum Core Wirewound	150 µH	AEC-Q200	0.61 A	100 kHz	20 %	Surface Mount		0.272 in	6.9 mm	0.283 "	7.2 mm	670 mA	Shielded	Nonstandard	0.189 "	4.8 mm	576 mOhm
TDK Corporation CLF6045T-331M-D	Ferrite	-40 C	150 °C	Drum Core Wirewound	330 µH	AEC-Q200	0.44 A	100 kHz	20 %	Surface Mount		0.232 in	5.9 mm	0.244 "	6.2 mm	350 mA	Shielded	Nonstandard	0.189 "	4.8 mm	1.164 Ohm
TDK Corporation CLF10060NIT-220M-D	Ferrite	-55 C	150 °C	Drum Core Wirewound	22 µH	AEC-Q200	2.65 A	100 kHz	20 %	Surface Mount		0.394 in	10 mm	0.398 in	10.1 mm	2.65 A	Shielded	Nonstandard	0.248 "		51.6 mOhm			6.3 mm

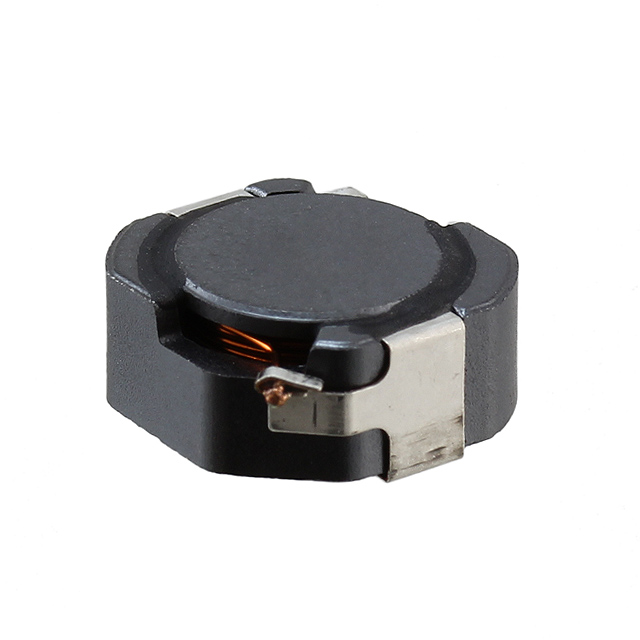

TDK Corporation CLF12555T-100M-D	Ferrite	-40 C	150 °C	Drum Core Wirewound	10 µH	AEC-Q200	3.9 A	100 kHz	20 %	Surface Mount		0.476 in	12.1 mm	0.492 "	12.5 mm	6.7 A	Shielded	Nonstandard	0.23 in		25.2 mOhm			5.85 mm
TDK Corporation CLF6045T-150M-D	Ferrite	-40 C	150 °C	Drum Core Wirewound	15 µH	AEC-Q200	2 A	100 kHz	20 %	Surface Mount		0.232 in	5.9 mm	0.244 "	6.2 mm		Shielded	Nonstandard	0.189 "	4.8 mm	66 mOhm
